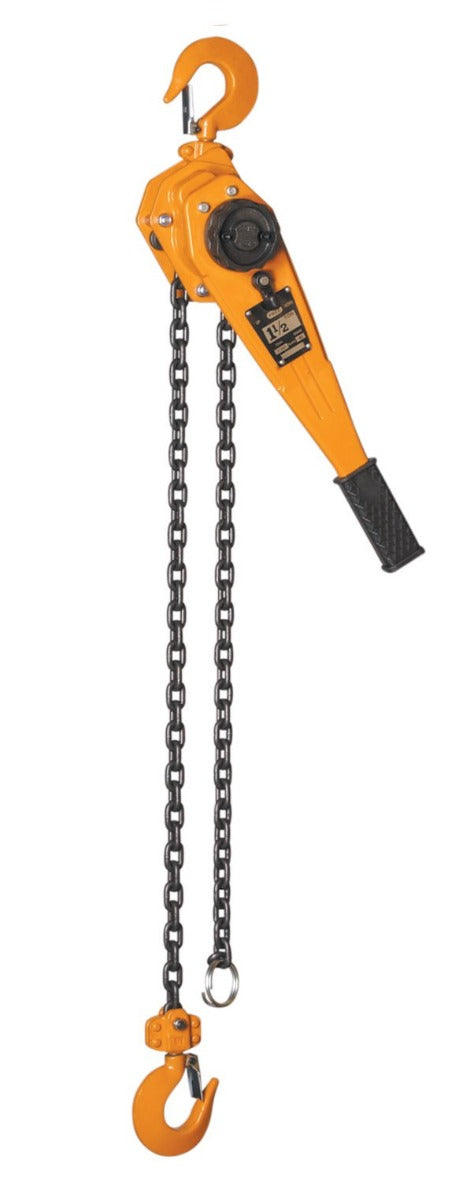

MAGNA Lifting Products 1.5 Ton Lever Hoist, 15 ft. Lift LH15015

The MAGNA LH15015 is a standard-profile 1.5 Ton (3,300 lbs) lever hoist equipped with 15 feet of lift, designed to be the workhorse of any rigging fleet. Built with a heavy-duty steel frame and gear case, it withstands the rigors of daily use in construction, forestry, and heavy manufacturing. The unit utilizes a single fall of 7.1mm Grade 80 alloy chain, providing high strength without excessive weight.

Designed for reliability in any climate, this hoist is pre-lubricated with low-temperature grease that remains effective down to -45°C (-49°F), preventing brake seizure in freezing weather. It features a fully repairable design, allowing for the replacement of wear parts like brake discs and pawls. The Weston-style load brake ensures positive load control, and the unit is factory tested to 150% of its rated capacity for maximum safety.

Features & Benefits

• Robust Capacity: Lifts 3,300 lbs utilizing high-strength Grade 80 alloy chain.
• Repairable Architecture: Designed for easy maintenance and long service life.
• Cold Weather Ready: Lubricated for performance in temperatures as low as -45°C (-49°F).
• Rigorous Testing: Proof loaded to 150% of WLL (4,950 lbs) for safety assurance.
• Secure Braking: Mechanical load brake holds the load firmly at any height.
• Standard Leverage: 15.35-inch handle provides optimal mechanical advantage.

Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Chain Bag, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamp)

Specifications

• Model Number: LH15015
• Working Load Limit (WLL): 1.5 Ton (3,300 lbs)
• Standard Lift: 15 ft.
• Load Chain Dimensions: 7.1 x 21.0 mm
• Load Chain Grade: Grade 80
• Number of Falls: 1
• Pull to Lift Full Load: 63 lbs
• Headroom (Dimension C): 13.00 in.
• Handle Length (Dimension D): 15.35 in.
• Hook Throat Opening (Dimension G): 1.30 in.
• Net Weight: 29.4 lbs
