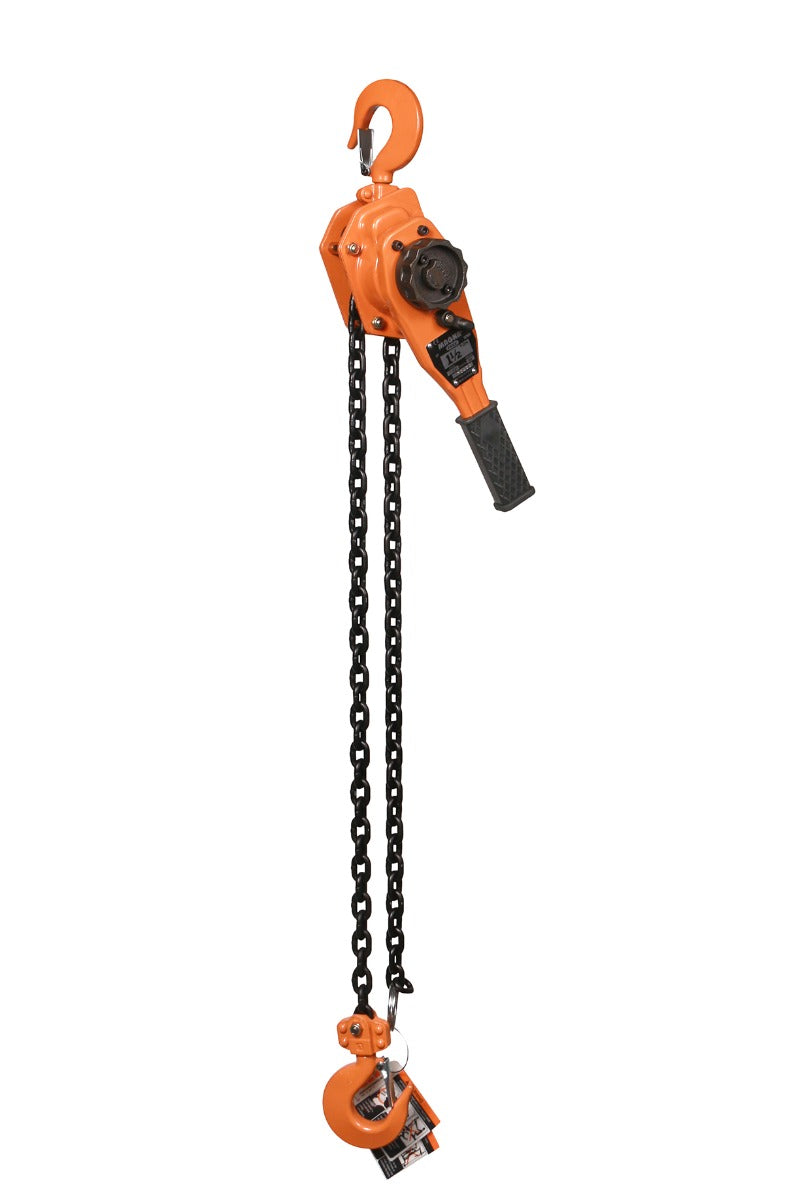

MAGNA Lifting Products 1.5 Ton Compact Lever Hoist, 10 ft. Lift LH15010C

The MAGNA LH15010C 1.5 Ton Compact Lever Hoist combines the 3,300 lb capacity of the standard model with a space-saving chassis and a 10-foot reach. This "Compact" model features an 11-inch handle, significantly shorter than the standard 15.4-inch handle, allowing for full 360-degree rotation in tight nacelles, crawlspaces, and between pipe racks. While the shorter handle requires a higher pull force (84 lbs), it enables rigging in areas that are simply inaccessible to larger tools.

Despite its small size, the LH15010C is a heavy-duty industrial tool. It utilizes the same high-strength 7.1mm Grade 80 chain and robust Weston brake as the standard model. It is load tested to 150% capacity and built with cold-weather grease for -45°C performance. For specialized maintenance teams working in constrained environments, this hoist offers the perfect balance of power, reach, and compact design.

Features & Benefits

• Compact Design: Short 11" handle for use in confined spaces.
• 10-Foot Reach: Extended lift capability for overhead work.
• High Capacity: 1.5 Ton WLL in a small package.
• 150% Proof Test: Rigorously safety tested to 4,950 lbs.
• Cold Weather Specs: Grease rated for -45°C operation.
• Durable: Steel construction and alloy hooks.

Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Chain Bag, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamp)

Specifications

• Model Number: LH15010C
• Working Load Limit (WLL): 1.5 Ton (3,300 lbs)
• Standard Lift: 10 ft.
• Load Chain Dimensions: 7.1 x 21.0 mm
• Load Chain Grade: Grade 80 Alloy
• Number of Falls: 1
• Pull to Lift Full Load: 84 lbs
• Headroom (Dimension C): 13.0 in.
• Handle Length (Dimension D): 11.0 in.
• Hook Throat Opening (Dimension G): 1.3 in.
• Net Weight: 24.7 lbs
