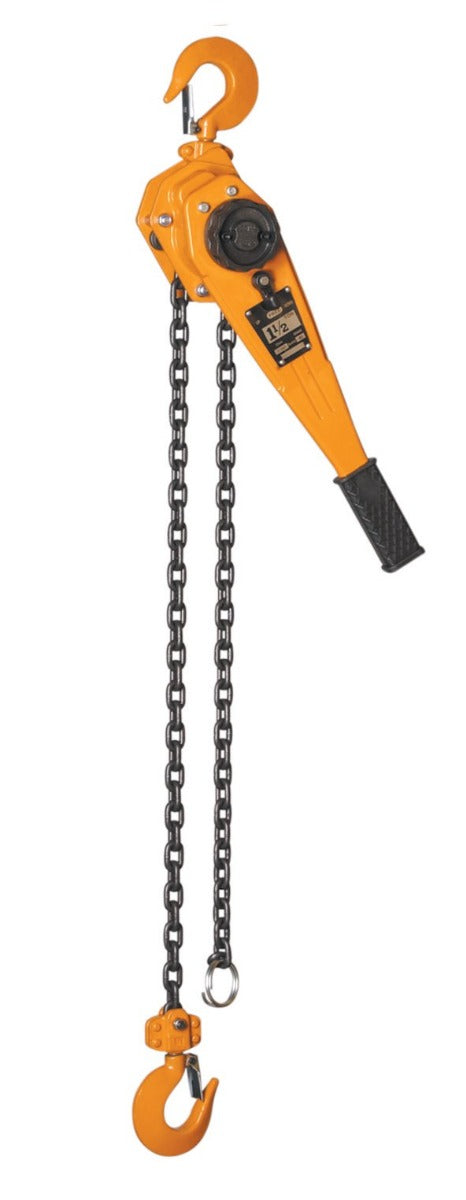

MAGNA Lifting Products 1.5 Ton Lever Hoist, 10 ft. Lift LH15010

The MAGNA LH15010 1.5 Ton Lever Hoist is the extended-reach version of MAGNA's popular "Standard" 1.5-ton model. With 10 feet of lift, it provides the versatility needed for erecting steel, pulling engines, or securing loads on flatbeds. The standard 15.4-inch handle provides excellent leverage, allowing the operator to lift the full 3,300 lb load with just 63 lbs of force. This ergonomic advantage makes it suitable for repetitive lifting tasks where operator comfort is key.

The hoist features a rugged steel body and 7.1mm Grade 80 alloy chain. Its Weston-style brake is fully enclosed to prevent contamination and ensure consistent holding power. Like all MAGNA lever hoists, the LH15010 is proof-tested to 150% of its rated capacity (4,950 lbs) and uses low-temperature grease for operation down to -45°C. It is fully repairable, ensuring a long and cost-effective service life.

Features & Benefits

• 10-Foot Lift: Extended chain length for versatile rigging and load securing.
• High Leverage: Standard long handle requires only 63 lbs pull force.
• 150% Proof Test: Safety tested to 4,950 lbs.
• Repairable Design: Full parts support for long-term ownership.
• Cold Weather Ready: Functional in extreme cold (-45°C).
• Rugged Build: Steel housing and Grade 80 alloy chain.

Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Chain Bag, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamp)

Specifications

• Model Number: LH15010
• Working Load Limit (WLL): 1.5 Ton (3,300 lbs)
• Standard Lift: 10 ft.
• Load Chain Dimensions: 7.1 x 21.0 mm
• Load Chain Grade: Grade 80 Alloy
• Number of Falls: 1
• Pull to Lift Full Load: 63 lbs
• Headroom (Dimension C): 13.0 in.
• Handle Length (Dimension D): 15.4 in.
• Hook Throat Opening (Dimension G): 1.3 in.
• Net Weight: 28.0 lbs
