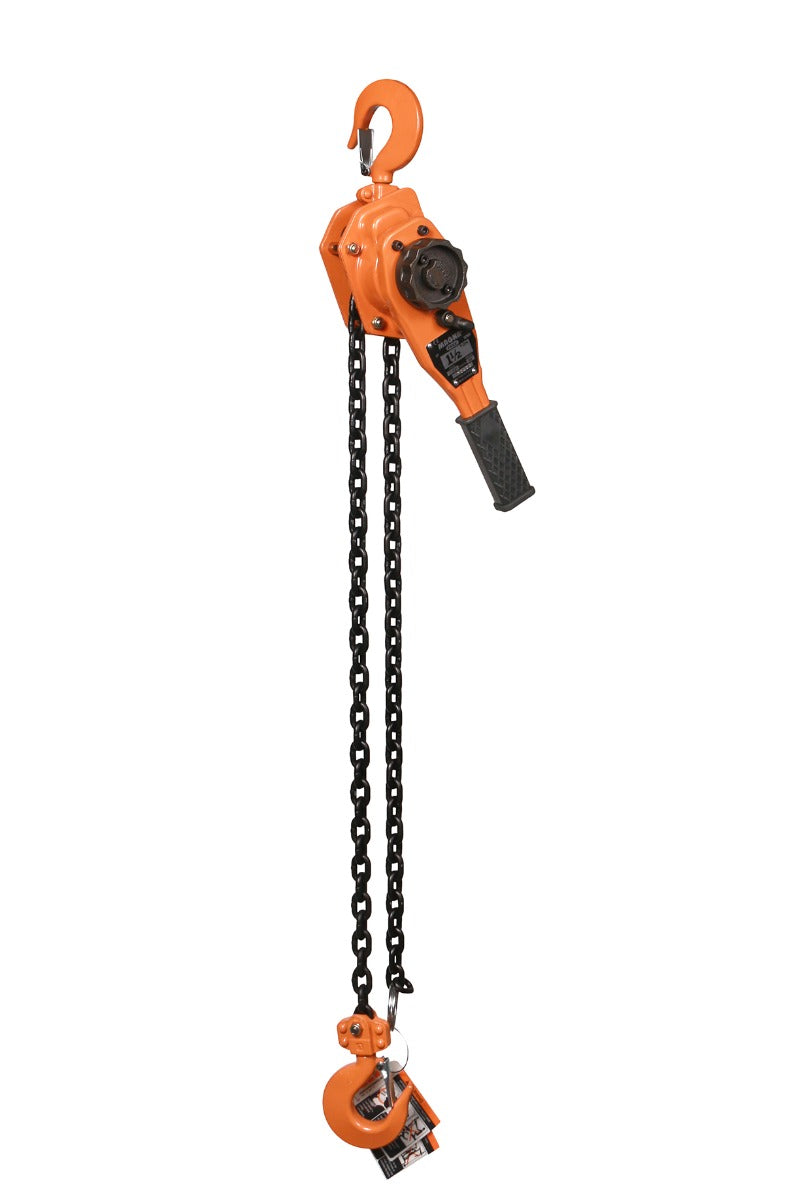

MAGNA Lifting Products 1.5 Ton Compact Lever Hoist, 5 ft. Lift LH15005C

The MAGNA LH15005C 1.5 Ton Compact Lever Hoist is a purpose-built solution for rigging in environments where space is at a premium. Unlike the standard LH15005, this "C" model is equipped with a significantly shorter handle (11.0 inches vs. 15.4 inches) and a more compact body housing. This design allows the hoist to be operated in tight quarters—such as between pipe racks, inside wind turbine nacelles, or within boiler housings—where a standard handle would be obstructed. Users should note that the trade-off for this compactness is leverage; the shorter handle requires a higher pull force (84 lbs) to lift the full load compared to the standard model.

Despite its reduced footprint, the LH15005C sacrifices nothing in terms of capacity or safety. It utilizes the same high-strength 7.1mm Grade 80 alloy chain and robust dual-pawl Weston brake system as its larger counterpart. It is subjected to the same rigorous 150% proof load test (4,950 lbs) and features the same cold-weather lubrication (-45°C). For specialized maintenance teams and riggers working in constrained industrial spaces, the LH15005C offers the critical ability to bring 1.5 tons of lifting force into areas that would typically only accommodate a smaller tool.

Features & Benefits

• Compact Profile: Reduced 11-inch handle allows for full rotation in confined spaces.
• High Capacity-to-Size Ratio: Delivers 1.5 tons of lift in a physical package similar to many 1-ton units.
• Rugged Steel Body: Durable construction protects internal mechanisms from impact and debris.
• 150% Proof Test: Individually tested to 4,950 lbs to guarantee absolute safety.
• Cold Weather Performance: Factory greased for consistent operation down to -45°C (-49°F).
• Repairable: Fully serviceable design with readily available replacement parts.

Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Chain Bag, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamp)

Specifications

• Model Number: LH15005C
• Working Load Limit (WLL): 1.5 Ton (3,300 lbs)
• Standard Lift: 5 ft.
• Load Chain Dimensions: 7.1 x 21.0 mm
• Load Chain Grade: Grade 80 Alloy
• Number of Falls: 1
• Pull to Lift Full Load: 84 lbs
• Headroom (Dimension C): 13.0 in.
• Handle Length (Dimension D): 11.0 in.
• Hook Throat Opening (Dimension G): 1.3 in.
• Net Weight: 21.0 lbs
