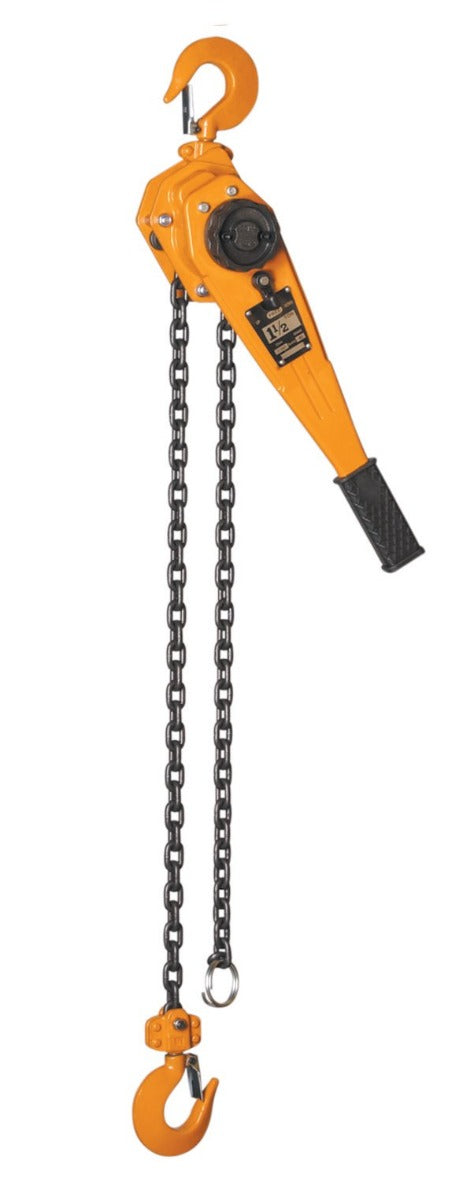

MAGNA Lifting Products 1.5 Ton Lever Hoist, 5 ft. Lift LH15005

The MAGNA LH15005 1.5 Ton Lever Hoist is the "Standard" configuration of the 1.5-ton class, prioritizing mechanical advantage and operator comfort. Unlike the compact version, this model features a full-length 15.4-inch handle. This extended lever arm significantly increases torque generation, allowing the operator to lift the full 3,300 lb load with only 63 lbs of pull force. This reduction in physical effort makes the LH15005 the superior choice for open-area applications where there is sufficient room to swing the handle, such as on flatbed trucks, in open shop floors, or on construction sites.

The unit is built around a robust steel frame and utilizes a heavy-duty 7.1mm Grade 80 alloy chain, providing a high safety factor against shock loading. The Weston-style load brake is fully enclosed and features dual pawls for redundant safety. The top and bottom hooks are forged from alloy steel and can rotate 360 degrees, facilitating easy attachment to slings and lifting eyes. Tested to 150% of its rated capacity (4,950 lbs) and rated for extreme cold (-45°C), the LH15005 is a durable, high-performance tool for serious riggers.

Features & Benefits

• High-Leverage Handle: Standard 15.4" handle length minimizes operator effort (63 lbs pull force) for heavy lifts.
• Industrial Capacity: 3,300 lb working load limit handles medium-to-heavy industrial components.
• 150% Proof Tested: Verified to withstand 4,950 lbs, ensuring structural integrity under overload.
• Serviceable Design: Fully repairable architecture with easily accessible brake and gear components.
• Cold Weather Ready: Grease rated for -45°C ensures reliable braking in freezing conditions.
• Grade 80 Chain: Premium alloy chain offers superior strength and wear resistance.

Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Chain Bag, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamp)

Specifications

• Model Number: LH15005
• Working Load Limit (WLL): 1.5 Ton (3,300 lbs)
• Standard Lift: 5 ft.
• Load Chain Dimensions: 7.1 x 21.0 mm
• Load Chain Grade: Grade 80 Alloy
• Number of Falls: 1
• Pull to Lift Full Load: 63 lbs
• Headroom (Dimension C): 13.0 in.
• Handle Length (Dimension D): 15.4 in.
• Hook Throat Opening (Dimension G): 1.3 in.
• Net Weight: 24.3 lbs
