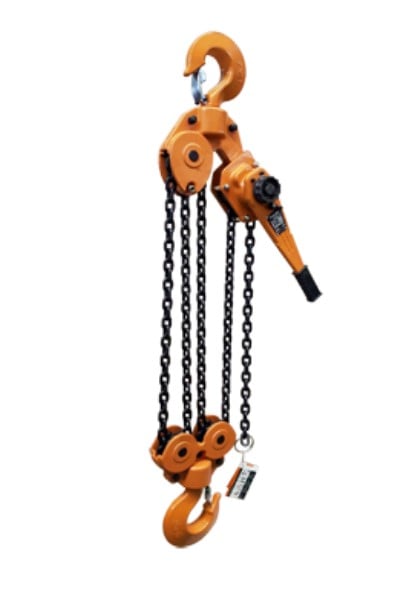

MAGNA Lifting Products 12 Ton Lever Hoist, 20 ft. Lift LH120020

The MAGNA LH120020 is a powerhouse lever hoist rated for 12 Tons (26,400 lbs), equipped with an extended 20-foot lift. It achieves this massive capacity using a robust 4-fall configuration of Grade 100 alloy chain. Designed for heavy infrastructure and industrial rigging, the hoist features a durable steel frame that is completely repairable for extended service life.

Built for reliability in any climate, the LH120020 is lubricated with low-temperature grease for operation down to -45°C (-49°F). It employs a heavy-duty Weston-style load brake to ensure load security and is factory tested to 150% of its rated capacity. This hoist provides the reach and strength necessary for the most demanding lifting tasks.

Features & Benefits

• Industrial Capacity: Lifts 26,400 lbs with a stable 4-fall chain design.
• Long Lift: 20-foot chain length for deep or high rigging operations.
• Grade 100 Chain: High-strength alloy chain provides maximum durability.
• Fully Repairable: Easy access design for maintenance and part replacement.
• All-Weather: Operates efficiently in temperatures as low as -45°C (-49°F).
• Safety Certified: Proof loaded to 150% of capacity for assured safety.

Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR1500 (15 Ton Plain Trolley), GTR1500 (15 Ton Geared Trolley), ULBC1500F (15 Ton Fixed Jaw Clamp)

Specifications

• Model Number: LH120020
• Working Load Limit (WLL): 12 Ton (26,400 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100
• Number of Falls: 4
• Pull to Lift Full Load: 93 lbs
• Headroom (Dimension C): 27.17 in.
• Handle Length (Dimension D): 15.35 in.
• Hook Throat Opening (Dimension G): 2.20 in.
• Net Weight: 191.0 lbs
