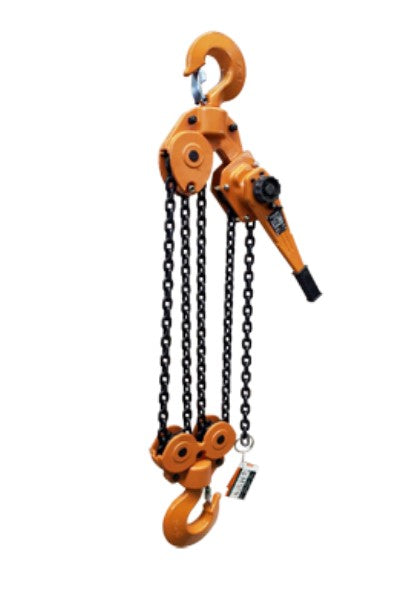

MAGNA Lifting Products 12 Ton Lever Hoist, 15 ft. Lift LH120015

The MAGNA LH120015 is a titan in the lever hoist category, offering a Working Load Limit of 12 Tons (26,400 lbs). It achieves this massive capacity through a 4-fall configuration of Grade 100 alloy chain, providing the ultimate in lifting strength. With 15 feet of lift, this hoist is designed for heavy infrastructure projects, shipbuilding, and large-scale equipment installation.

Despite its size, the LH120015 retains the user-friendly features of the LH series, including a single-hand free-chaining function and a completely repairable design. It is built with a rugged steel frame to withstand impact and is lubricated with low-temperature grease for operation down to -45°C (-49°F). Safety is guaranteed with a 150% load test and a reliable Weston-style mechanical brake.

Features & Benefits

• Industrial Capacity: Lifts 26,400 lbs using a robust 4-fall chain configuration.
• Grade 100 Chain: Equipped with high-strength alloy chain for maximum durability.
• Fully Repairable: Easy access design allows for complete maintenance and repair.
• Arctic Performance: Grease rated for -45°C (-49°F) ensures operation in extreme cold.
• Safety Certified: Load tested to 150% of capacity to meet rigorous safety standards.
• Secure Holding: Heavy-duty Weston brake maintains load position securely.

Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR1500 (15 Ton Plain Trolley), GTR1500 (15 Ton Geared Trolley), ULBC1500F (15 Ton Fixed Jaw Clamp)

Specifications

• Model Number: LH120015
• Working Load Limit (WLL): 12 Ton (26,400 lbs)
• Standard Lift: 15 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100
• Number of Falls: 4
• Pull to Lift Full Load: 93 lbs
• Headroom (Dimension C): 27.17 in.
• Handle Length (Dimension D): 15.35 in.
• Hook Throat Opening (Dimension G): 2.20 in.
• Net Weight: 167.0 lbs
