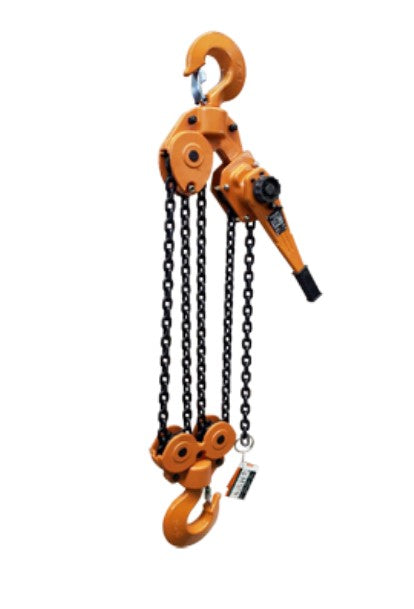

MAGNA Lifting Products 12 Ton Lever Hoist, 10 ft. Lift LH120010

The MAGNA LH120010 12 Ton Lever Hoist is a heavy-lift specialist, capable of moving 26,400 lbs with a 10-foot range of motion. Utilizing a robust 4-fall block system with Grade 100 chain, this hoist is designed for extreme loads encountered in power generation, shipbuilding, and infrastructure projects. The unit's reinforced steel body and heavy-duty brake system ensure stability and safety under max load.

Operators can generate 12 tons of lift with just 93 lbs of handle force thanks to the precision gear train. The hoist is proof tested to 150% of capacity (39,600 lbs) and features cold-weather lubrication for -45°C operation. Fully repairable and built to last, the LH120010 is a critical asset for heavy rigging operations.

Features & Benefits

• 12 Ton Capacity: 26,400 lbs WLL for extreme lifts.
• 10-Foot Lift: Long reach for versatile positioning.
• 4-Fall System: Grade 100 chain for stability.
• 150% Proof Test: Tested to 39,600 lbs.
• Rugged Build: Heavy steel construction.
• Cold Weather Spec: Rated for -45°C.

Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR1500 (15 Ton Plain Trolley), GTR1500 (15 Ton Geared Trolley), ULBC1500F (15 Ton Fixed Jaw Clamp)

Specifications

• Model Number: LH120010
• Working Load Limit (WLL): 12 Ton (26,400 lbs)
• Standard Lift: 10 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100 Alloy
• Number of Falls: 4
• Pull to Lift Full Load: 93 lbs
• Headroom (Dimension C): 27.2 in.
• Handle Length (Dimension D): 15.4 in.
• Hook Throat Opening (Dimension G): 2.2 in.
• Net Weight: 143.0 lbs
