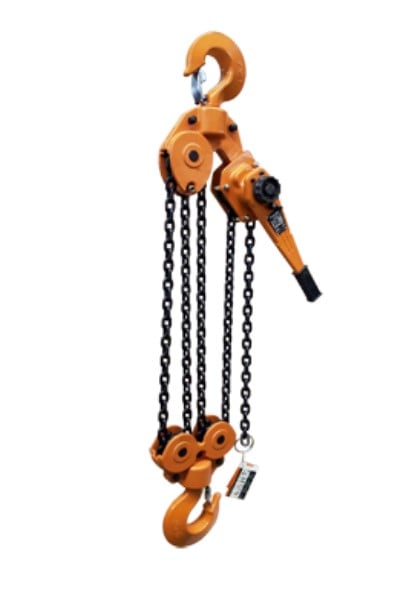

MAGNA 12 Ton Lever Hoist, 5 ft. Lift LH120005
The MAGNA LH120005 12 Ton Lever Hoist is an elite lifting instrument designed for projects requiring exceptional manual force. With a capacity of 26,400 lbs, this hoist employs a complex 4-fall block system utilizing Grade 100 alloy chain to multiply operator effort into massive lifting power. It is specifically built for heavy civil engineering, shipbuilding, and power generation sectors where loads often exceed the 10-ton mark. The hoist body is reinforced to handle the lateral and compressive forces associated with such heavy lifts, ensuring alignment is maintained even under maximum load.
Safety is the primary focus of the LH120005. It features a robust dual-pawl braking system and overload-indicating hooks that stretch before failure. The unit is load tested to 150% of its rating—a test load of nearly 40,000 lbs—verifying its structural integrity. Like the rest of the MAGNA line, it is treated with low-temperature grease, ensuring that even in freezing conditions, the brake and gearing operate smoothly and reliably.
Features & Benefits
- Industrial Heavyweight: 12-ton capacity for major infrastructure and heavy manufacturing projects.
- 4-Fall System: Quadruple chain lines provide stable, high-capacity lifting.
- 150% Proof Test: Tested to 39,600 lbs for ultimate peace of mind.
- Reliable Braking: Heavy-duty Weston brake with dual pawls prevents load slippage.
- Durable Finish: Powder-coated body and zinc-plated fasteners resist corrosion.
- ANSI Compliant: Fully meets ASME B30.21 safety standards.
Compatible Accessories: Overload Indicator Handle, Zinc Plated Load Chain, Chain Bag, PTR1500 (15 Ton Plain Trolley), GTR1500 (15 Ton Geared Trolley), ULBC1500F (15 Ton Fixed Jaw Clamp)
Specifications
- Model Number: LH120005
- Working Load Limit (WLL): 12 Ton (26,400 lbs)
- Standard Lift: 5 ft.
- Load Chain Dimensions: 9.0 x 27.0 mm
- Load Chain Grade: Grade 100 Alloy
- Number of Falls: 4
- Pull to Lift Full Load: 93 lbs
- Headroom (Dimension C): 27.2 in.
- Handle Length (Dimension D): 15.4 in.
- Hook Throat Opening (Dimension G): 2.2 in.
- Net Weight: 119.0 lbs
