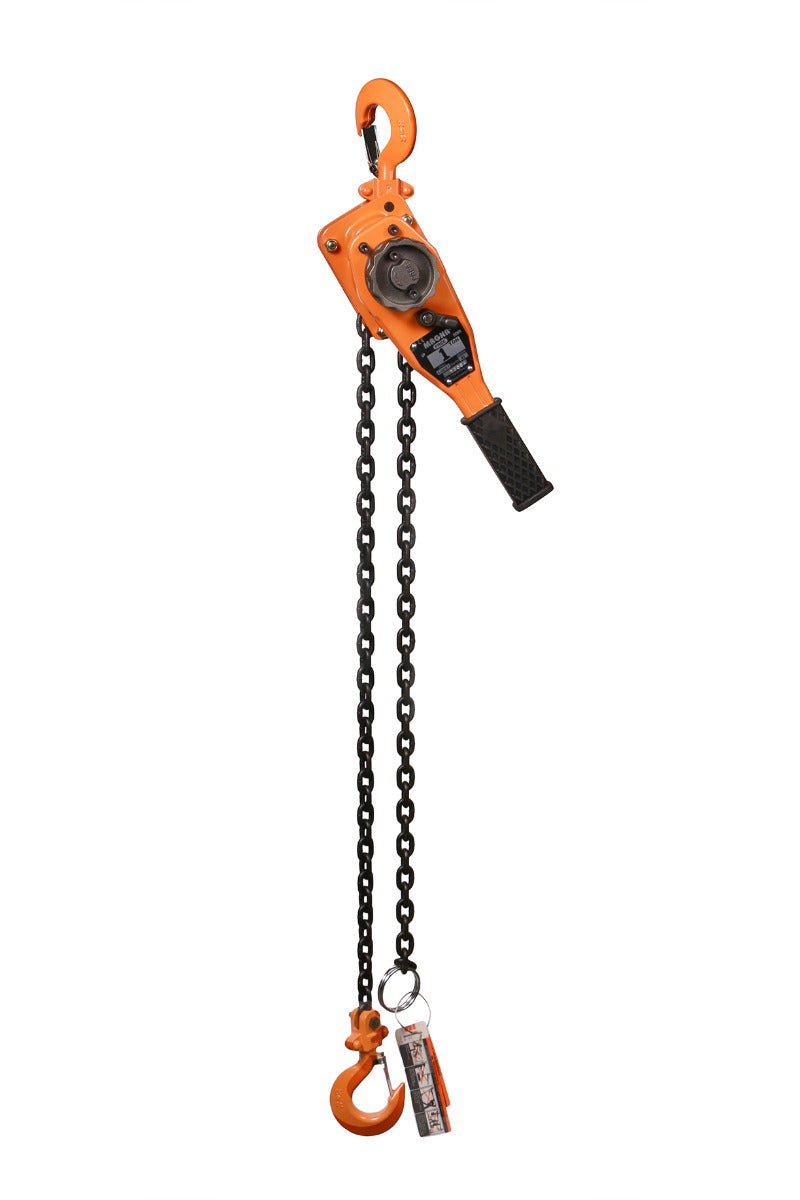

MAGNA Lifting Products 1 Ton Lever Hoist, 20 ft. Lift LH10020

The MAGNA LH10020 1 Ton Lever Hoist provides 2,200 lbs of lifting force with an extended 20-foot reach. This hoist is engineered for industrial reliability, featuring a robust steel housing and premium Grade 80 alloy load chain. Its completely repairable design allows for simple maintenance, making it a cost-effective solution for long-term fleet use.

Equipped with low-temperature grease, the LH10020 operates smoothly in temperatures as low as -45°C (-49°F). It features a Weston-style load brake with double pawls for secure load holding and a single-hand free-chaining mechanism for quick setup. Load tested to 150% of its rated capacity, this hoist delivers the safety and durability required for mining, construction, and manufacturing applications.

Features & Benefits

• Long Reach: 20-foot lift capability for versatile rigging scenarios.
• Heavy Duty: Steel construction and Grade 80 chain withstand industrial use.
• Fully Serviceable: Bolted design allows for easy repair and part replacement.
• Arctic Ready: Lubricated for operation down to -45°C (-49°F).
• Safety Certified: Factory tested to 150% of WLL for peace of mind.
• Precise Control: Mechanical load brake ensures load stays suspended safely.

Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Zinc Plated Load Chain, Chain Bag, PTR100 (1 Ton Plain Trolley), GTR100 (1 Ton Geared Trolley), BC100P/BC100RE (1 Ton Beam Clamp)

Specifications

• Model Number: LH10020
• Working Load Limit (WLL): 1 Ton (2,200 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 6.3 x 19.1 mm
• Load Chain Grade: Grade 80
• Number of Falls: 1
• Pull to Lift Full Load: 59 lbs
• Headroom (Dimension C): 11.02 in.
• Handle Length (Dimension D): 11.02 in.
• Hook Throat Opening (Dimension G): 1.06 in.
• Net Weight: 25.6 lbs
