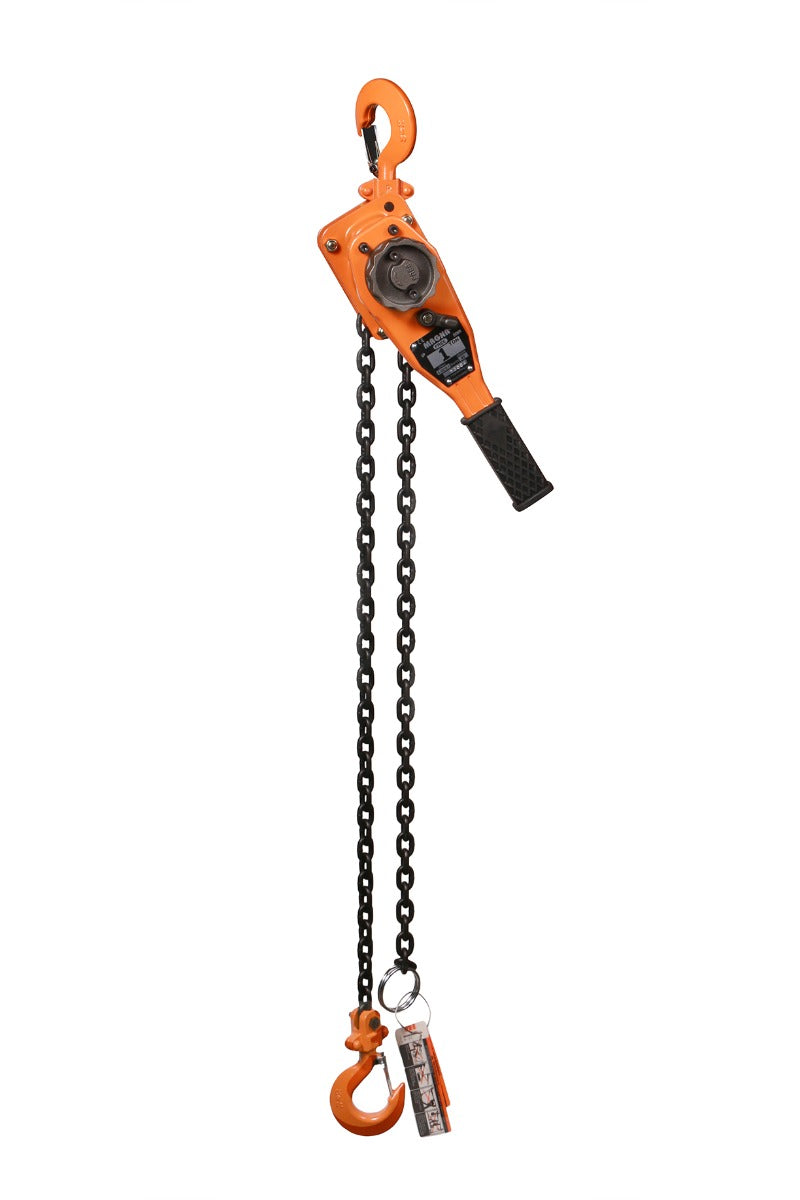

MAGNA Lifting Products 1 Ton Lever Hoist, 15 ft. Lift LH10015

The MAGNA LH10015 delivers 1 Ton (2,200 lbs) of lifting capacity backed by South Korean manufacturing excellence. Ideally suited for industrial rigging, mining, and utility applications, this hoist features a 15-foot lift and rugged all-steel construction. The open-frame design allows for easy cleaning and inspection of the load sheave, crucial for maintaining performance in dirty or dusty environments.

Reliability in extreme conditions is a hallmark of the LH series. The LH10015 uses low-temperature grease to ensure the double-pawl braking system functions correctly down to -45°C (-49°F). It features a single-hand free-chaining mode for rapid setup and is fully repairable, allowing for component replacement rather than unit disposal. Each hoist is individually load tested to 150% of its rated capacity (3,300 lbs) before shipment.

Features & Benefits

• Industrial Durability: Steel housing protects precision gears from impact damage.
• Extreme Temperature Use: Functional in arctic conditions down to -45°C (-49°F).
• Serviceable: Bolted assembly allows for complete tear-down and repair.
• Secure Holding: Weston-style load brake with double pawls prevents load slip.
• Certified Safety: Proof tested to 150% of capacity; meets ANSI/ASME standards.
• Versatile Operation: 360-degree handle rotation allows usage in confined spaces.

Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Zinc Plated Load Chain, Chain Bag, PTR100 (1 Ton Plain Trolley), GTR100 (1 Ton Geared Trolley), BC100P/BC100RE (1 Ton Beam Clamp)

Specifications

• Model Number: LH10015
• Working Load Limit (WLL): 1 Ton (2,200 lbs)
• Standard Lift: 15 ft.
• Load Chain Dimensions: 6.3 x 19.1 mm
• Load Chain Grade: Grade 80
• Number of Falls: 1
• Pull to Lift Full Load: 59 lbs
• Headroom (Dimension C): 11.02 in.
• Handle Length (Dimension D): 11.02 in.
• Hook Throat Opening (Dimension G): 1.06 in.
• Net Weight: 22.5 lbs
