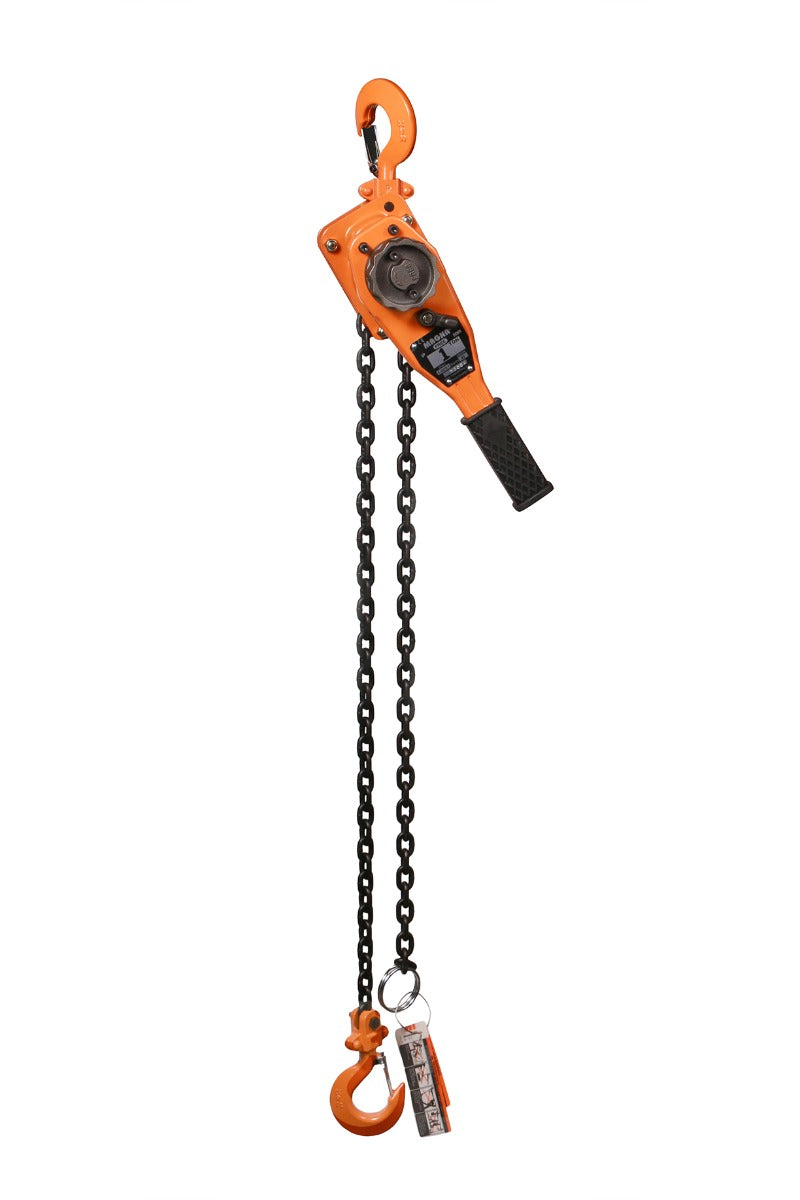

MAGNA Lifting Products 1 Ton Lever Hoist, 10 ft. Lift LH10010

The MAGNA LH10010 1 Ton Lever Hoist with 10-foot lift is designed for general industrial rigging where a standard 5-foot reach isn't enough. Providing a full metric ton (2,200 lbs) of capacity, this hoist is ideal for plant maintenance, allowing operators to lift engines, pumps, and machinery from the floor to workbench height or overhead racks. The 10-foot Grade 80 chain is robust and wear-resistant, while the steel hoist body protects the inner workings from the dust and grime of industrial environments.

Operator fatigue is minimized thanks to the efficient gear train, which requires only 59 lbs of handle force to lift the full load. The unit features a Weston-style mechanical brake that engages instantly to hold the load securely. Manufactured in South Korea and tested to 150% of capacity (3,300 lbs), the LH10010 is a premium lifting tool that offers superior reliability and repairability compared to disposable alternatives.

Features & Benefits

• 10-Foot Reach: Versatile lift length for varied industrial tasks.
• High Efficiency: Low 59 lb handle pull force reduces fatigue.
• 150% Proof Test: Tested to 3,300 lbs for maximum safety.
• All-Steel Construction: Built to last in tough environments.
• Cold Weather Grease: Rated for -45°C operation.
• ANSI Compliant: Meets all ASME B30.21 safety standards.

Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Zinc Plated Load Chain, Chain Bag, PTR100 (1 Ton Plain Trolley), GTR100 (1 Ton Geared Trolley), BC100P/BC100RE (1 Ton Beam Clamp)

Specifications

• Model Number: LH10010
• Working Load Limit (WLL): 1 Ton (2,200 lbs)
• Standard Lift: 10 ft.
• Load Chain Dimensions: 6.3 x 19.1 mm
• Load Chain Grade: Grade 80 Alloy
• Number of Falls: 1
• Pull to Lift Full Load: 59 lbs
• Headroom (Dimension C): 11.0 in.
• Handle Length (Dimension D): 11.0 in.
• Hook Throat Opening (Dimension G): 1.1 in.
• Net Weight: 20.7 lbs
