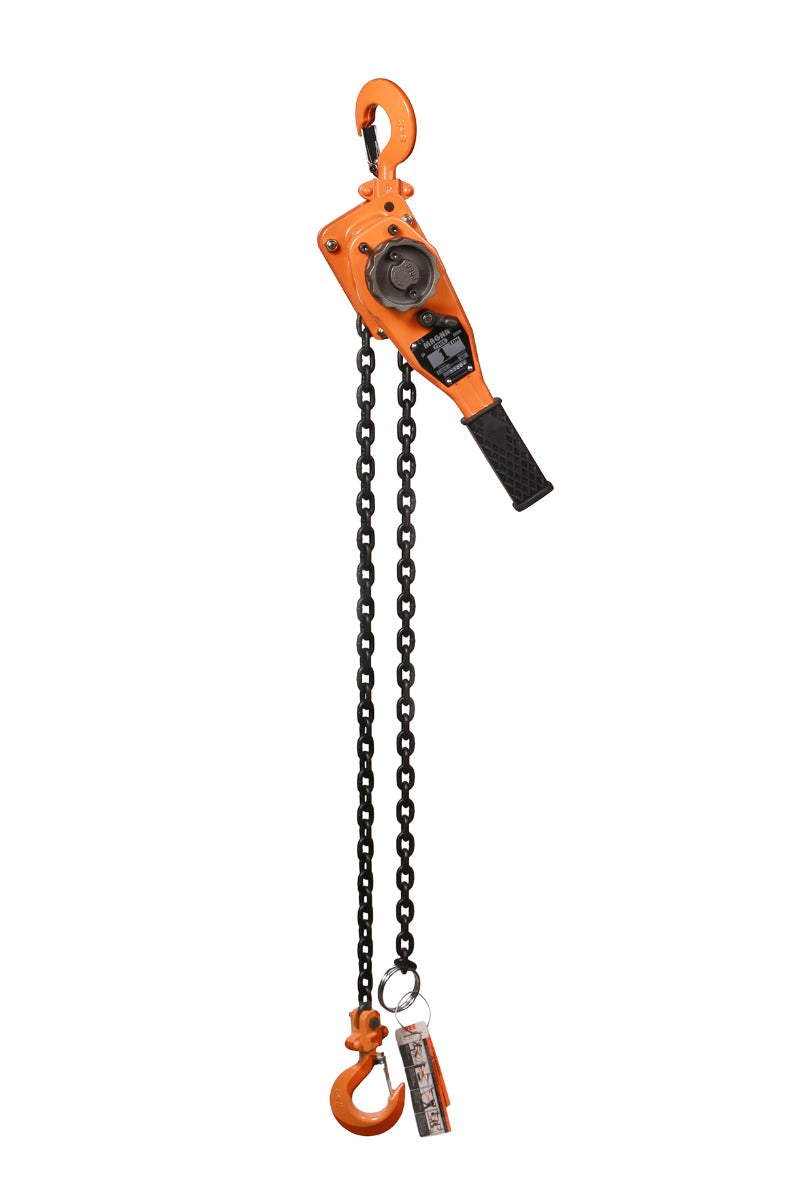

MAGNA Lifting Products 1 Ton Lever Hoist, 5 ft. Lift LH10005

The MAGNA LH10005 1 Ton Lever Hoist is the standard-bearer for industrial maintenance and rigging operations. Providing a robust 2,200 lbs of lifting capacity, this hoist is designed to handle the heavy components found in manufacturing plants, mines, and power stations. The unit utilizes a 6.3mm Grade 80 alloy chain that is heat-treated for maximum wear resistance and ductility. Despite its increased capacity over the 3/4-ton model, the LH10005 maintains an exceptionally low handle pull force of just 59 lbs, achieved through advanced gear reduction ratios that amplify operator effort efficiently.

The hoist's construction focuses on longevity and safety in harsh environments. The gear case and hand wheel cover are fully enclosed to prevent the ingress of abrasive dust, grit, and moisture, protecting the internal mechanisms. The Weston-style load brake engages instantly upon handle release, preventing load drift and ensuring safety during overhead lifts. Like the entire LH series, this unit is manufactured in South Korea and is individually proof-tested to 150% of its rated capacity (3,300 lbs). The use of low-temperature grease allows for consistent performance in unheated warehouses or outdoor sites in winter conditions (-45°C).

Features & Benefits

• High-Efficiency Gearing: Advanced gear ratios require only 59 lbs of handle force to lift a full 2,200 lb load.
• Superior Safety Margins: Individually load tested to 150% of rated capacity (3,300 lbs) for peace of mind.
• All-Weather Capability: Premium low-temperature grease ensures functionality from -45°C to +80°C.
• Impact Resistant Body: Heavy-duty steel side plates protect vital components from jobsite collisions.
• ANSI Compliance: Fully meets or exceeds all ASME B30.21 safety and performance standards.
• Maintenance Friendly: Simple, bolt-together construction allows for easy inspection and greasing.

Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Zinc Plated Load Chain, Chain Bag, PTR100 (1 Ton Plain Trolley), GTR100 (1 Ton Geared Trolley), BC100P/BC100RE (1 Ton Beam Clamp)

Specifications

• Model Number: LH10005
• Working Load Limit (WLL): 1 Ton (2,200 lbs)
• Standard Lift: 5 ft.
• Load Chain Dimensions: 6.3 x 19.1 mm
• Load Chain Grade: Grade 80 Alloy
• Number of Falls: 1
• Pull to Lift Full Load: 59 lbs
• Headroom (Dimension C): 11.0 in.
• Handle Length (Dimension D): 11.0 in.
• Hook Throat Opening (Dimension G): 1.1 in.
• Net Weight: 17.6 lbs
