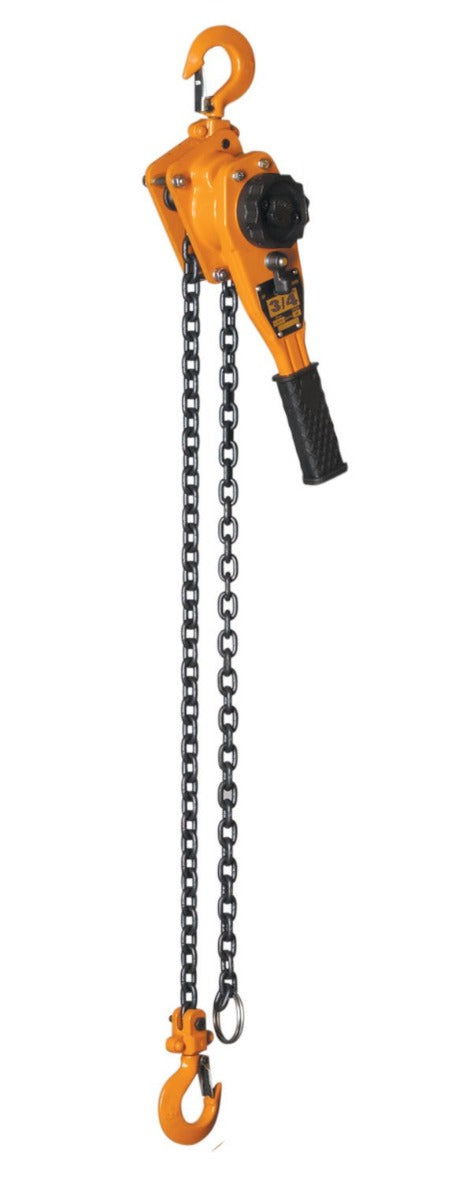

MAGNA Lifting Products 3/4 Ton Lever Hoist, 20 ft. Lift LH07520

The MAGNA LH07520 is a versatile 3/4 Ton (1,650 lbs) lever hoist equipped with 20 feet of lift, suitable for overhead work and long-distance pulling. Built for durability, it features a heavy-duty steel frame and gear case that protects the internal mechanism. The unit utilizes high-quality Grade 80 alloy load chain and is completely repairable, offering excellent long-term value.

This hoist excels in adverse conditions, pre-lubricated with grease that prevents freezing down to -45°C (-49°F). It includes a Weston-style mechanical load brake for positive holding and a free-chaining mode for rapid hook adjustment. Every unit is load tested to 150% of its capacity, ensuring it meets strict safety standards for industrial and construction environments.

Features & Benefits

• Extended Lift: 20-foot chain length allows for high-bay and long-reach operations.
• Repairable: Easy-access design permits complete maintenance and repair.
• Cold Weather Performance: Grease rated for -45°C (-49°F) prevents seizing.
• High Safety Margin: Proof tested to 150% of the rated capacity.
• Durable Components: Grade 80 chain and steel body ensure longevity.
• Ergonomic: Rubber grip handle provides comfort and control.

Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Zinc Plated Load Chain, Chain Bag, PTR100 (1 Ton Plain Trolley), GTR100 (1 Ton Geared Trolley), BC100P/BC100RE (1 Ton Beam Clamp)

Specifications

• Model Number: LH07520
• Working Load Limit (WLL): 3/4 Ton (1,650 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 6.3 x 19.1 mm
• Load Chain Grade: Grade 80
• Number of Falls: 1
• Pull to Lift Full Load: 59 lbs
• Headroom (Dimension C): 11.02 in.
• Handle Length (Dimension D): 11.02 in.
• Hook Throat Opening (Dimension G): 1.06 in.
• Net Weight: 24.9 lbs
