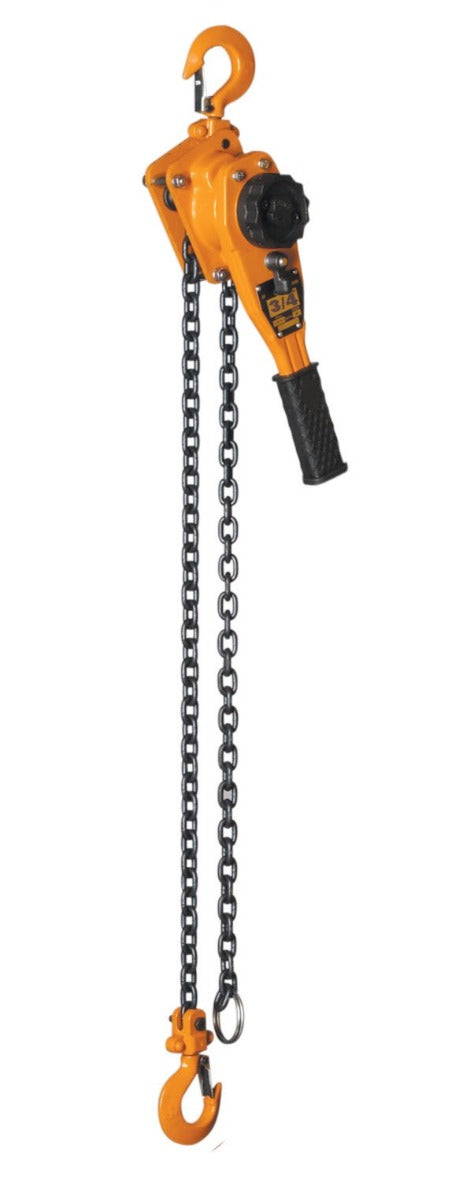

MAGNA Lifting Products 3/4 Ton Lever Hoist, 15 ft. Lift LH07515

The MAGNA LH07515 provides a robust 3/4 Ton (1,650 lbs) Working Load Limit, making it a preferred choice for structural steel alignment, heavy machinery maintenance, and cargo securing. With a 15-foot standard lift, this hoist offers extended reach while maintaining a manageable physical size. The unit is manufactured in South Korea using high-grade steel components, ensuring consistent quality and performance.

Engineered for longevity, the LH07515 is completely repairable, with a design that facilitates easy inspection of the braking system and gears. It features a Weston-style mechanical load brake that engages automatically to hold the load securely. The hoist is factory-lubricated with a proprietary low-temperature grease, preventing the pawls from freezing or sticking in temperatures down to -45°C (-49°F). A rugged rubber grip handle provides the operator with non-slip control during lifting.

Features & Benefits

• High Strength-to-Weight: Compact design delivers 1,650 lbs of lift capacity.
• Maintenance Friendly: Fully serviceable design with readily available spare parts.
• Cold Weather Performance: Grease rated for -45°C (-49°F) ensures reliability in winter conditions.
• Safety Compliance: Meets ANSI/ASME B30.21 standards and is proof loaded to 150%.
• Efficient Gearing: Requires only 59 lbs of handle pull to lift the full rated load.
• Durable Components: Features Grade 80 alloy load chain and forged steel hooks.

Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Zinc Plated Load Chain, Chain Bag, PTR100 (1 Ton Plain Trolley), GTR100 (1 Ton Geared Trolley), BC100P/BC100RE (1 Ton Beam Clamp)

Specifications

• Model Number: LH07515
• Working Load Limit (WLL): 3/4 Ton (1,650 lbs)
• Standard Lift: 15 ft.
• Load Chain Dimensions: 6.3 x 19.1 mm
• Load Chain Grade: Grade 80
• Number of Falls: 1
• Pull to Lift Full Load: 59 lbs
• Headroom (Dimension C): 11.02 in.
• Handle Length (Dimension D): 11.02 in.
• Hook Throat Opening (Dimension G): 1.06 in.
• Net Weight: 21.8 lbs
