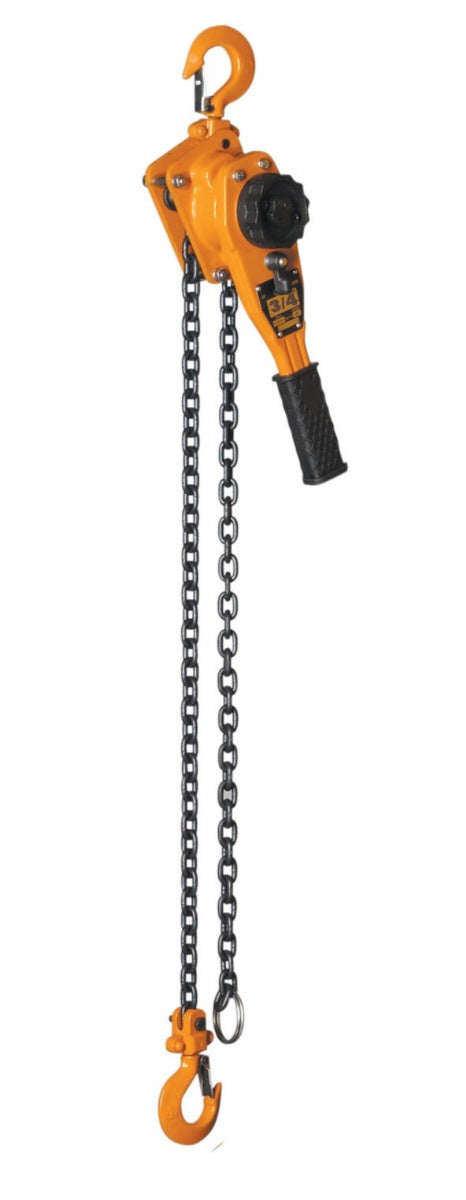

MAGNA Lifting Products 3/4 Ton Lever Hoist, 10 ft. Lift LH07510

The MAGNA LH07510 3/4 Ton Lever Hoist is a staple for utility crews and ironworkers, offering a versatile 10-foot reach with a 1,650 lb lifting capacity. This specific configuration is widely used for pole-top work and tensioning guy wires where the standard 5-foot lift is insufficient. The hoist features a high-strength steel body and Grade 80 alloy chain, ensuring it can withstand the rough handling of field operations. At just over 19 lbs, it remains light enough to be hauled up utility poles or scaffolding structures.

The LH07510 includes MAGNA's signature safety features: a dual-friction disc Weston brake for secure holding, forged alloy hooks with heavy-duty latches, and a 150% proof load test (2,475 lbs). The free-chaining mechanism allows for fast hook-up, while the rubber-grip handle ensures positive control even in rain or snow. With internal grease rated for -45°C, this hoist is ready for the harshest winters North America can throw at it.

Features & Benefits

• Extended 10' Lift: Perfect for utility pole and overhead structural work.
• Portable Power: 3/4 ton capacity in a sub-20 lb package.
• Rugged Durability: All-steel construction resists jobsite damage.
• 150% Proof Test: Ensures safety margins exceed industry norms.
• Cold Weather Ready: Operates smoothly down to -45°C.
• Repairable: Long-term value through fully serviceable design.

Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Zinc Plated Load Chain, Chain Bag, PTR100 (1 Ton Plain Trolley), GTR100 (1 Ton Geared Trolley), BC100P/BC100RE (1 Ton Beam Clamp)

Specifications

• Model Number: LH07510
• Working Load Limit (WLL): 3/4 Ton (1,650 lbs)
• Standard Lift: 10 ft.
• Load Chain Dimensions: 6.3 x 19.1 mm
• Load Chain Grade: Grade 80 Alloy
• Number of Falls: 1
• Pull to Lift Full Load: 59 lbs
• Headroom (Dimension C): 11.0 in.
• Handle Length (Dimension D): 11.0 in.
• Hook Throat Opening (Dimension G): 1.1 in.
• Net Weight: 19.1 lbs
