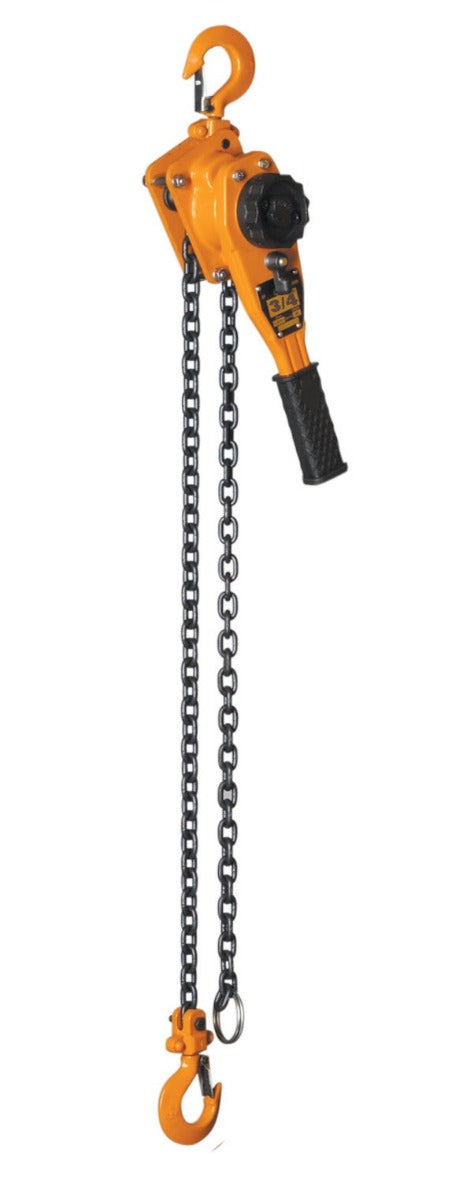

MAGNA Lifting Products 3/4 Ton Lever Hoist, 5 ft. Lift LH07505

The MAGNA LH07505 3/4 Ton Lever Hoist is widely considered the "sweet spot" in manual rigging, offering nearly a ton of lifting power in a package that is light enough to be carried up ladders and scaffolding. Weighing in at approximately 16 lbs, this hoist is specifically engineered to reduce operator fatigue without sacrificing structural rigidity. The body is fabricated from cold-rolled steel plates, housing a precision-machined gear train that minimizes friction and handle effort. With a pull force of only 59 lbs required to lift the full 1,650 lb load, operators can work longer and safer with less physical strain.

Safety features on the LH07505 are comprehensive. It incorporates a dual-pawl Weston brake system, providing redundant locking security; if one pawl were to fail due to debris or damage, the second pawl maintains the load. The free-chaining mechanism is designed with a safety stop to prevent accidental release under load. The unit is proof tested to 150% of capacity (2,475 lbs), ensuring reliability even during momentary shock loads. Rated for operation in extreme cold (-45°C), the LH07505 is an indispensable tool for outdoor utility and construction crews working year-round.

Features & Benefits

• Optimal Power-to-Weight Ratio: Delivers 1,650 lbs of lifting force while weighing only 16 lbs, maximizing portability.
• Dual-Pawl Safety: Redundant ratchet system ensures positive load holding even if one component is compromised.
• 150% Overload Test: Verified to withstand 2,475 lbs, significantly exceeding ANSI B30.21 mandates.
• Cold Weather Performance: Factory lubricated for reliable operation in freezing conditions down to -45°C (-49°F).
• Forged Alloy Hooks: Features 360-degree rotation and heavy-duty latches to secure the load and prevent chain twisting.
• Serviceable Architecture: Fully repairable with readily available replacement parts for brakes, chains, and hooks.

Compatible Accessories: Overload Indicator Handle, Self-Locking Hook, Zinc Plated Load Chain, Chain Bag, PTR100 (1 Ton Plain Trolley), GTR100 (1 Ton Geared Trolley), BC100P/BC100RE (1 Ton Beam Clamp)

Specifications

• Model Number: LH07505
• Working Load Limit (WLL): 3/4 Ton (1,650 lbs)
• Standard Lift: 5 ft.
• Load Chain Dimensions: 6.3 x 19.1 mm
• Load Chain Grade: Grade 80 Alloy
• Number of Falls: 1
• Pull to Lift Full Load: 59 lbs
• Headroom (Dimension C): 11.0 in.
• Handle Length (Dimension D): 11.0 in.
• Hook Throat Opening (Dimension G): 1.1 in.
• Net Weight: 16.0 lbs
