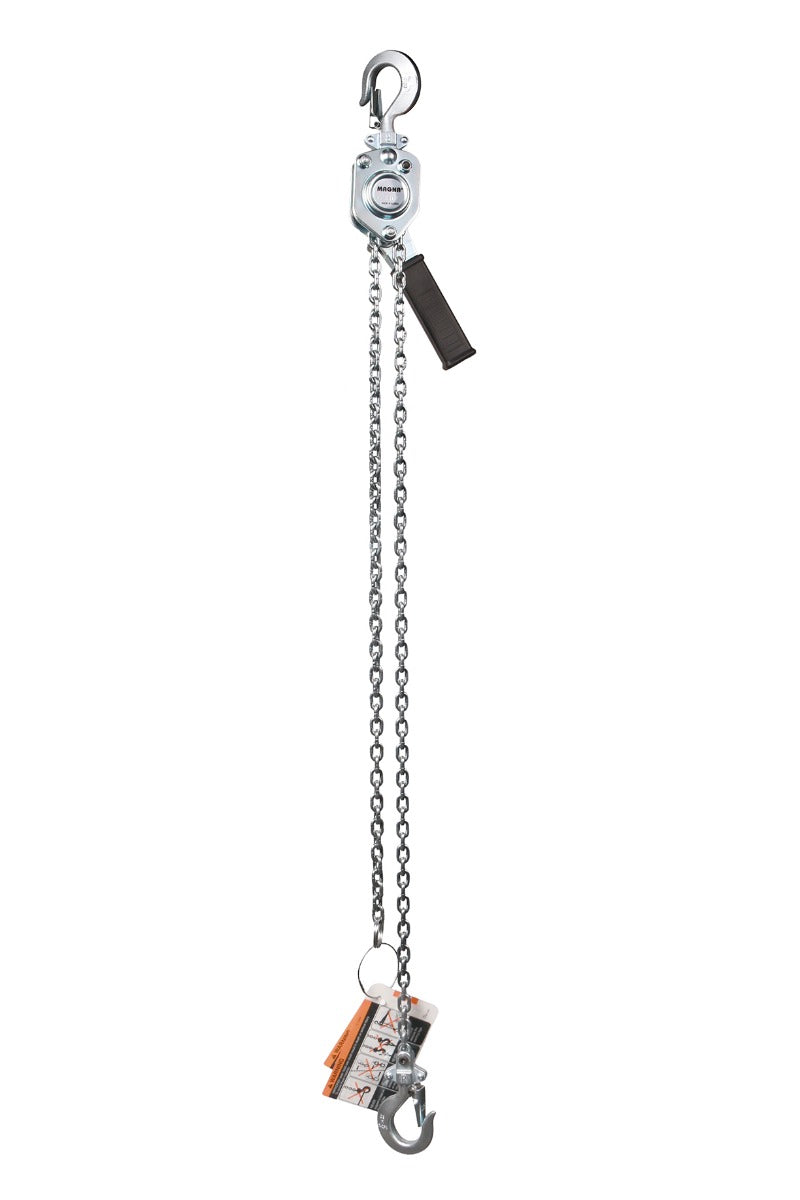

MAGNA Lifting Products 1/2 Ton Lever Hoist, 20 ft. Lift LH05020

The MAGNA LH05020 combines a 1/2 Ton (1,100 lbs) lifting capacity with a long 20-foot reach, making it ideal for high-ceiling facilities and deep rigging applications. Manufactured in South Korea, this hoist features a durable steel body and is completely repairable, allowing for part replacement and extended service life. The Grade 80 alloy load chain ensures high strength and durability.

Designed for all-weather use, the LH05020 is lubricated with low-temperature grease effective down to -45°C (-49°F). It features a single-hand free-chaining mechanism for quick setup and a Weston-style load brake for secure holding. Factory tested to 150% of its rated capacity, this hoist provides professional-grade safety and performance for maintenance, construction, and industrial use.

Features & Benefits

• Long Reach: 20-foot lift capability for versatile application.
• Field Serviceable: Fully repairable design with easy access to internals.
• All-Weather: Operates efficiently in temperatures as low as -45°C (-49°F).
• Safety First: Load tested to 150% of WLL for certified reliability.
• Rugged Build: Steel housing and Grade 80 chain resist wear and impact.
• Secure Braking: Mechanical load brake ensures positive load control.

Compatible Accessories: Zinc Plated Load Chain, Chain Bag, PTR050 (1/2 Ton Plain Trolley - Hook Mount), BC100P/BC100RE (1 Ton Beam Clamp)

Specifications

• Model Number: LH05020
• Working Load Limit (WLL): 1/2 Ton (1,100 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 5.0 x 15.0 mm
• Load Chain Grade: Grade 80
• Number of Falls: 1
• Pull to Lift Full Load: 93 lbs
• Headroom (Dimension C): 11.40 in.
• Handle Length (Dimension D): 8.86 in.
• Hook Throat Opening (Dimension G): 0.86 in.
• Net Weight: 13.9 lbs
