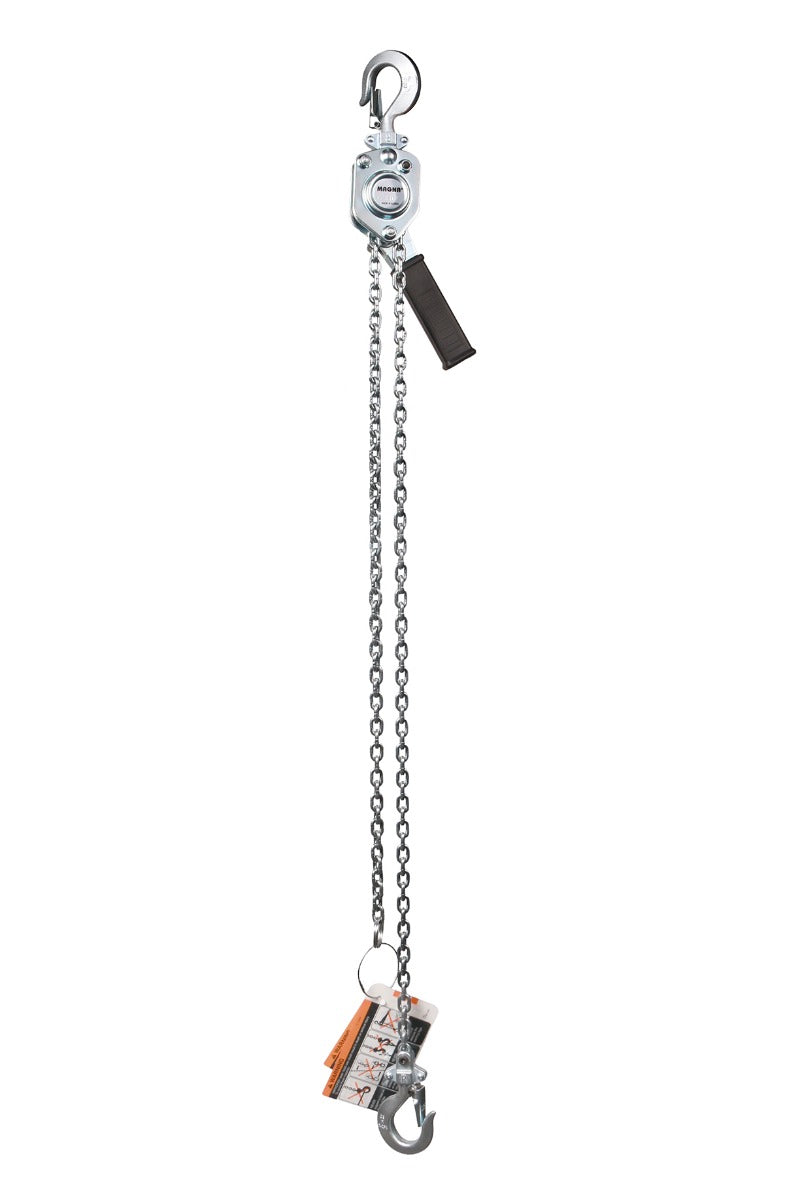

MAGNA Lifting Products 1/2 Ton Lever Hoist, 15 ft. Lift LH05015
MAGNA Lifting Products 1/2 Ton Lever Hoist, 15 ft. Lift LH05015
MAGNA 1/2 Ton Lever Hoist, 15 ft. Lift LH05015
The MAGNA LH05015 is a versatile 1/2 Ton (1,100 lbs) lever hoist engineered for professional applications ranging from utility work to factory maintenance. Distinguished by its "Easy Access" design, this hoist features a bolted steel housing that allows for complete disassembly and repair, distinguishing it from disposable consumer-grade units. This repairability ensures a long service life and lower total cost of ownership for heavy users.
This model is equipped with a 15-foot lift of premium Grade 80 alloy steel chain, offering excellent durability and resistance to wear. Operational efficiency is enhanced by a single-hand free-chaining mechanism, which allows the operator to quickly adjust the chain slack before engaging the load. Designed for all-weather reliability, the internal mechanism is protected by low-temperature grease effective down to -45°C (-49°F). Safety is paramount, with every unit tested to 150% of its rated capacity.
Features & Benefits
- Fully Repairable: Bolted construction allows for easy maintenance and parts replacement.
- Arctic Ready: Specialized grease ensures smooth operation in temperatures as low as -45°C (-49°F).
- Robust Safety: Factory load tested to 150% of the 1,100 lb capacity (1,650 lbs test load).
- Grade 80 Chain: High-strength alloy load chain provides superior durability and safety.
- Free Chaining: Simple one-handed adjustment for rapid hook positioning.
- Impact Resistant: Rugged steel gear case and frame withstand industrial abuse.
Compatible Accessories: Zinc Plated Load Chain, Chain Bag, PTR050 (1/2 Ton Plain Trolley - Hook Mount), BC100P/BC100RE (1 Ton Beam Clamp)
Specifications
- Model Number: LH05015
- Working Load Limit (WLL): 1/2 Ton (1,100 lbs)
- Standard Lift: 15 ft.
- Load Chain Dimensions: 5.0 x 15.0 mm
- Load Chain Grade: Grade 80
- Number of Falls: 1
- Pull to Lift Full Load: 93 lbs
- Headroom (Dimension C): 11.40 in.
- Handle Length (Dimension D): 8.86 in.
- Hook Throat Opening (Dimension G): 0.86 in.
- Net Weight: 12.0 lbs
