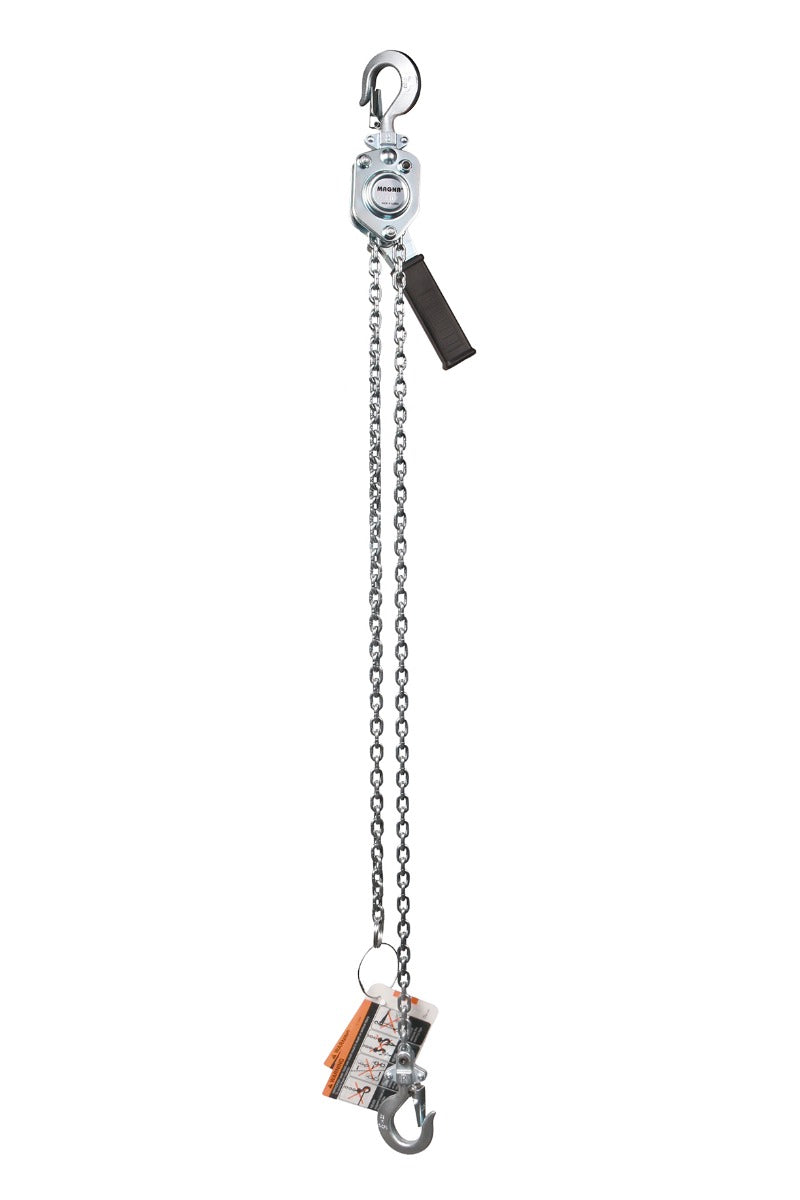

MAGNA Lifting Products 1/2 Ton Lever Hoist, 5 ft. Lift LH05005

The MAGNA LH05005 1/2 Ton Lever Hoist bridges the gap between compact mini-hoists and full-sized industrial rigging gear. Offering a substantial 1,100 lb working load limit, this unit is engineered for durability and longevity. Unlike many sub-1-ton hoists that are sealed and disposable, the LH05005 features a completely repairable design. The brake mechanism, gear train, and ratchet system are accessible for inspection and maintenance, ensuring that the hoist can be kept in service for years, reducing the long-term total cost of ownership. The chassis is built from high-strength steel, providing a rigid platform that maintains gear alignment even under maximum load stress.

Operational efficiency is key to the LH05005's design. It utilizes a 5.0mm Grade 80 alloy load chain that balances strength with flexibility, preventing kinking and binding during operation. The Weston-style mechanical brake utilizes moisture-resistant friction discs, ensuring reliable stopping power even in damp or humid environments. Safety is further enhanced by the use of forged alloy steel hooks with heavy-duty cast latches, which are designed to open slowly if overloaded rather than snapping suddenly. Proof tested to 1,650 lbs (150% capacity) and rated for extreme cold (-45°C), this hoist is ready for the most demanding North American jobsites.

Features & Benefits

• Fully Repairable Design: Modular construction allows for the replacement of brakes, gears, and sheaves, extending asset life.
• Extreme Temperature Grease: Ensures smooth brake and pawl operation in temperatures ranging from -45°C to +80°C.
• Enhanced Safety Factor: Load tested to 150% of rated capacity (1,650 lbs), providing a safety margin 25% higher than standard requirements.
• Precision Load Control: The Weston-style brake allows for fractional-inch positioning, essential for fitting pipes and aligning flanges.
• Impact Resistant: Heavy-gauge steel gear cover protects internal components from drops and collisions.
• Ergonomic Handle: Rubberized grip provides positive traction and comfort for the operator during repetitive lifts.

Compatible Accessories: Zinc Plated Load Chain, Chain Bag, PTR050 (1/2 Ton Plain Trolley - Hook Mount), BC100P/BC100RE (1 Ton Beam Clamp)

Specifications

• Model Number: LH05005
• Working Load Limit (WLL): 1/2 Ton (1,100 lbs)
• Standard Lift: 5 ft.
• Load Chain Dimensions: 5.0 x 15.0 mm
• Load Chain Grade: Grade 80 Alloy
• Number of Falls: 1
• Pull to Lift Full Load: 93 lbs
• Headroom (Dimension C): 11.4 in.
• Handle Length (Dimension D): 8.9 in.
• Hook Throat Opening (Dimension G): 0.86 in.
• Net Weight: 8.0 lbs
