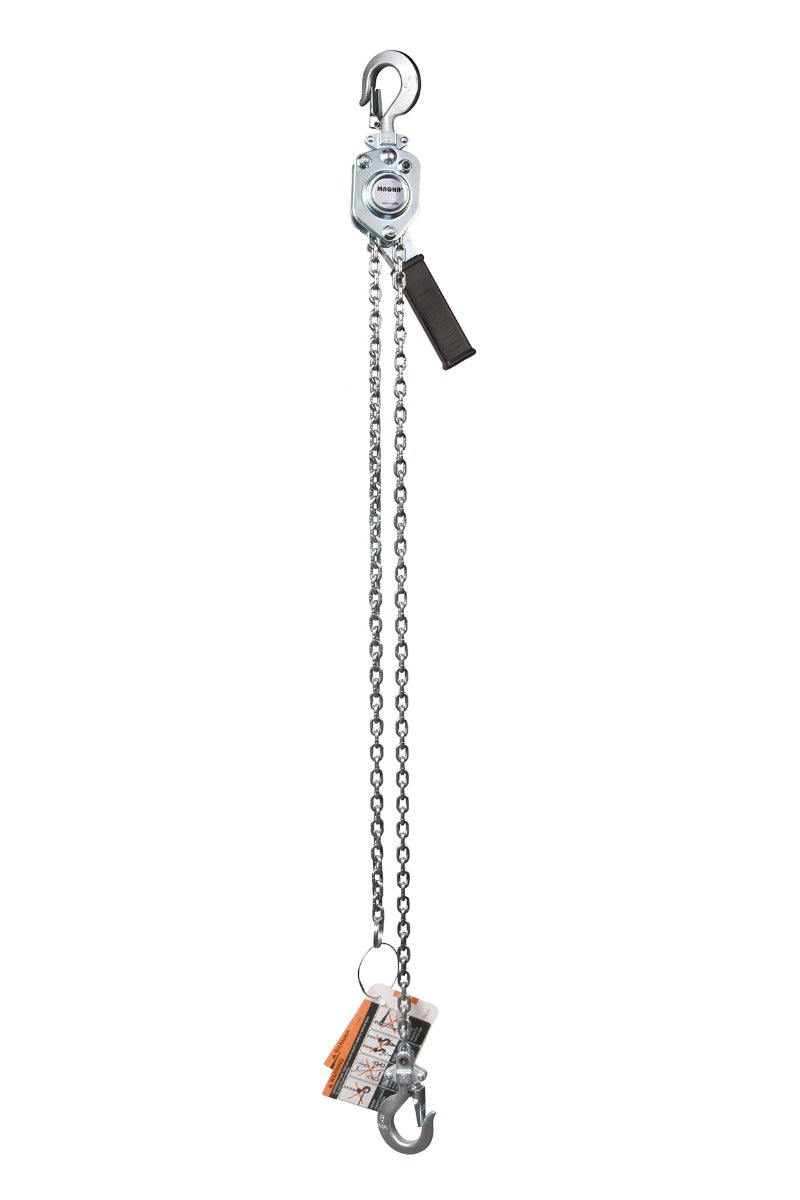

MAGNA Lifting Products 1/4 Ton Lever Hoist, 20 ft. Lift LH02520

The MAGNA LH02520 takes the portability of the "mini" lever hoist and adds an extended 20-foot lift, allowing for long-distance pulling and lifting in confined areas. Rated for 1/4 Ton (550 lbs), this unit fits easily into a toolbox but delivers industrial-grade performance. The rugged steel housing protects the internal gearing, ensuring durability on the job site.

This compact hoist is equipped with Grade 80 alloy load chain and features a Weston-style mechanical brake for secure load holding. It is lubricated with specialized grease for operation in temperatures as low as -45°C (-49°F). While the compact design of the 1/4 ton model is sealed and not fully repairable, it is rigorously load tested to 150% of its rated capacity to ensure maximum safety and reliability.

Features & Benefits

• Extended Reach: 20-foot lift allows for versatile rigging in overhead spaces.
• Ultra Compact: Small profile and light weight make it ideal for portable use.
• Cold Capable: Factory greased for performance down to -45°C (-49°F).
• Safety Tested: Proof loaded to 150% of capacity (827 lbs).
• Durable: All-steel construction withstands impact and rough handling.
• Easy Operation: Short handle requires minimal effort to lift full load.

Compatible Accessories: Zinc Plated Load Chain, Chain Bag, PTR050 (1/2 Ton Plain Trolley - Hook Mount), BC100P/BC100RE (1 Ton Beam Clamp)

Specifications

• Model Number: LH02520
• Working Load Limit (WLL): 1/4 Ton (550 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 4.0 x 12.0 mm
• Load Chain Grade: Grade 80
• Number of Falls: 1
• Pull to Lift Full Load: 55 lbs
• Headroom (Dimension C): 9.65 in.
• Handle Length (Dimension D): 5.90 in.
• Hook Throat Opening (Dimension G): 0.63 in.
• Net Weight: 7.8 lbs
