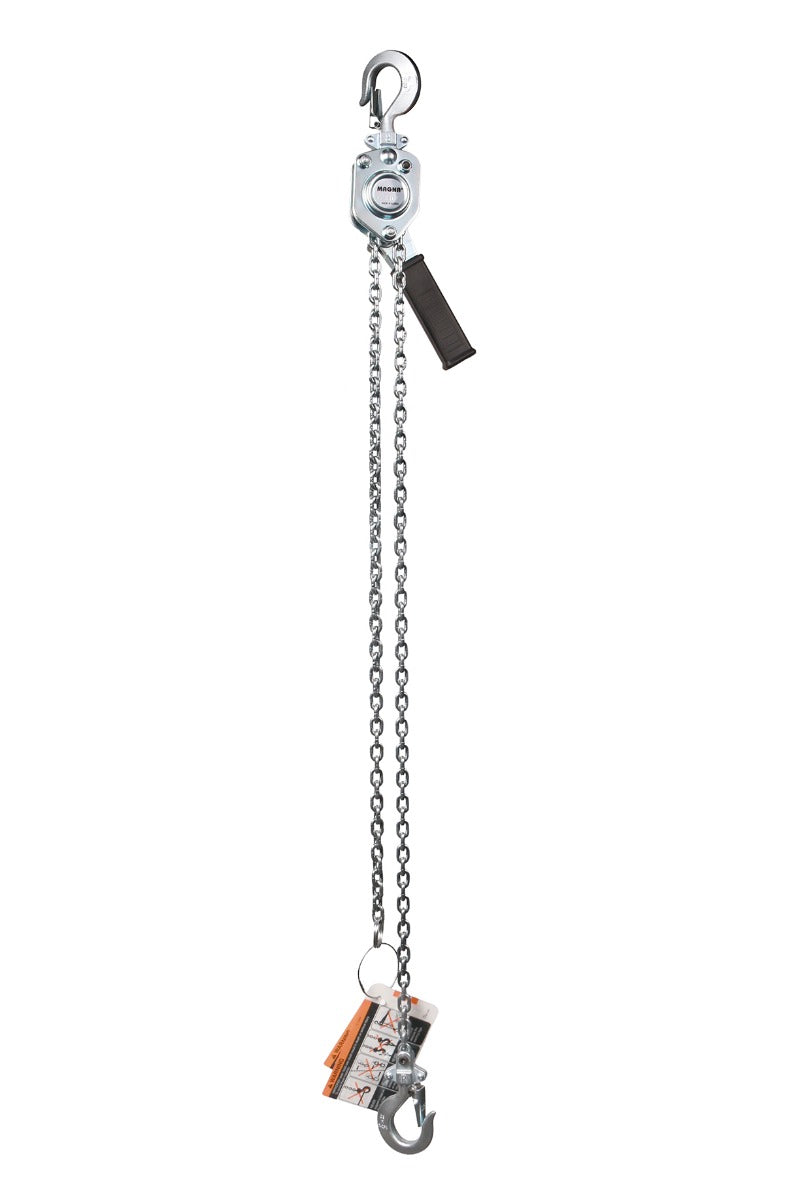

MAGNA 1/4 Ton Lever Hoist, 15 ft. Lift LH02515
The MAGNA LH02515 1/4 Ton Lever Hoist combines industrial-grade lifting power with extreme portability. Often referred to as a "mini" lever hoist, this unit offers a Working Load Limit (WLL) of 550 lbs while maintaining a compact profile that fits readily into a standard tool bag. It is the ideal solution for light-duty rigging, such as tensioning fencing, aligning pipes, or positioning motors in cramped machinery spaces.
Constructed in South Korea, the LH02515 features a rugged steel housing that protects the internal gearing from impact and debris. Unlike generic alternatives, this hoist is built for harsh environments, pre-lubricated with specialized grease that functions reliably in temperatures as low as -45°C (-49°F). While its compact, sealed design is not field-repairable, the unit is rigorously load-tested to 150% of its rated capacity (827 lbs) to ensure absolute safety and structural integrity right out of the box.
Features & Benefits
- Ultra-Compact Design: Small frame and short 5.9-inch handle allow operation in extremely restricted spaces.
- Cold Weather Performance: Factory-packed with low-temperature grease for operation down to -45°C (-49°F).
- Safety Tested: Each unit is proof-loaded to 150% of rated capacity to guarantee reliability.
- Positive Braking: Equipped with a Weston-style mechanical load brake for precise load holding.
- Durable Construction: All-steel frame and gear case provide superior impact resistance compared to aluminum or plastic housing.
- Ergonomic Operation: Requires only 55 lbs of pull force to lift the full rated load.
Compatible Accessories: Zinc Plated Load Chain, Chain Bag, PTR050 (1/2 Ton Plain Trolley - Hook Mount), BC100P/BC100RE (1 Ton Beam Clamp)
Specifications
- Model Number: LH02515
- Working Load Limit (WLL): 1/4 Ton (550 lbs)
- Standard Lift: 15 ft.
- Load Chain Dimensions: 4.0 x 12.0 mm
- Load Chain Grade: Grade 80
- Number of Falls: 1
- Pull to Lift Full Load: 55 lbs
- Headroom (Dimension C): 9.65 in.
- Handle Length (Dimension D): 5.90 in.
- Hook Throat Opening (Dimension G): 0.63 in.
- Net Weight: 6.7 lbs
