Leading Edge Retractable Kit - KIT190
Leading Edge Retractable Kit - KIT190
Orders for this product usually ship in 7-14 business days.

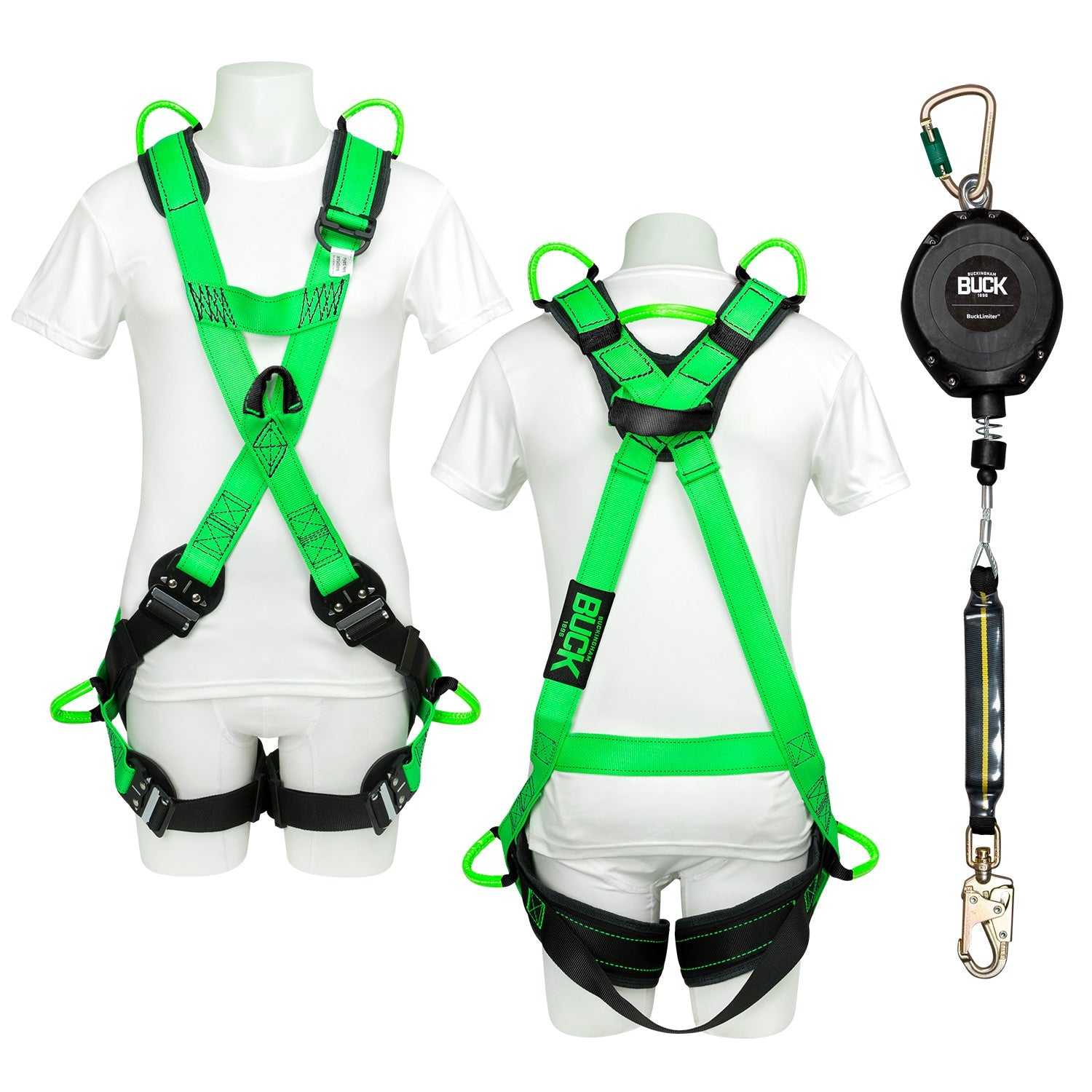

A Leading-Edge fall protection kit that features a lightweight 30’ steel cable Bucklimiter™ retractable lifeline and the BuckTriever™ full-body harness.
The 5206-30 meets the ANSI Z359.14-2014 standard and is marked to 310 lbs. with a Class B rating.
The leading-edge retractable lifeline was designed for providing protection to the user in leading edge applications, especially when working near sharp edges, while the BuckTriever™ full-body harness was designed specifically for confined space rescue situations.
Retractable features:
- The 30’ steel cable Bucklimiter™ retractable lifeline is particularly meant for providing Leading Edge protection to the user when working horizontally near sharp edges.
- Constructed in such a way that if subjected to contact with a sharp edge in the event of a fall, the retracted lanyard remains intact, while arresting the fall immediately.
- Equipped with an external shock pack (with protective cover) which reduces the dynamic load impact felt on the user in the event of a fall, reducing the impact of fall average arresting forces to less than 900 lbs.
- Steel locking snap hook lifeline connector – 1706.
- Light, yet rugged composite housing.
Harness features:
- The harness comes w/an energy-absorbing lanyard breakaway attachment (ensure ANSI compliance if removing back pad) & leg strap retainers to use if needed.
- Web loop sternal attachment.
- Quick connect legs straps for easy donning.
- 3 reflective retrieval loops.
- 2 reflective loops at hips.
- Padded leg and shoulder straps.
Product Specifications:
| Part Number: | KIT190 |
| Part Name: | Leading Edge Retractable Kit |
| Harness | |
| Product Number: | 603S8Q211 |
| Product Name: | The BuckTriever™ |
| Material: | Nylon |
| Chest Strap: | Interlocking |
| Leg Strap: | Quick Connect |
| Thread Stitching: | Nylon |
| Torso Adjustment: | No |
| Dorsal Attachment: | Nylon Web Reflective Strap |
| Shoulder/Leg Pads: | Yes |
| Shoulder/Leg Pad Type: | Padding |
| Harness Type: | X |
| Frontal Attachments: | Yes |
| Retrieval Attachments: | Yes |
| Size: | Small – X-Large |
| Positioning D-rings: | No |
| Body Belt Attachment: | No |
| Product Type: | Retrieval |
| User Weight Capacity: | 130 – 310 lbs. |
| Weight: | 4 lbs. |
| Standards: | ASTM F887, ANSI Z359 |
| Retractable | |
| Product Number: | 5206-30 |
| Product Name: | 30' Steel Cable Leading Edge BuckLimiter™ |
| Housing Type: | Composite |
| Lifeline Material: | 3/16" Steel Cable |
| Length: | 30' |
| Connector / Housing: | None |
| Connector / Lifeline: | Steel Swivel Locking Snaphook – 1704 |
| Shock Absorbing Pack: | Yes - 6' |
| Product Type: | Fall Arrest |
| User Weight Capacity: | 310 lbs; Class B rating. |
| Weight: | 9.3 lbs. |
| Standards: | ANSI Z359.14 |
Instructions & Warnings:
Harness Wearing Instructions
5206 Series Instructions
