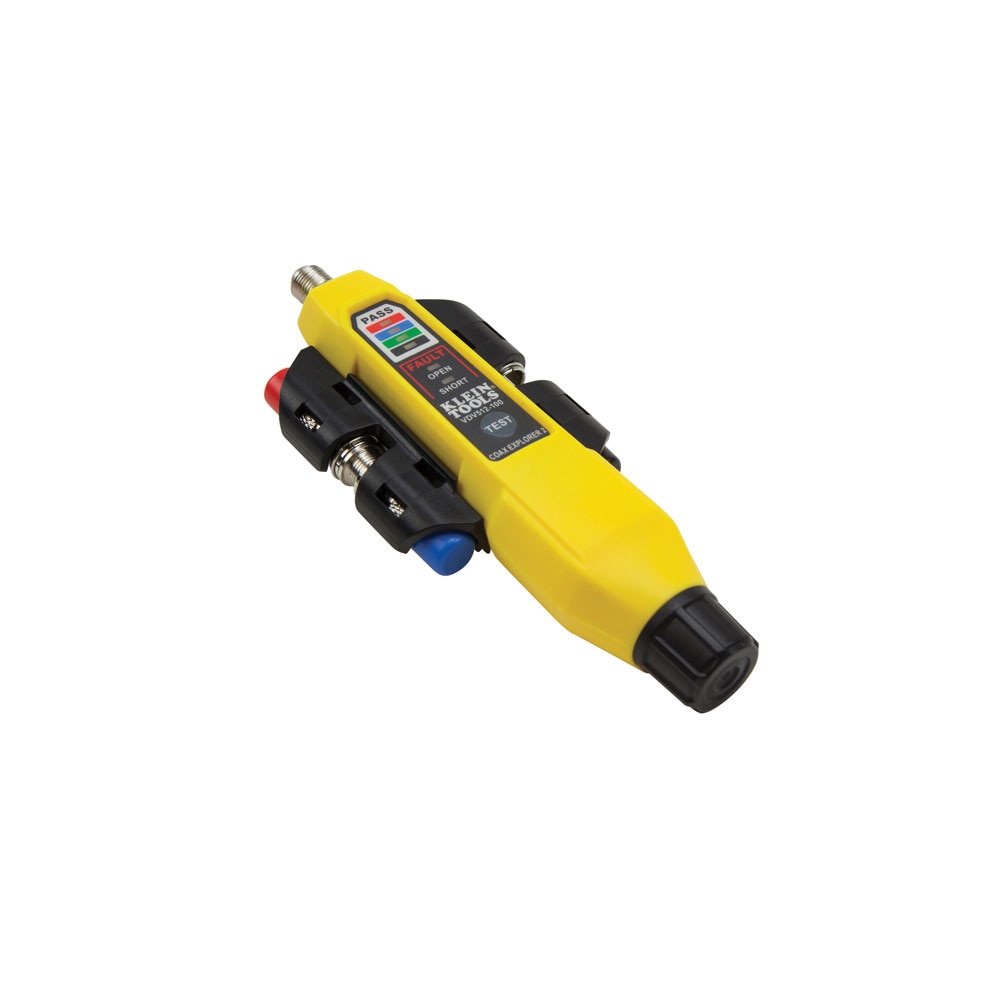

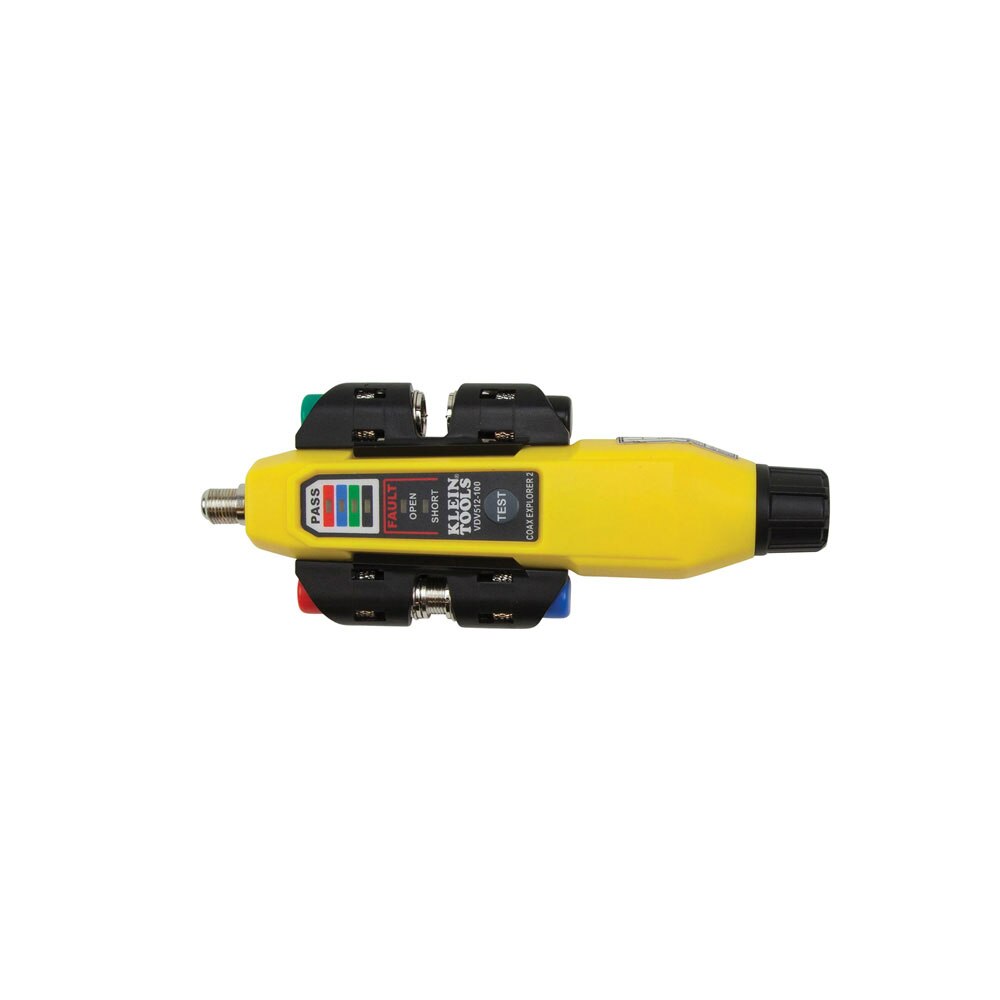

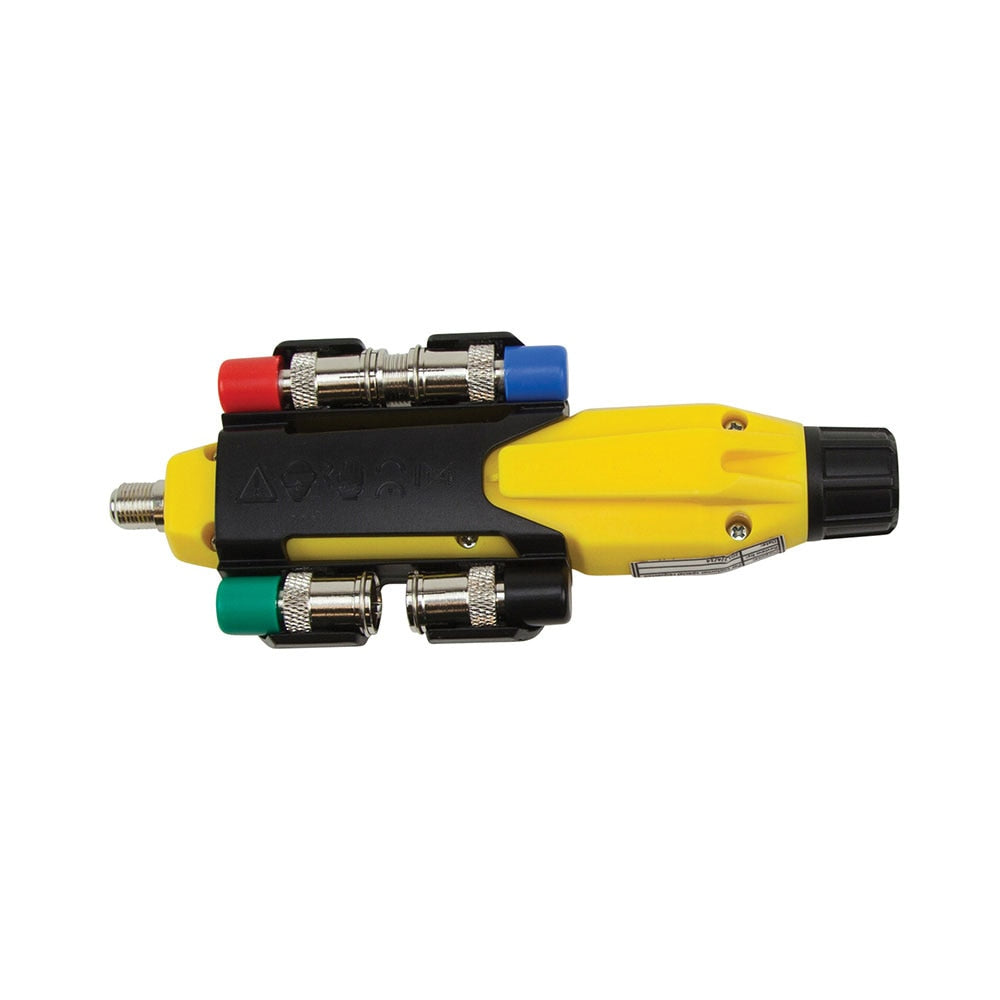

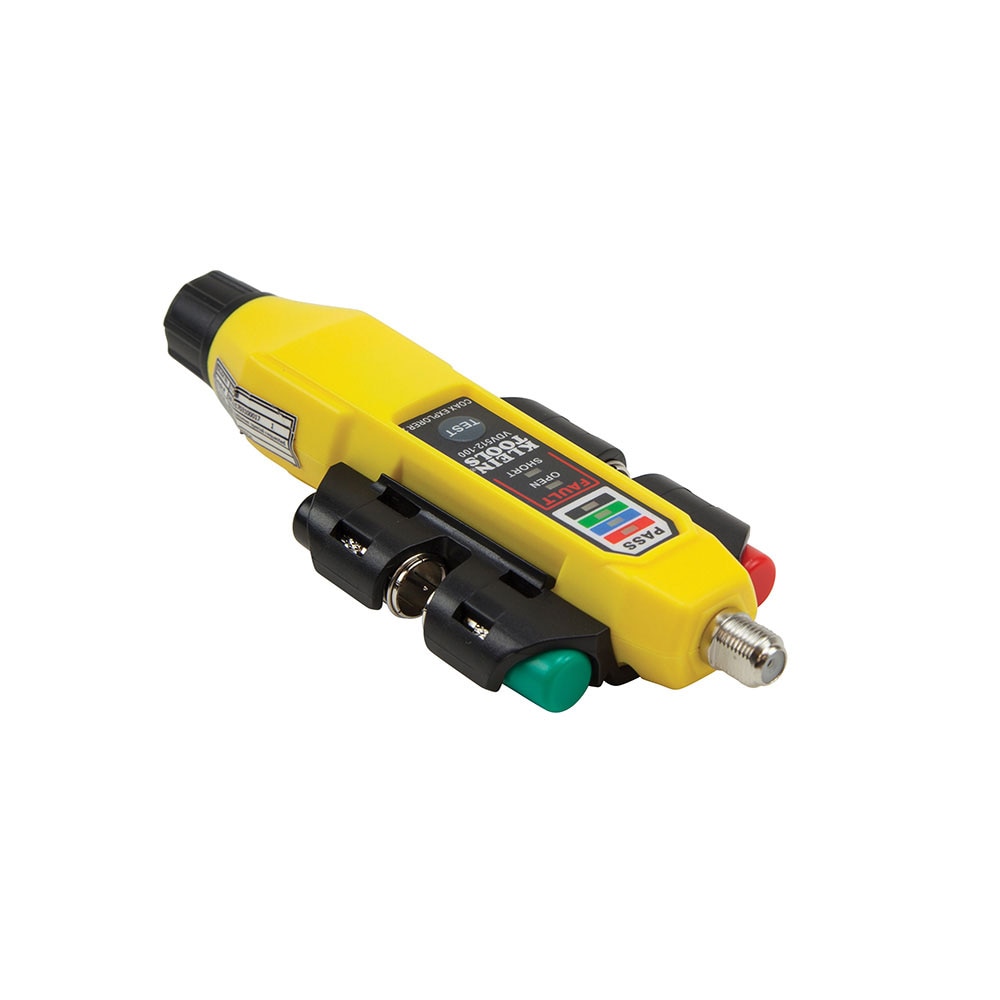

Klein VDV512-101 Coax Explorer 2 Tester with Remote Kit

INCLUDES:
• (2) AAA Batteries
• (4) Colored Push-on Remotes
• (1) F-Adapter

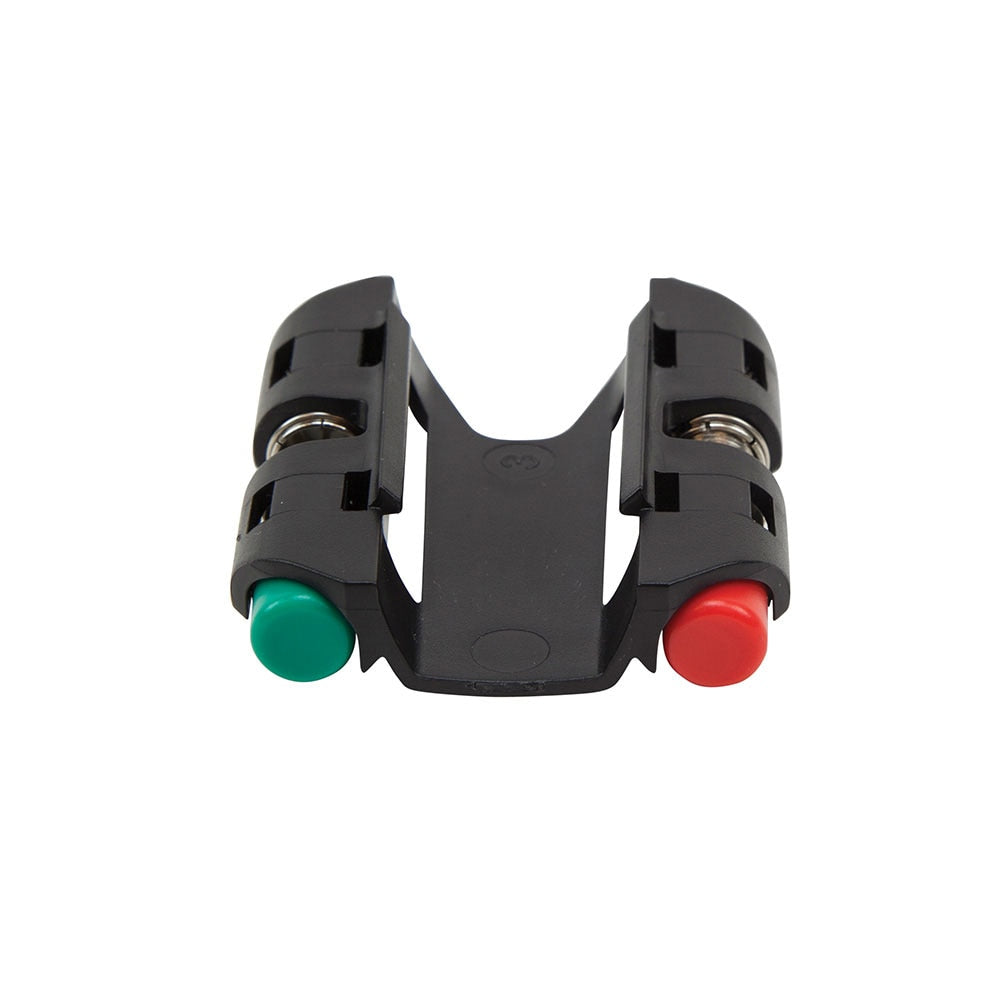

• (1) Snap-on Remote Holder

FEATURES:
• Tests coaxial cable and maps up to 4 locations
• Simple push button operation
• Easy-to-read LED panel indicates PASS, OPEN or SHORT conditions and the location of each cable
• Color-coded push-on remotes allow for up to four cables to be tested and mapped

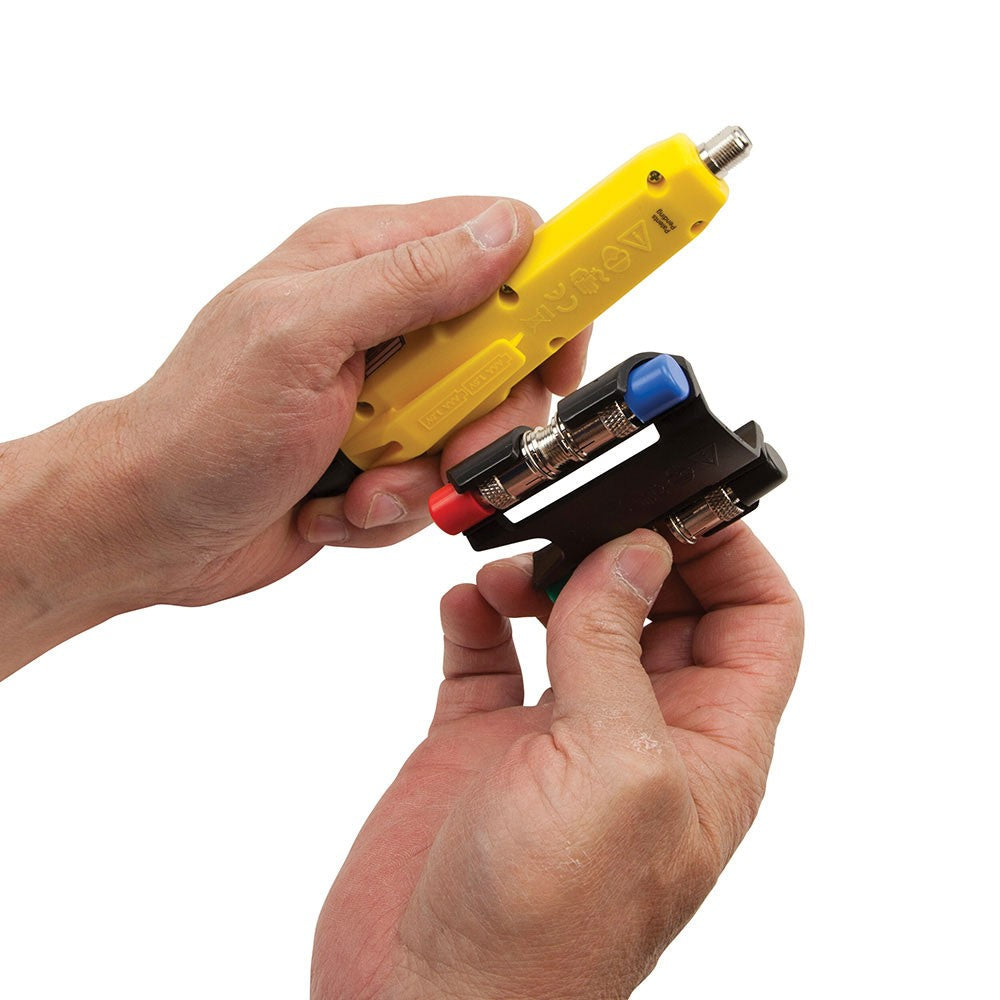

• Test remotes and F-adapter snap into the remote holder and clip onto the tester for easy access and storage
• Includes removable, snap-on remote holder, 4 color-coded push-on remotes, F adapter and batteries
• Uses 2 replaceable AAA batteries
• Note: Does not work through cable splitters

SPECIFICATIONS:
• Application: Wire Tracing of Coaxial Cables
• Cable Type: RG59, RG6/6Q, RG7, RG11
• Overall Length: 5.75" (14.6 cm)
• Overall Height: 1" (2.5 cm)
• Overall Width: 2.313" (5.9 cm)
• Test-n-Map ID Remotes: 4 (Included)
• Location ID: 4
• Batteries: 2 x AAA
• Connection & Adapter Types: Coax F Adapters
• Included: Batteries, 4 Colored Push-on Remotes, F-adapter, Snap-on Remote Holder
• Weight: 4.8 oz (136 g)

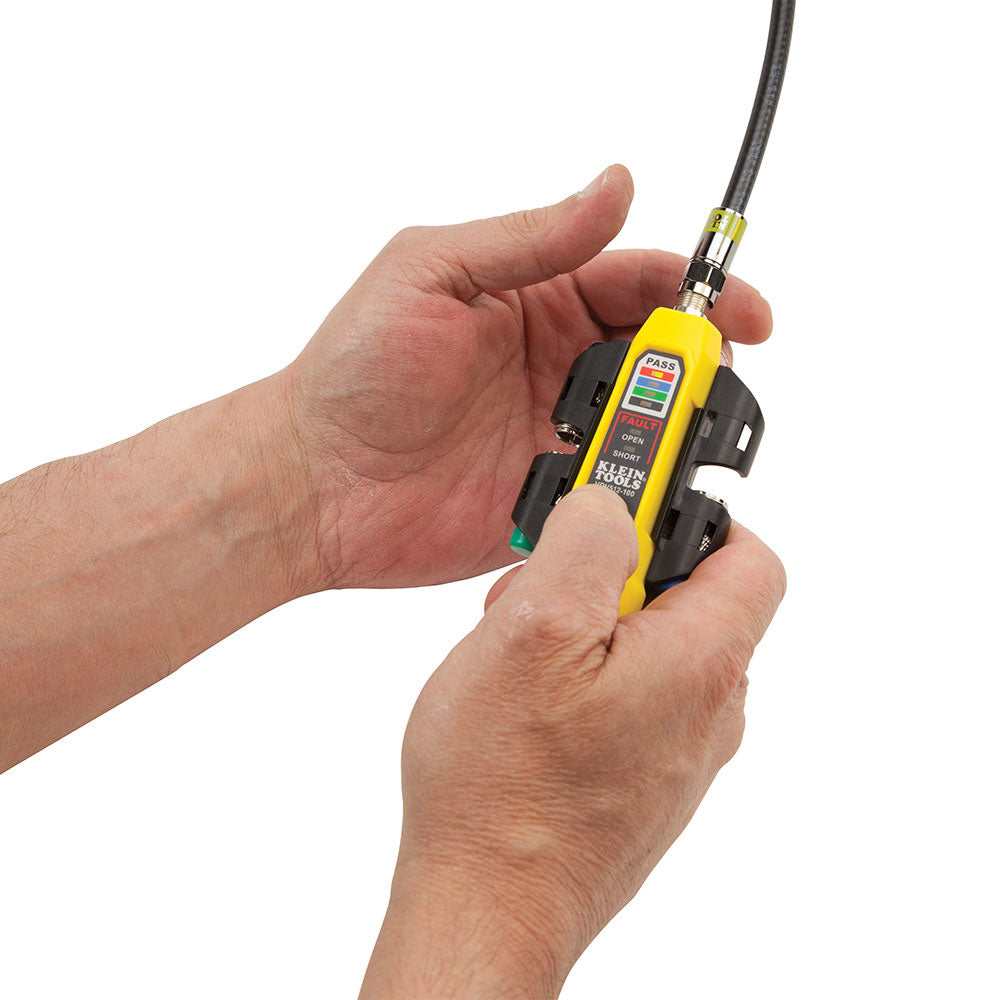

The Klein Tools Coax Explorer® 2 verifies proper continuity of F-connector coaxial cables and maps their location. The color-coded remotes allow for up to four cables to be tested and mapped, displaying cable status via LED indicators - PASS, OPEN, or SHORT - that also identify the cable/remote location. This compact tester fits in your pocket.
