Klein VDV500223 Digital Tracing Probe
Klein VDV500223 Digital Tracing Probe

INCLUDES:

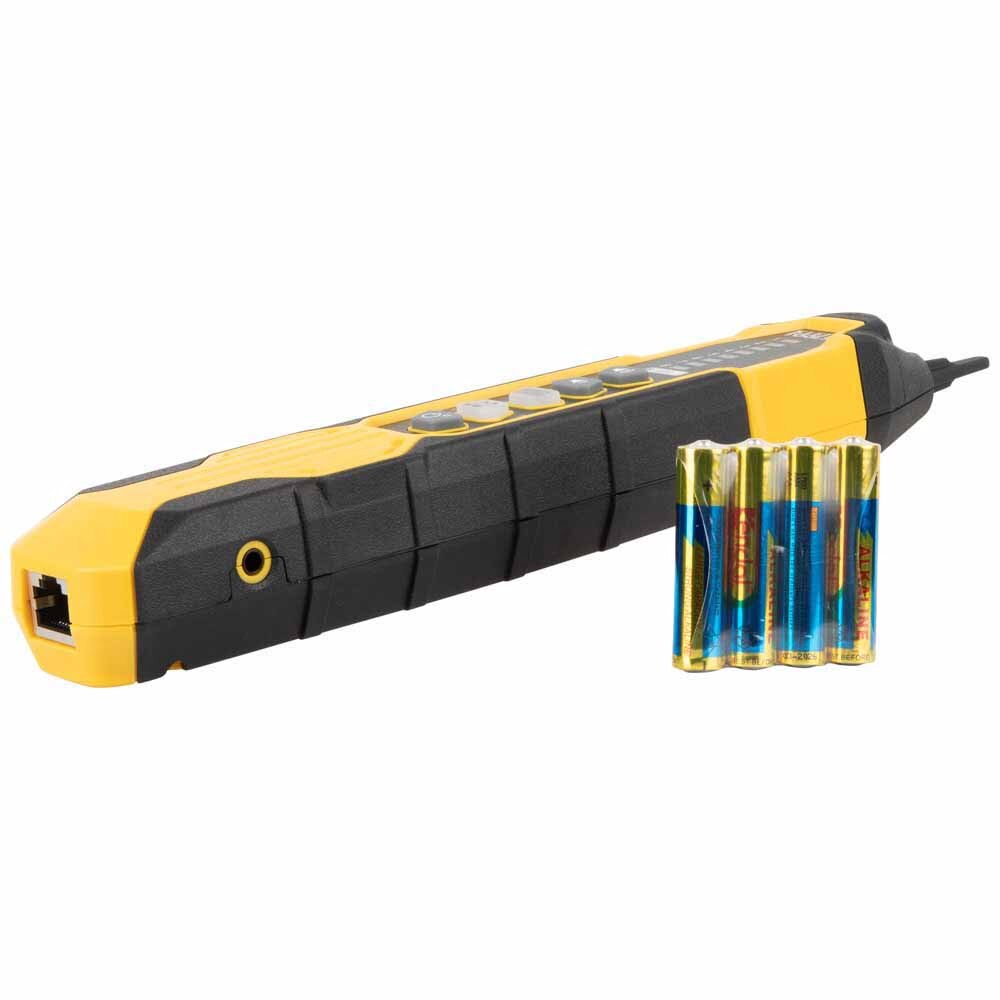

• (1) Tracing Probe
• (1) 4 x AAA Batteries
FEATURES:
• Digital Probe traces non-energized wiring when used with the Digital Tone Generator (Cat. No. VDV500-163 required; sold separately)
• Trace and locate cables on an active network when used with the Digital Tone Generator (Cat. No. VDV500-163 required; sold separately)
• Work light for use in dark spaces
• 3.5 mm headphone jack for use in noisy environments (headphones not included)

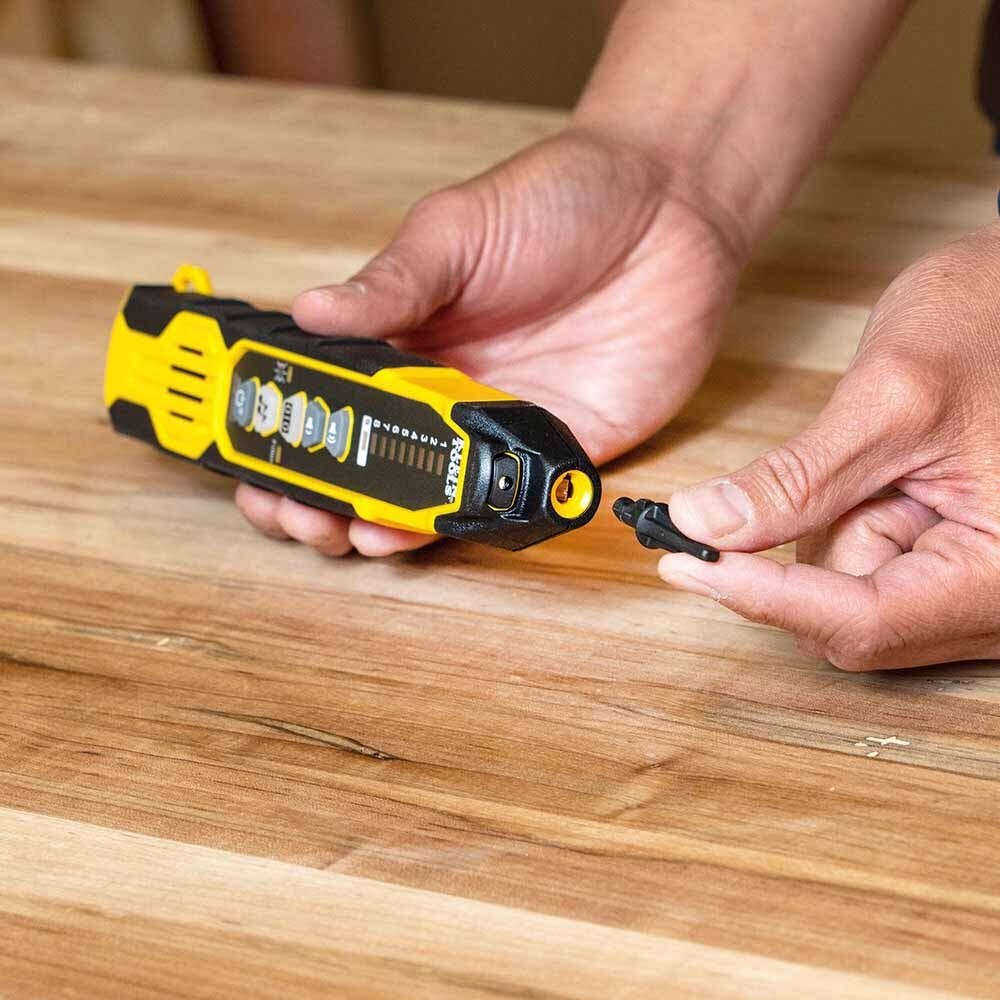

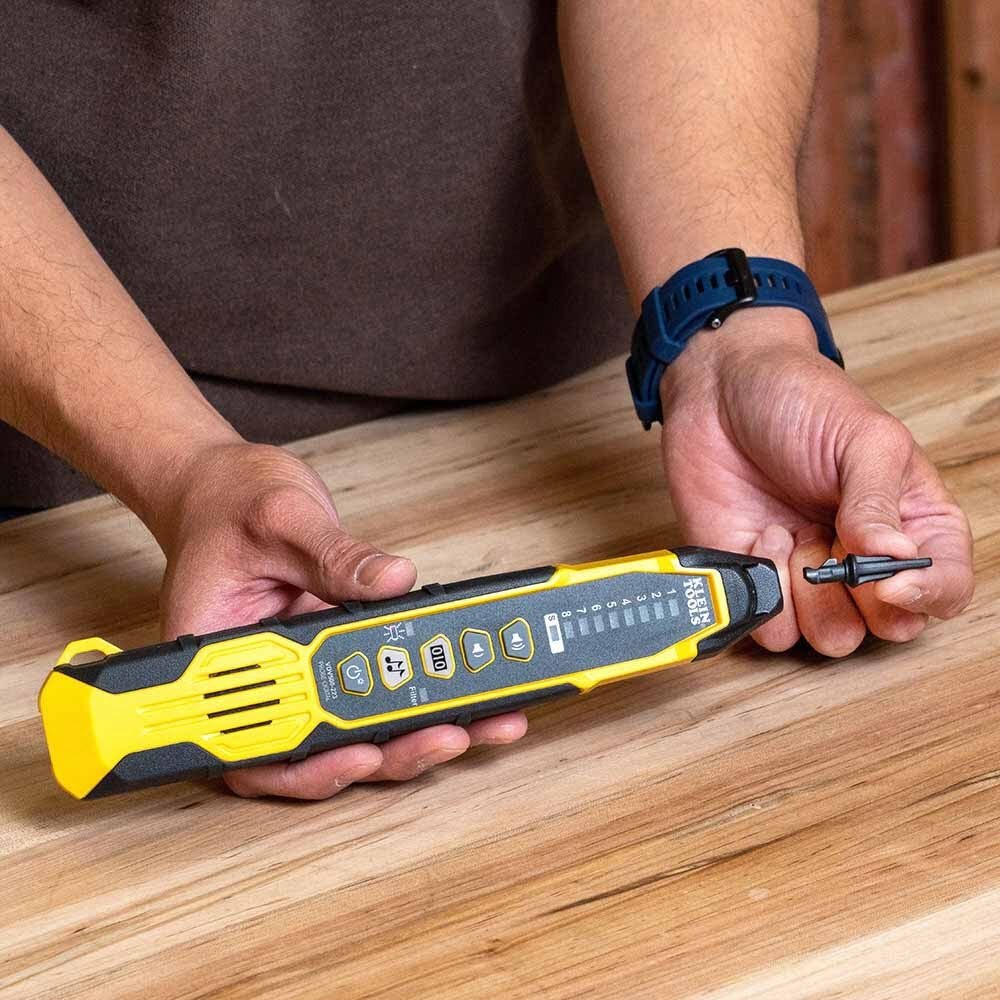

• Tool-less, twist-and-lock replacement tip (Cat. No. VDV999-070) available
• 60Hz filter for accurate tracing, works with Klein's Scout® Pro and Lan Scout® Jr. testers
• Wire mapping capabilities to check Pin-to-Pin connections with shield detection when used with the Digital Tone Generator (Cat. No. VDV500-163 required; sold separately)
SPECIFICATIONS:
• Type: Digital Wire Tracing
• Application: Wire Tracing
• Special Features: Work Light, Stay On Power Button
• Material: ABS
• Batteries: 4 x AAA
• Battery Life: 20 hr
• Low Battery Indicator: Yes
• Power On LED Indicator: Yes
• Auto-Power Off: Yes
• Adjustable Volume: Yes
• Amplifier Overload Indication: No
• Continuity Testing: No
• Self-Storing Remote: No
• Visual Notification: LED
• Replaceable Tip: Yes

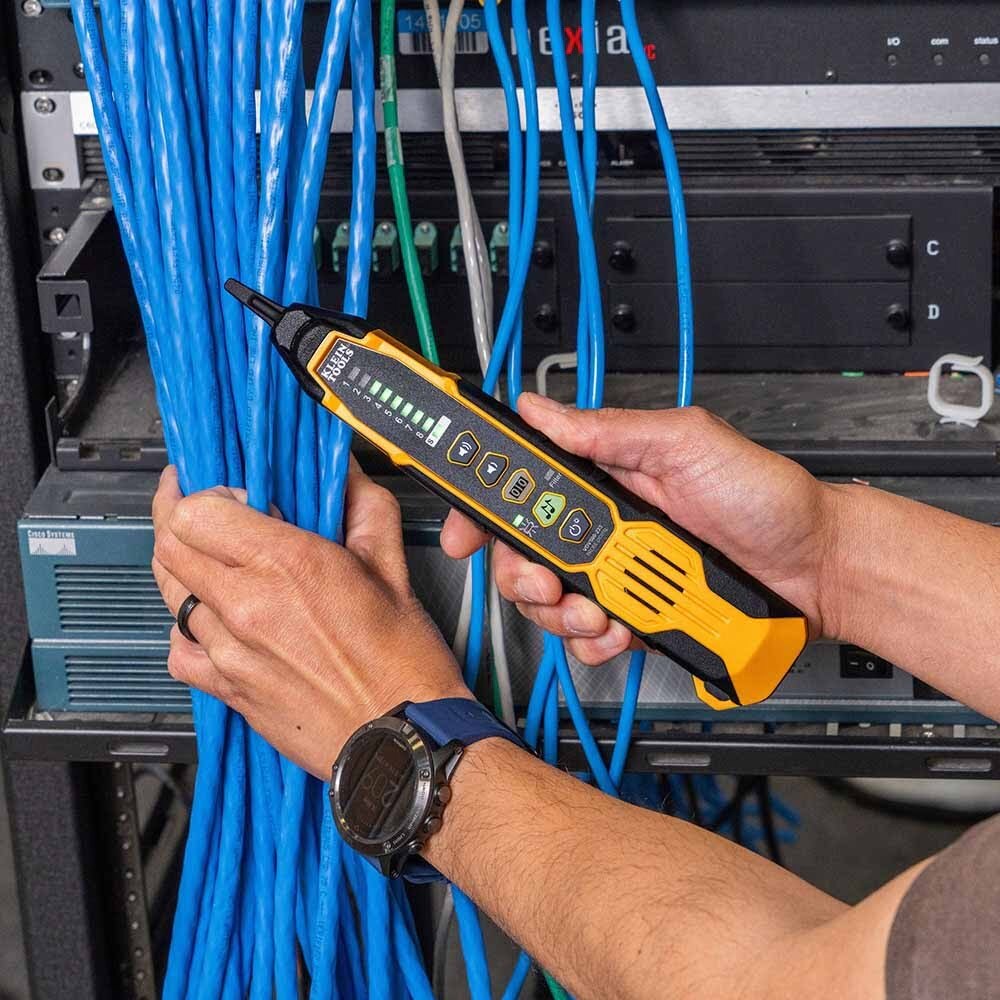

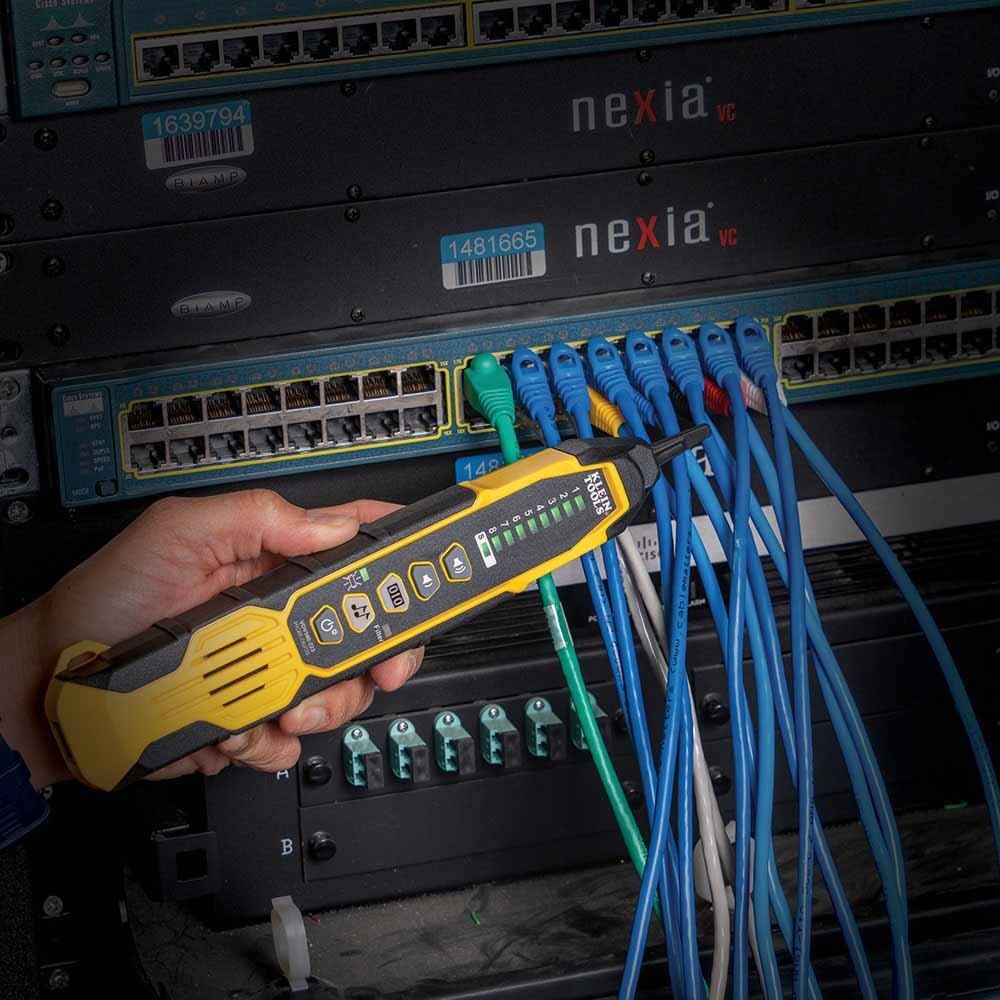

Use the Klein Tools Digital Tracing Probe to trace cables and wires on active and non-active networks when used with the Digital Tone Generator (Cat. No. VDV500-163; sold separately). It features a responsive, durable, replaceable non-metallic, conductive tip and a work light for use in dark spaces. A headphone jack allows for headphone (not included) use in extreme noise environments.
