Klein VDV026813 Cable Installation Kit for Pass-Thru

INCLUDES:
• (1) Tester
• (1) Crimper
• (3) Connectors
• (1) Pouch

FEATURES:
• Cable Tester Kit includes the components needed to terminate data cables using time saving Pass-Thru™ technology
• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
• Certified for PoE+

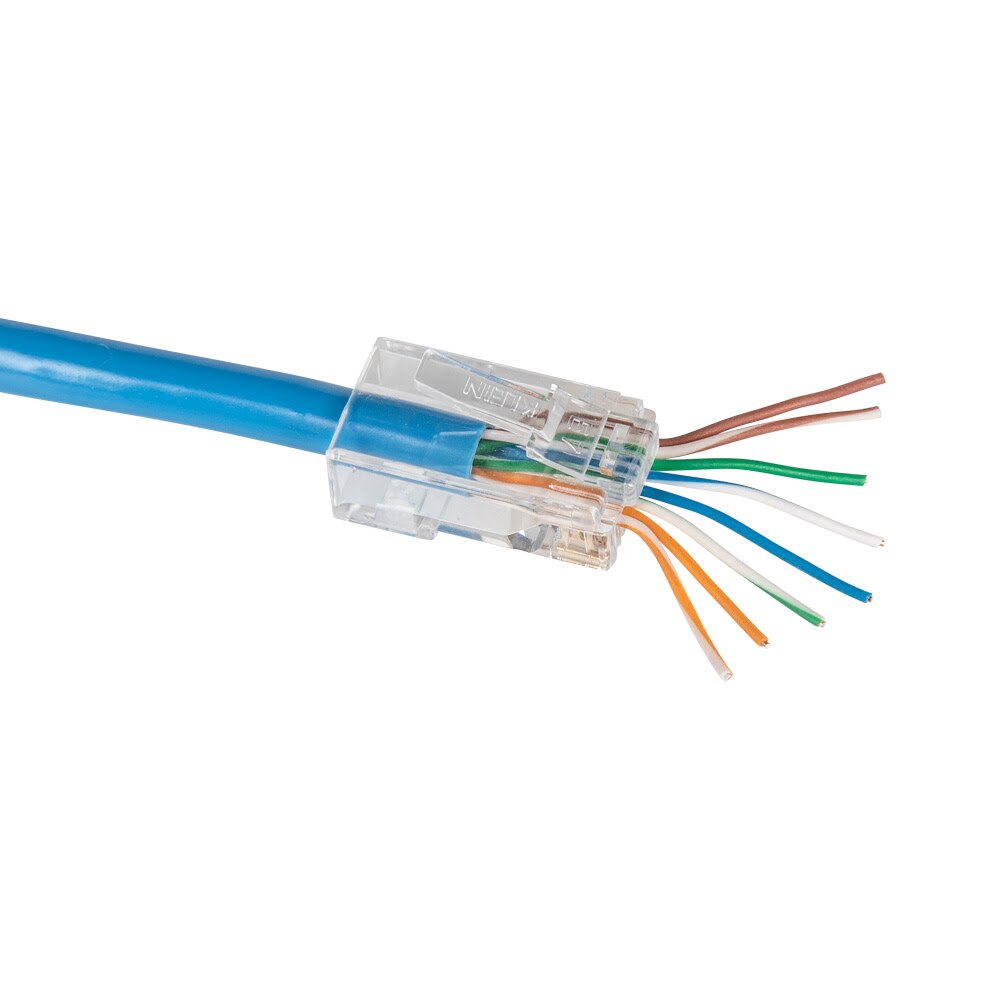

• CAT5e/CAT6 cables easily pass through connector to visually ensure that wires are in the correct order for consistent and secure terminations

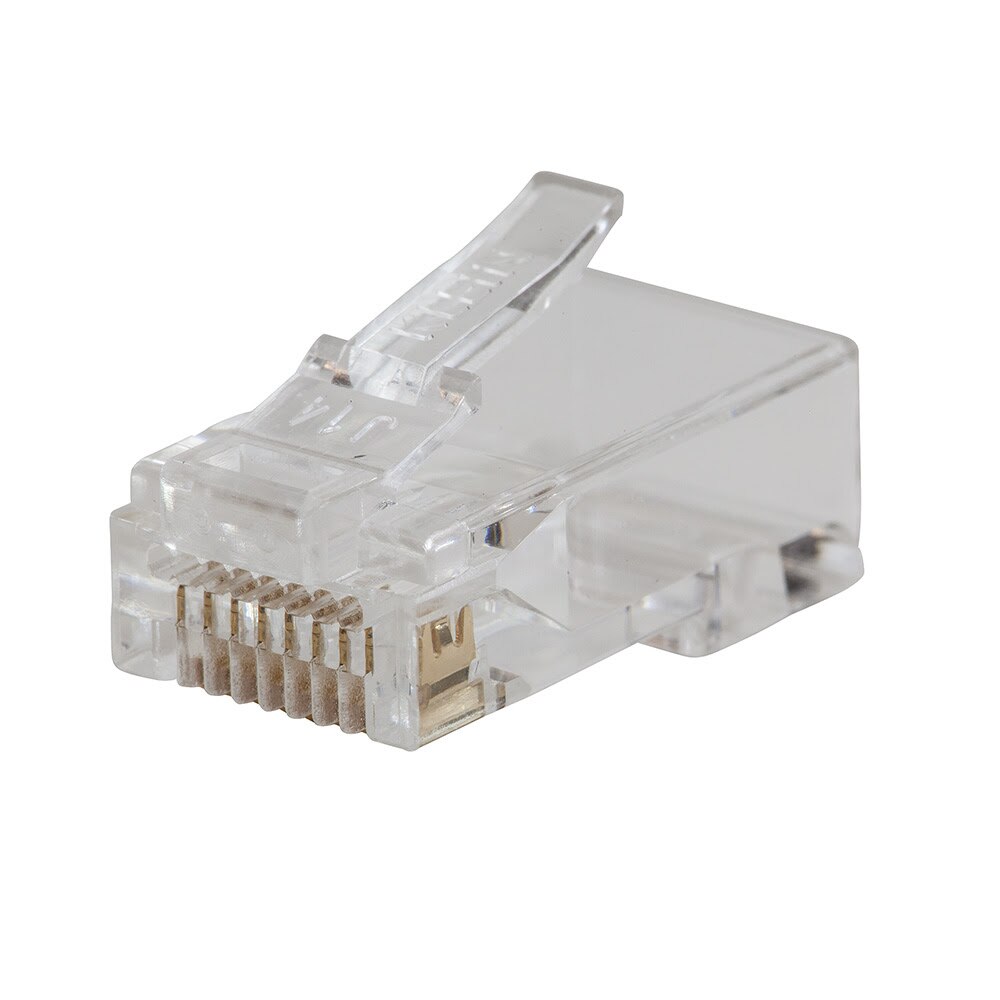

• 8 position, 8 contact Pass-Thru™ style data plug for solid or stranded cable

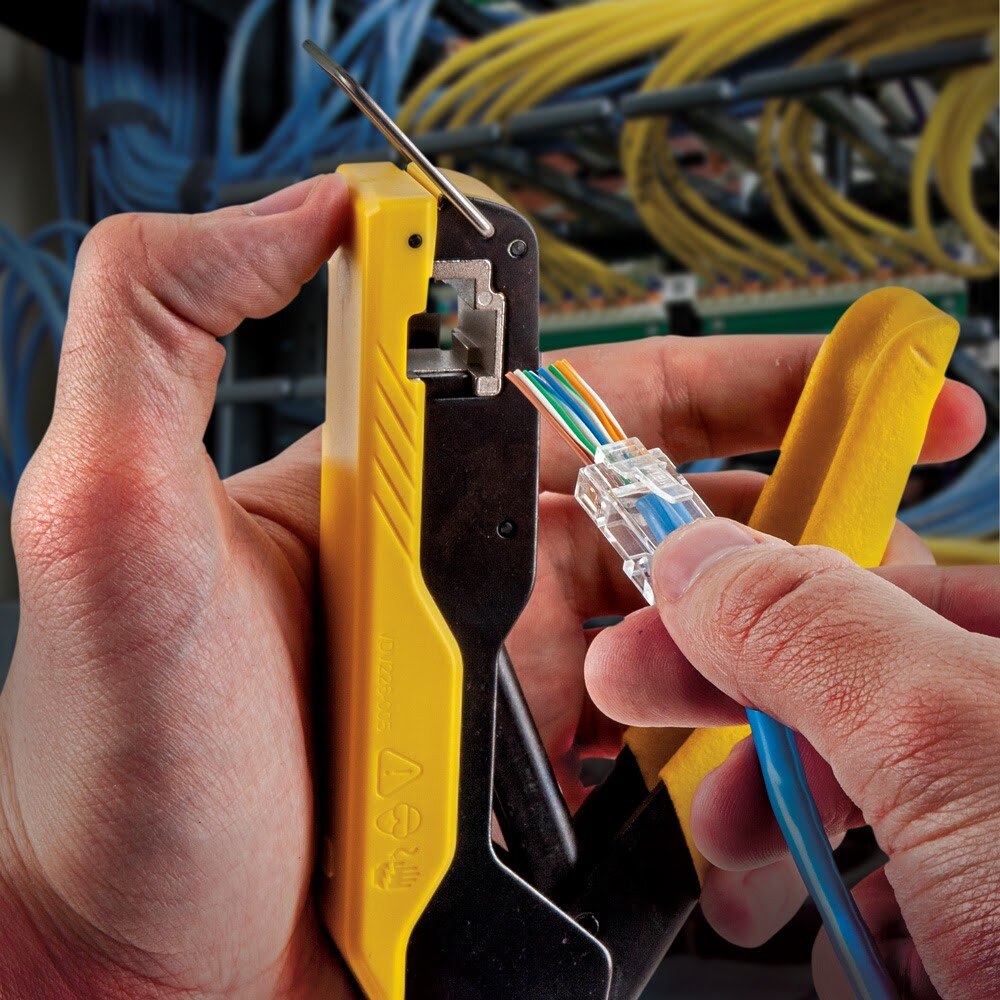

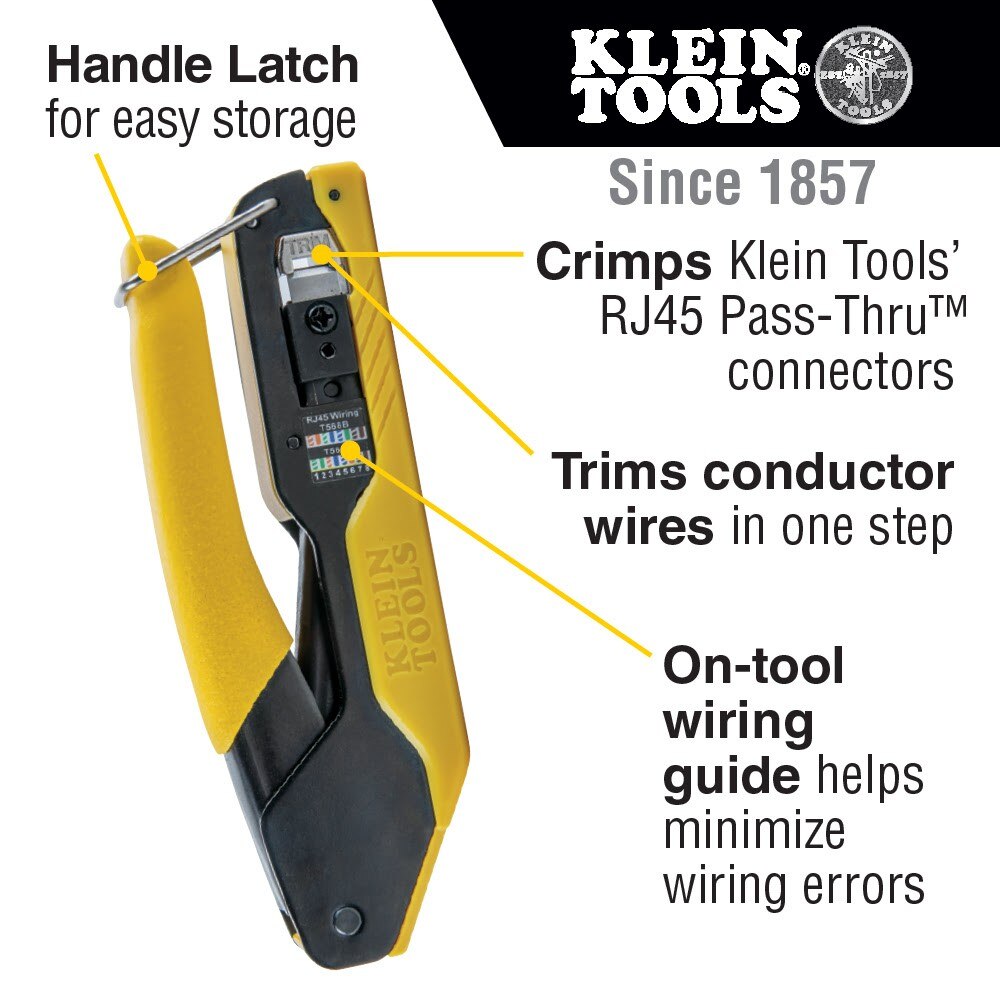

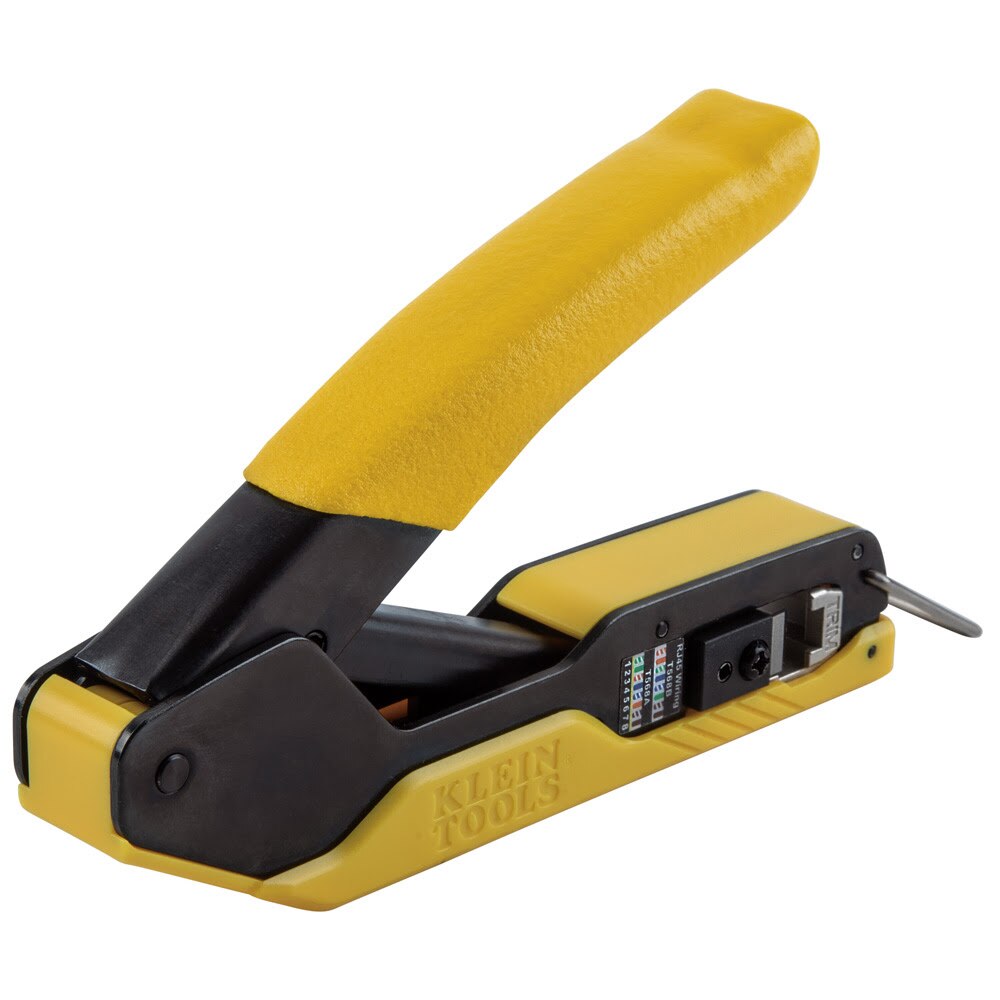

• Fast, simple RJ45 Pass-Thru™ Crimper (Cat. No. VDV226-005) crimps and trims Klein Tools RJ45 Pass-Thru™ connectors onto data cables (round STP / UTP cables)

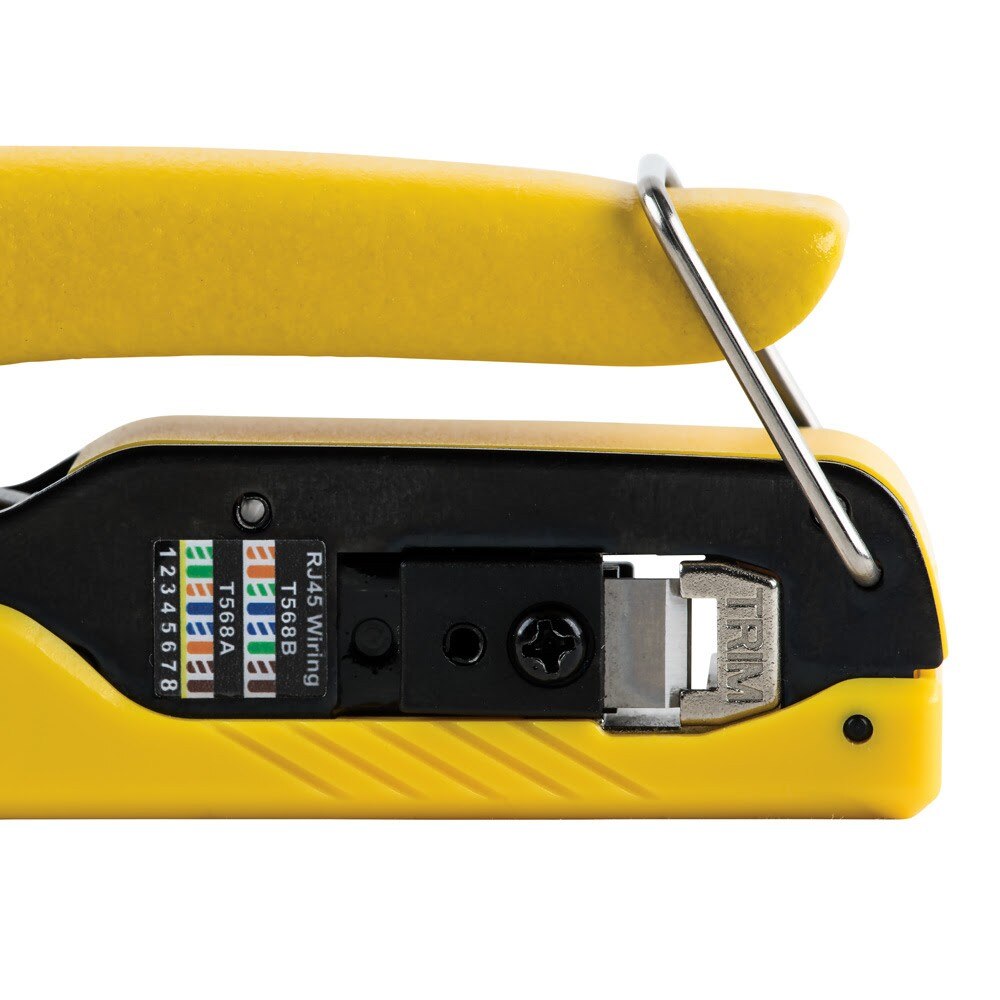

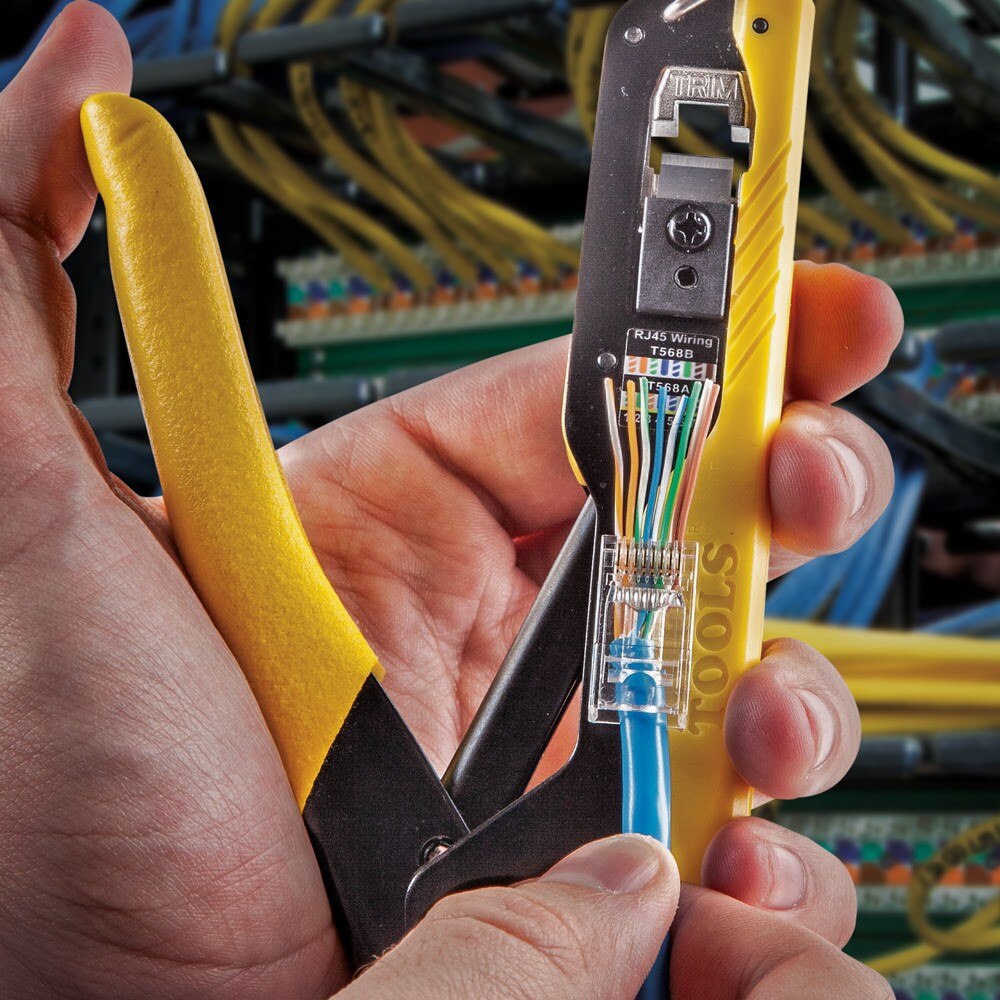

• Wiring guide on crimper helps minimize wiring errors

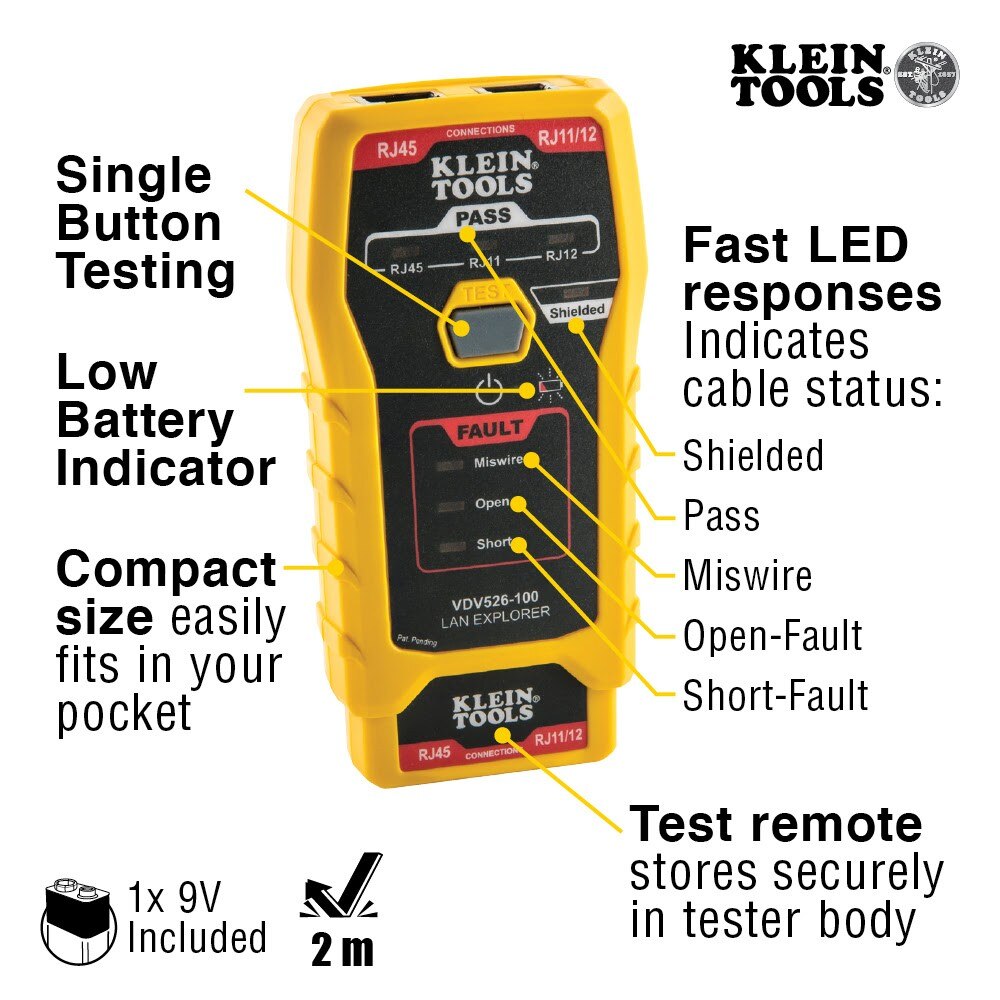

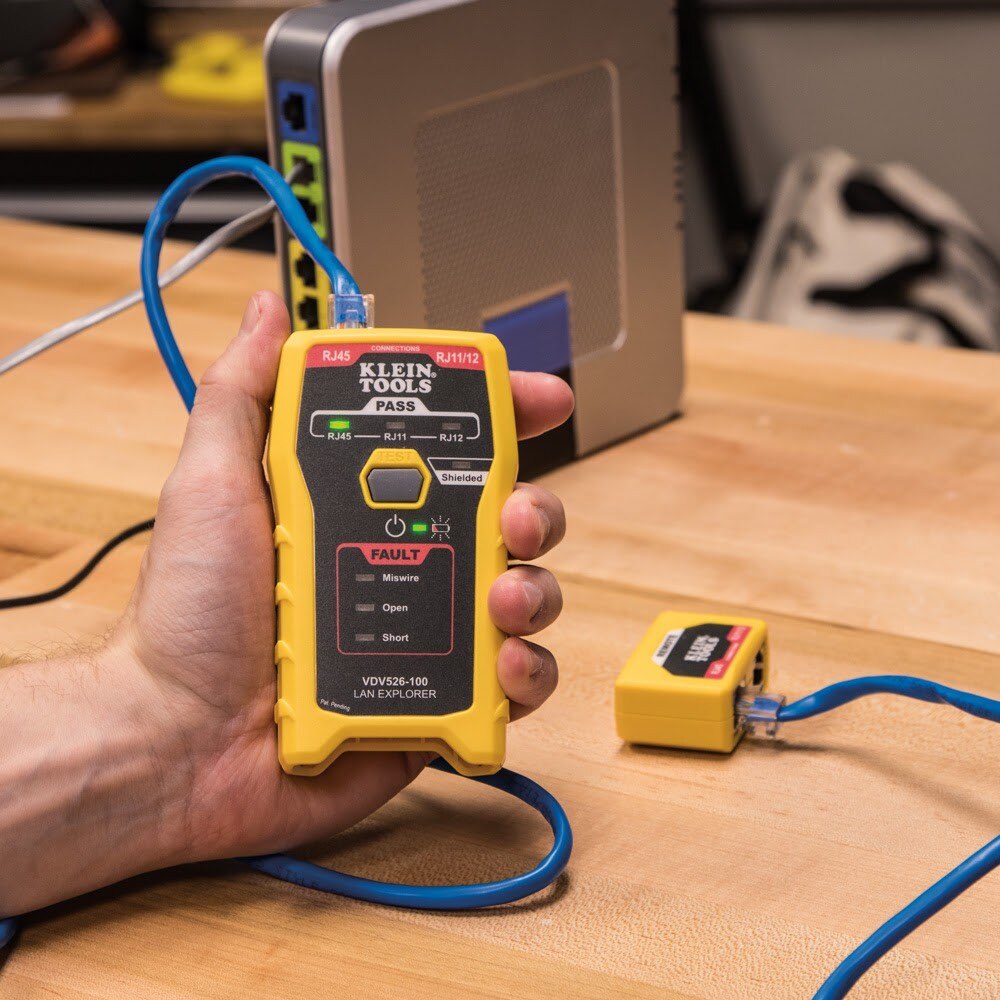

• Cable tester (Cat. No. VDV526-100) with single button testing of terminated voice and data cables
• Test CAT3, CAT5e and CAT6/6A cables
• Fast LED responses indicate cable status (Pass, Miswire, Open-Fault, Short-Fault, and Shield)
• Compact tester easily fits in your pocket

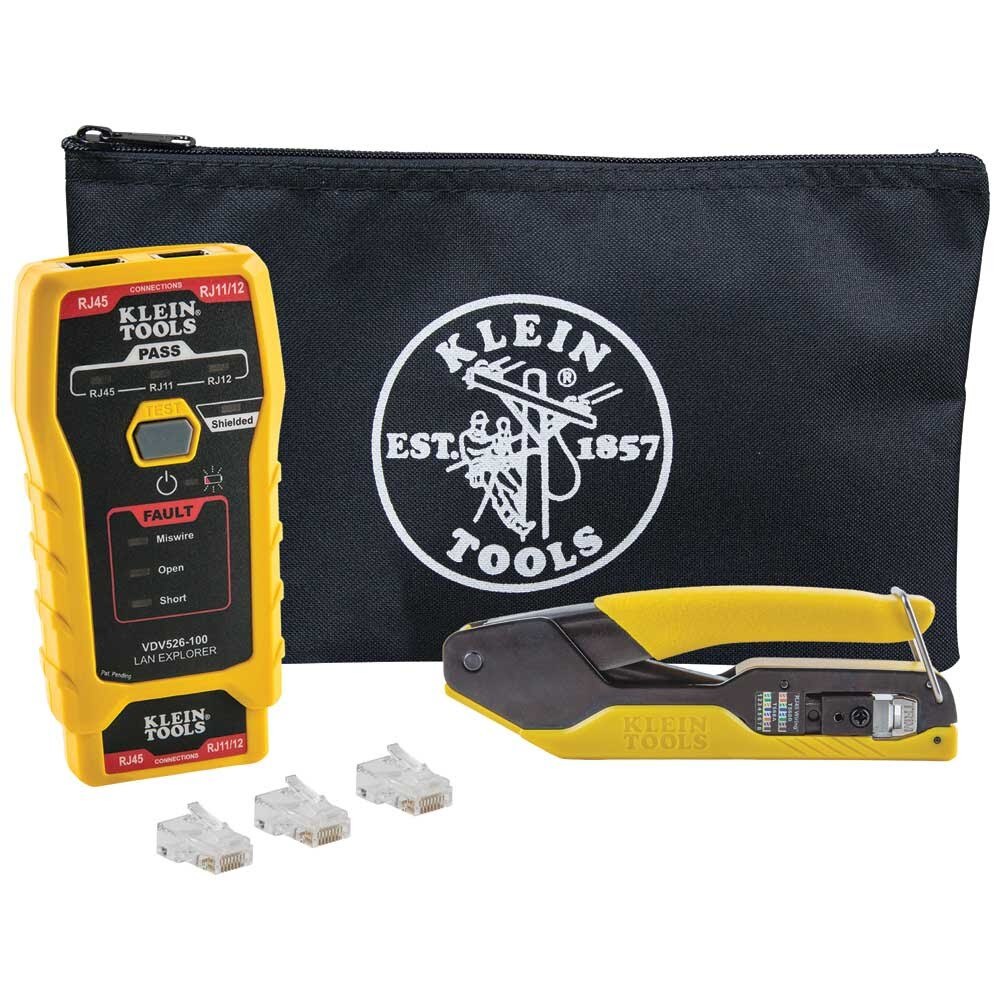

• Includes tester, crimper, Pass-Thru™ connectors and USA-made zippered pouch for storage

SPECIFICATIONS:
• Type: Cable Installation Kit
• Application: Pass-Thru™ Installation
• Special Features: Exclusive Pass-Thru™ Connectors
• Overall Length: 5" (13 cm)
• Overall Height: 15.2" (39 cm)
• Overall Width: 4" (10.2 cm)
• Material: High Carbon Steel, Polycarbonate Plastics, Stamped Steel, Vinyl
• Batteries: 1 x 9V
• Battery Life: Active: 80 hr; Standby: 3.5 yr.
• Drop Protection: 2' (0.6 m)
• Supported Remotes: Single, Stored on Tester
• Connection & Adapter Types: RJ45, RJ11/12
• Display: LED
• Multiple Style Tone Generator: No
• Cable Type: CAT3, CAT5e, CAT6/6A
• Cable Identification: No
• Test & Measure Types: Pin to Pin Wiremap; Shield
• Included: Tester, Crimper, Connectors, Pouch


This Pass-Thru™ Cable Installation Kit includes the tools needed to connect and test Klein Tools' RJ45 Pass-Thru™ connectors onto category cables. Test CAT3, CAT5e and CAT6/6A cables with the LAN Explorer® Data Cable tester. The kit includes the tester, a Pass-Thru™ crimper, a pack of 50 CAT5e/CAT6 Pass-Thru™ connectors and a zippered storage pouch.
