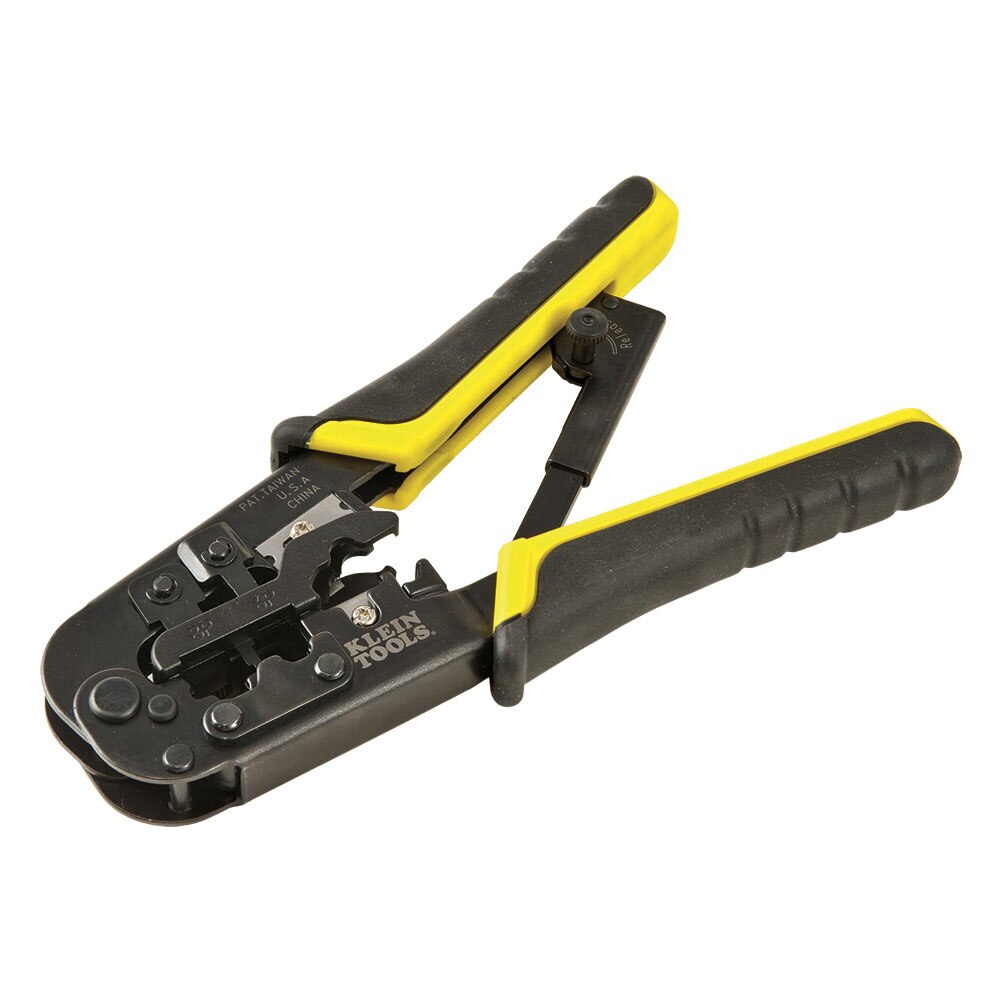

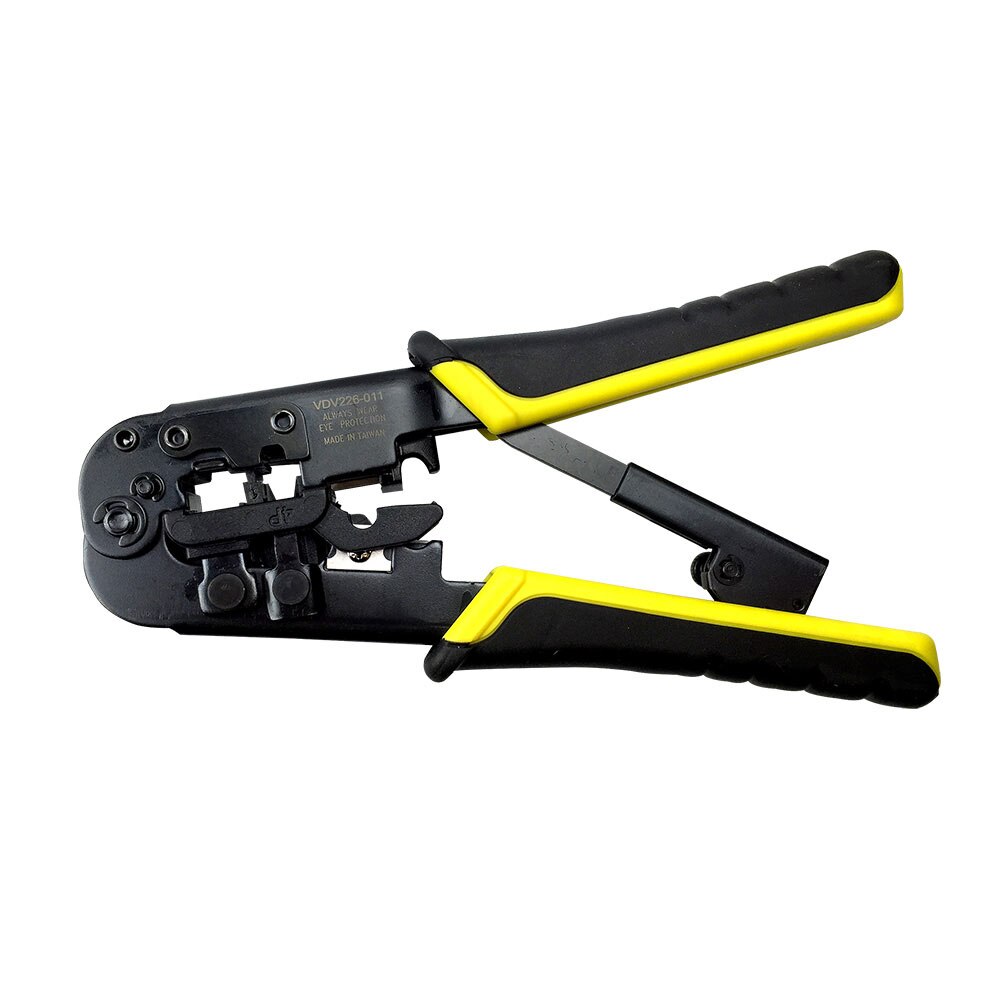

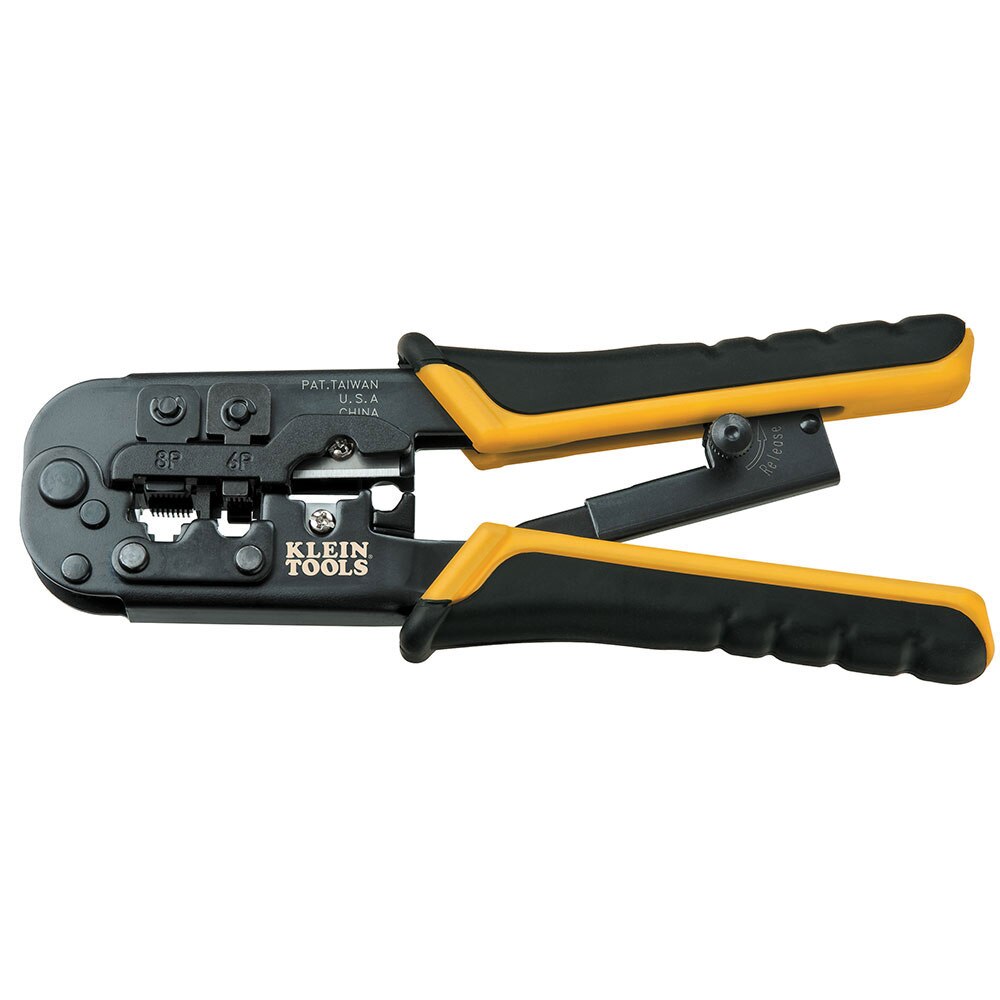

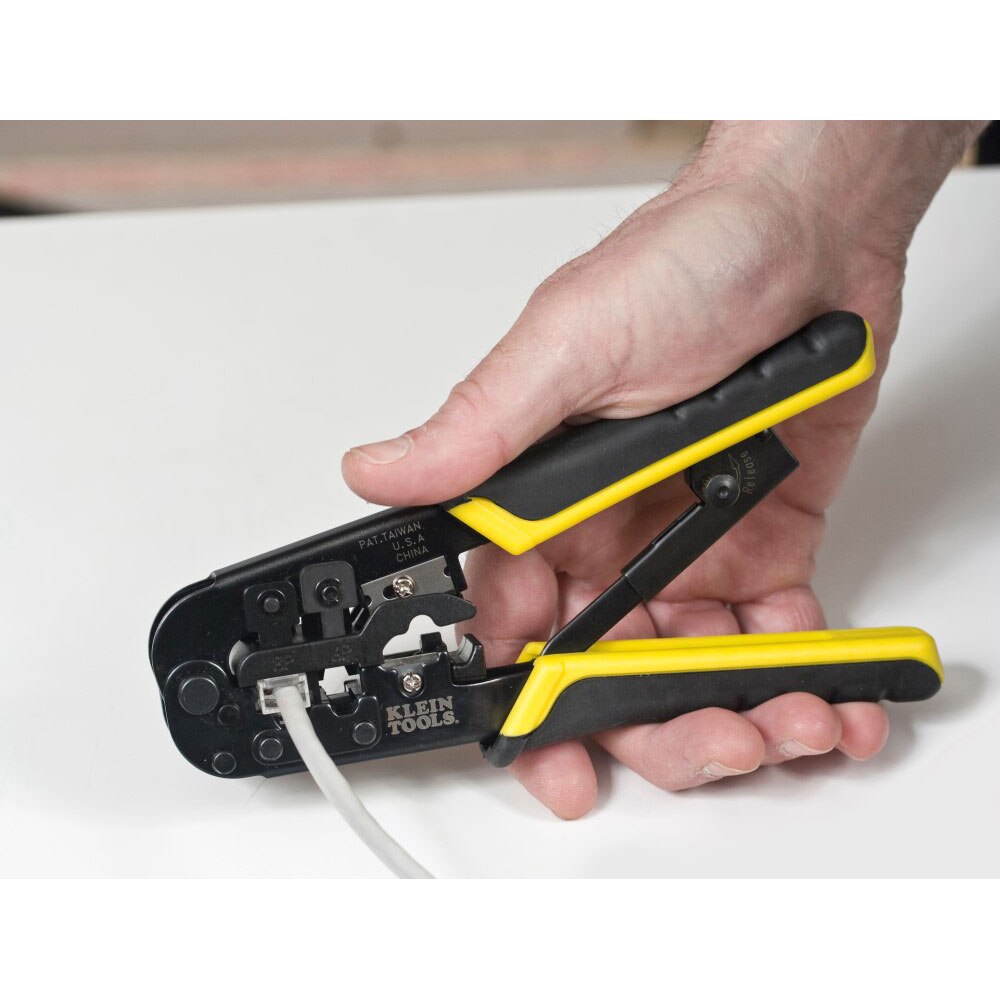

Klein Tools VDV226-011-SEN Ratcheting Data Cable Crimper / Stripper / Cutter
Klein Tools VDV226-011-SEN Ratcheting Data Cable Crimper / Stripper / Cutter
Klein VDV226-011-SEN Description
The all-in-one Ratcheting Modular Crimper/Stripper cuts, strips and crimps paired-conductor cables (round STP/UTP and flat-satin phone cables). Durably made from steel and finished in black oxide for high performance, it provides fast, reliable modular-crimp connector installation for voice- and data applications. Other features include: Crimps 4-, 6- and 8-position modular connectors (RJ22, RJ11/RJ12 and RJ45); Designed for Western Electric (WE)/Stewart Stamping (SS)-type modular connectors. Dimensions: 4-Inch x 7.5-Inch x 0.9-Inch. Klein Tools offers a comprehensive line of VDV products created to prep, connect, and test network, phone, CATV, home theater, satellite, and security cables for residential or commercial systems.
Klein VDV226-011-SEN Includes
- (1) Ratcheting Data Cable Crimper
Klein VDV226-011-SEN Features
- Ratcheting crimper provides fast, reliable modular-crimp connector installation for voice and data applications
- Cuts, strips, and crimps pair-conductor cables (round STP/UTP and flat-satin phone cable) all in one tool
- Crimps 4, 6, and 8 position modular connectors (RJ22, RJ11/RJ12, and RJ45)
- Steel body with black-oxide finish for excellent performance and durability
- Crimping dies are precision ground from high-carbon steel
- Designed for Western Electric (WE)/Stewart Stamping (SS)-type modular connectors
- Ratchet safety-release and a blade-guard on cutting and stripping knives reduce risk of injury
- Full-cycle ratchet mechanism prevents the release of the connector prior to full compression
- Yellow and black grips enhance comfort, visibility, and allow quick identification
- Three crimping dies (8-position, 6-position and 4-position)
- Cable parameters: 28-22 AWG (.08 - .34 mm²) flat or round; solid or stranded telephone and data
- Not for use with AMP® connectors
- AMP® is a registered trademark of TYCO, Inc.
- Replacement blade set available (Cat. No. VDV999-064)
Klein VDV226-011-SEN Specifications
| Type: | Crimper |
| Application: | Cable Connection |
| Material: | Steel with Black Oxide |
| Handle Color: | Yellow/Black |
| Cuts & Strips: | STP/UTP, Flat-Satin Phone Cable, and 22-28 AWG |
| Cable Size: | CAT3, CAT5e, CAT6/6A |
| Connector Type: | RJ45, RJ11, RJ12 Standard |
| Position/Pair/Conductors: | 4-Position, 1-Pair/2-Conductor, 4-Position, 2-Pair/4-Conductor 6-Position, 2-Pair/4-Conductor, 6-Position, 3-Pair/6-Conductor, 8-Position, 4-Pair/8-Conductor |
| Overall Length: | 7.5" (19.1 cm) |
| Weight: | 1.6 oz (45 g) |
