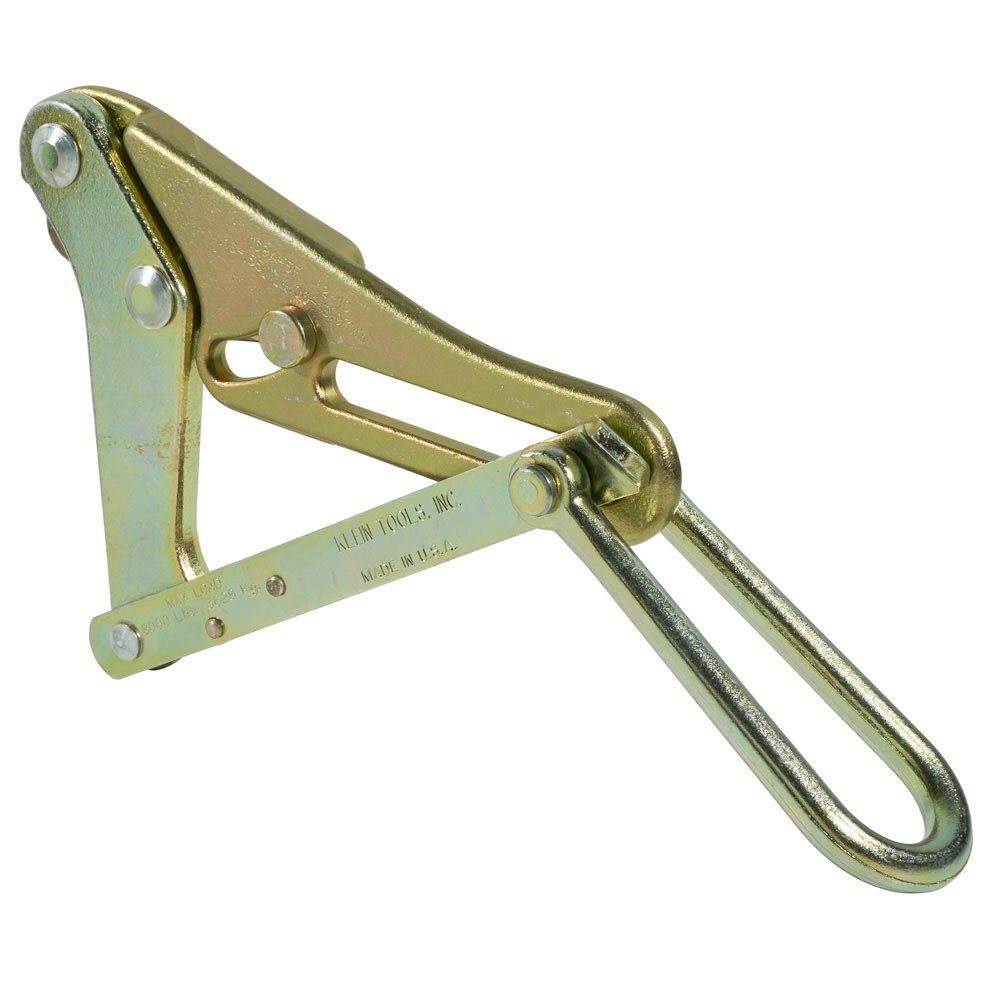

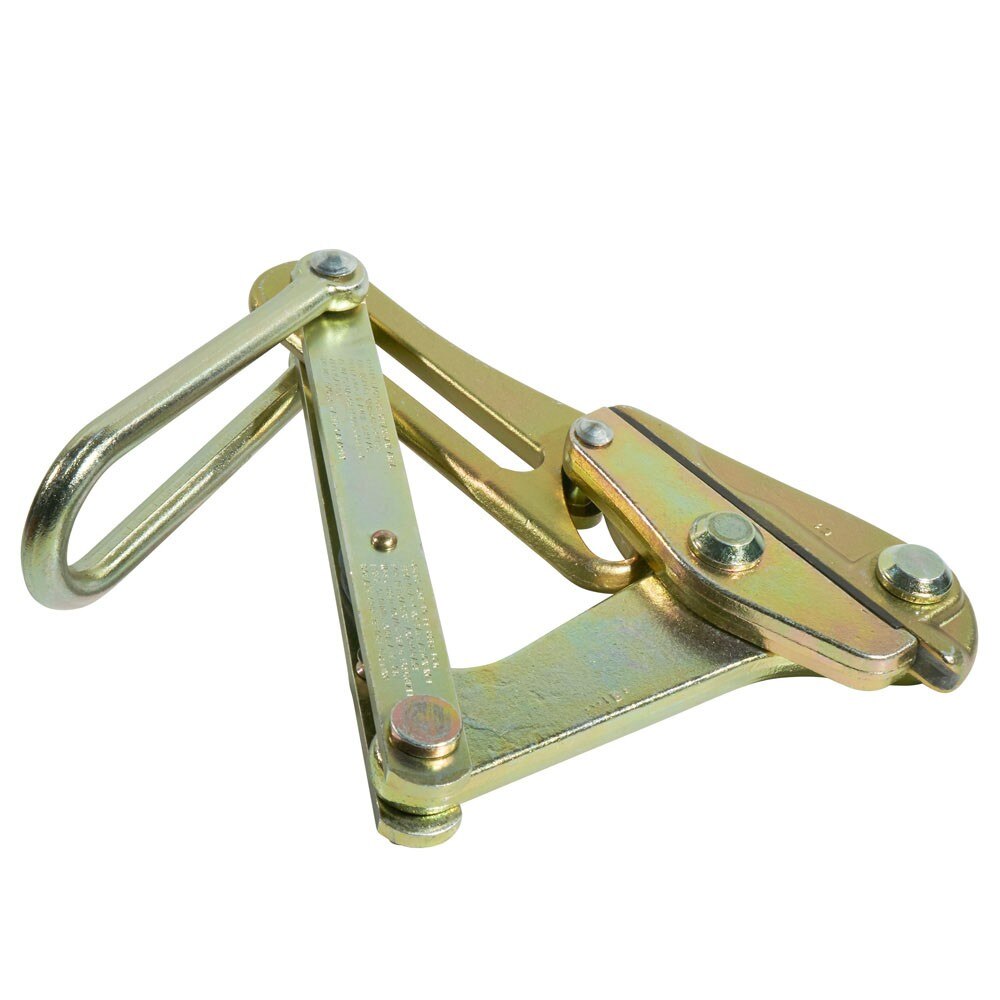

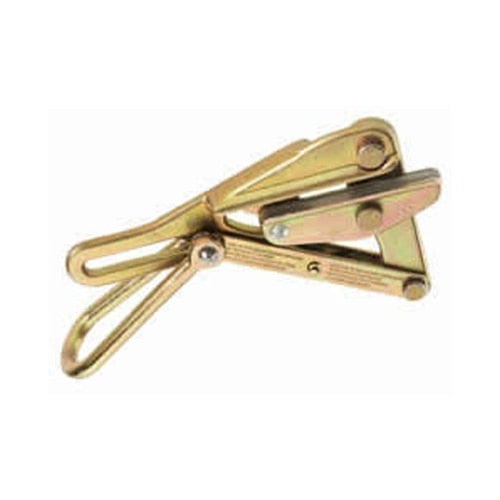

Klein Tools 1684-5F Grip for High Strength Cable

INCLUDES:
• (1) Grip

FEATURES:
• Designed for cable sizes from 0.16-Inch (4.06 mm) to 0.55-Inch (13.97 mm)
• Double "V" grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
• For larger conductors, see our grips with round inside-jaw contour
• Similar to Cat. No. 1684-5 except with a file inserted in jaw for extra gripping power. Replacement file No. 578 and screws No. 573 are also available
• Locking handle keeps jaw open while grip is placed on cable with a hot stick

SPECIFICATIONS:
• Application: Wire Pulling
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Cable Diameter: 0.16" to 0.55" (4 to 14 mm)
• Jaw Type: Single V with File Insert
• Jaw Length: 5" (12.7 cm)
• Maximum Safe Load: 8000 lb (3629 kg)
• Weight: 6.4 lb (2.9 kg)


Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.16-Inch to 0.55-Inch (4.06 - 13.97 mm). Double -InchV-Inch grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable.
