Klein NCVT-6 Non-Contact Voltage Tester with Laser Distance Meter
Klein NCVT-6 Non-Contact Voltage Tester with Laser Distance Meter
Klein NCVT-6 Description

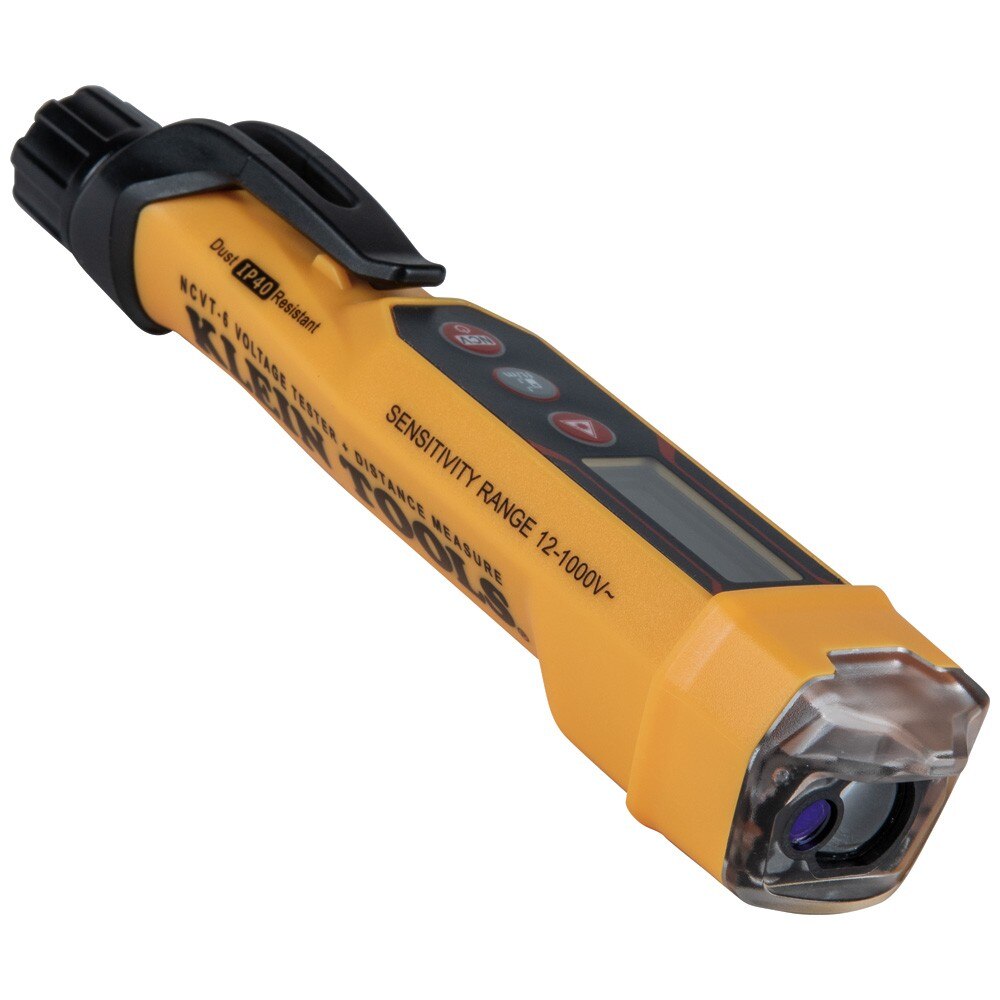

The Klein Tools NCVT-6 is a non-contact voltage tester (NCVT) with an integrated laser distance meter. It can detect voltage over the full-range from 12 to 1000 VAC and can measure distances from 2-Inch (51 mm) up to 66-Feet (20 m). The laser distance meter functions independently from the NCVT with a simple-to-use intuitive interface. Easy, single-button changes between voltage detection and laser distance measurements.
Klein NCVT-6 Includes
- (1) Voltage Tester
- (2) Alkaline 1.5V AAA
Klein NCVT-6 Features

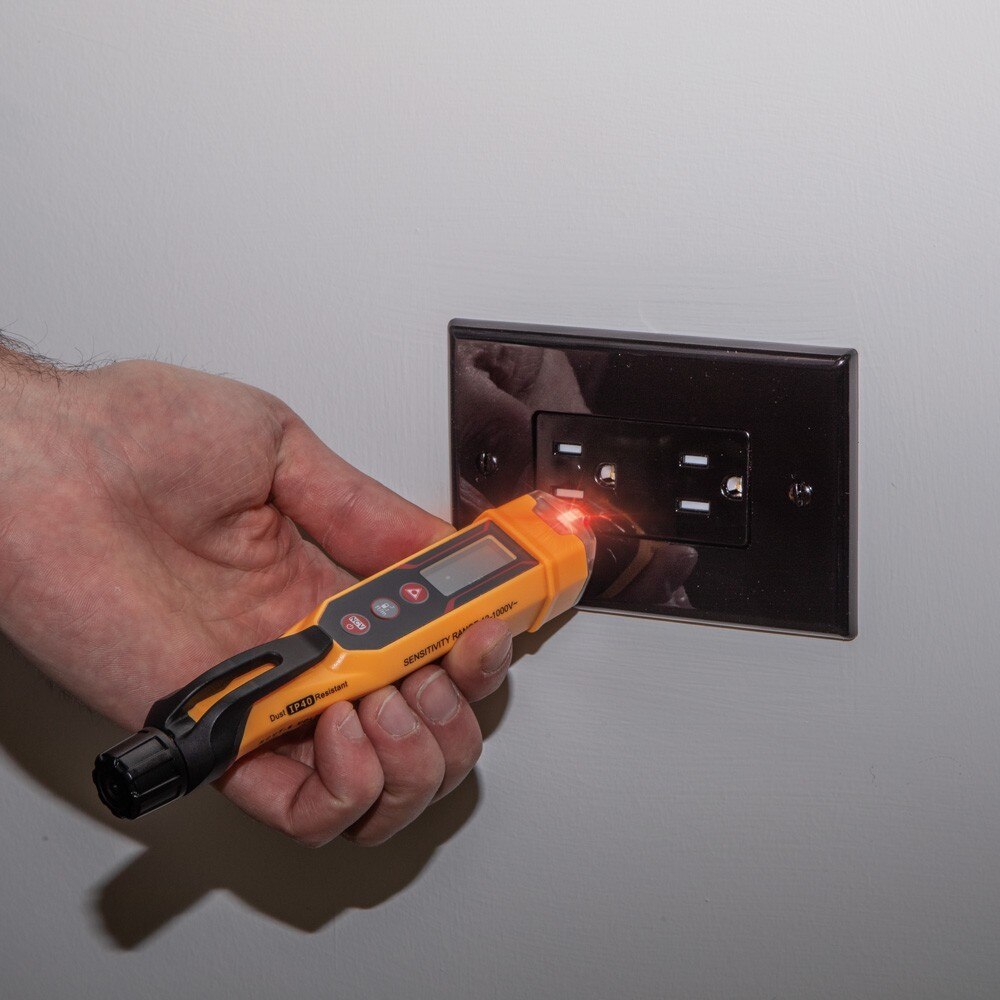

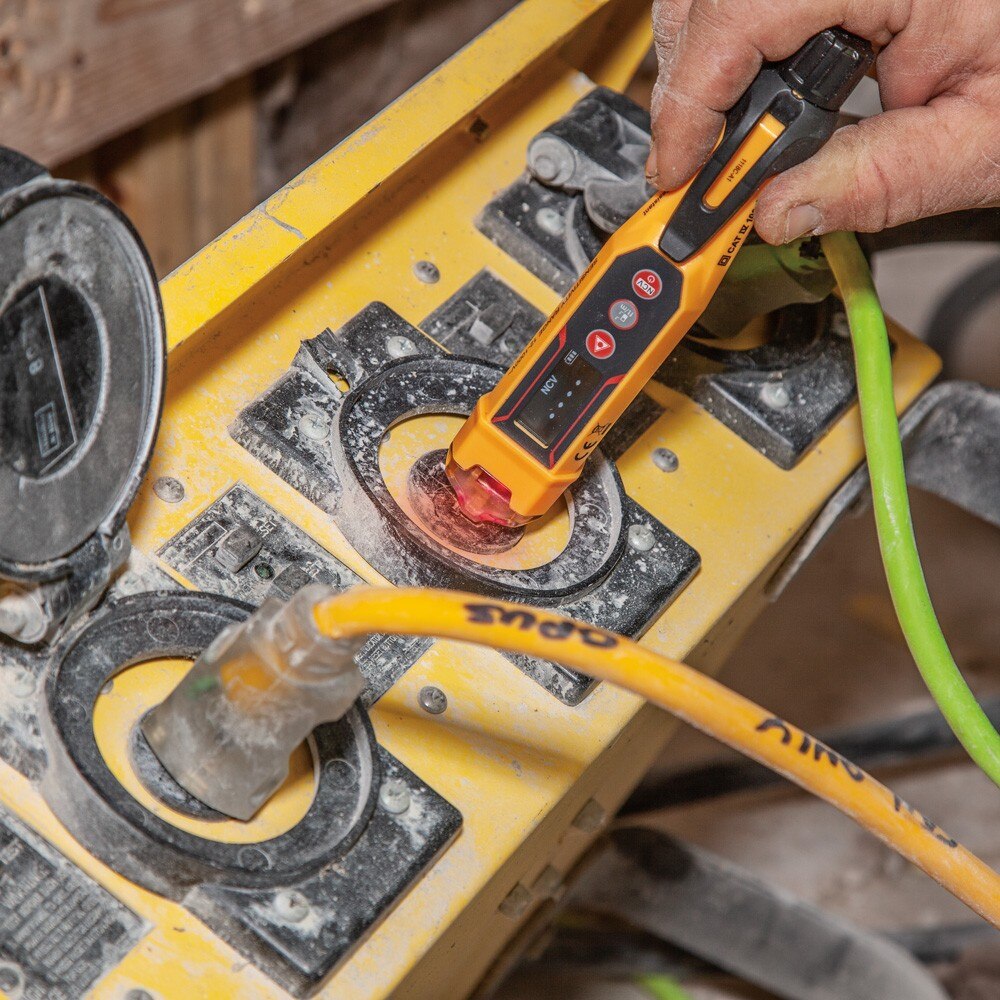

- Provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, as well as AC voltage in security, entertainment, communications, environmental control, and irrigation systems
- Detects AC voltage from 12 to 1000V with visual and audible indicators

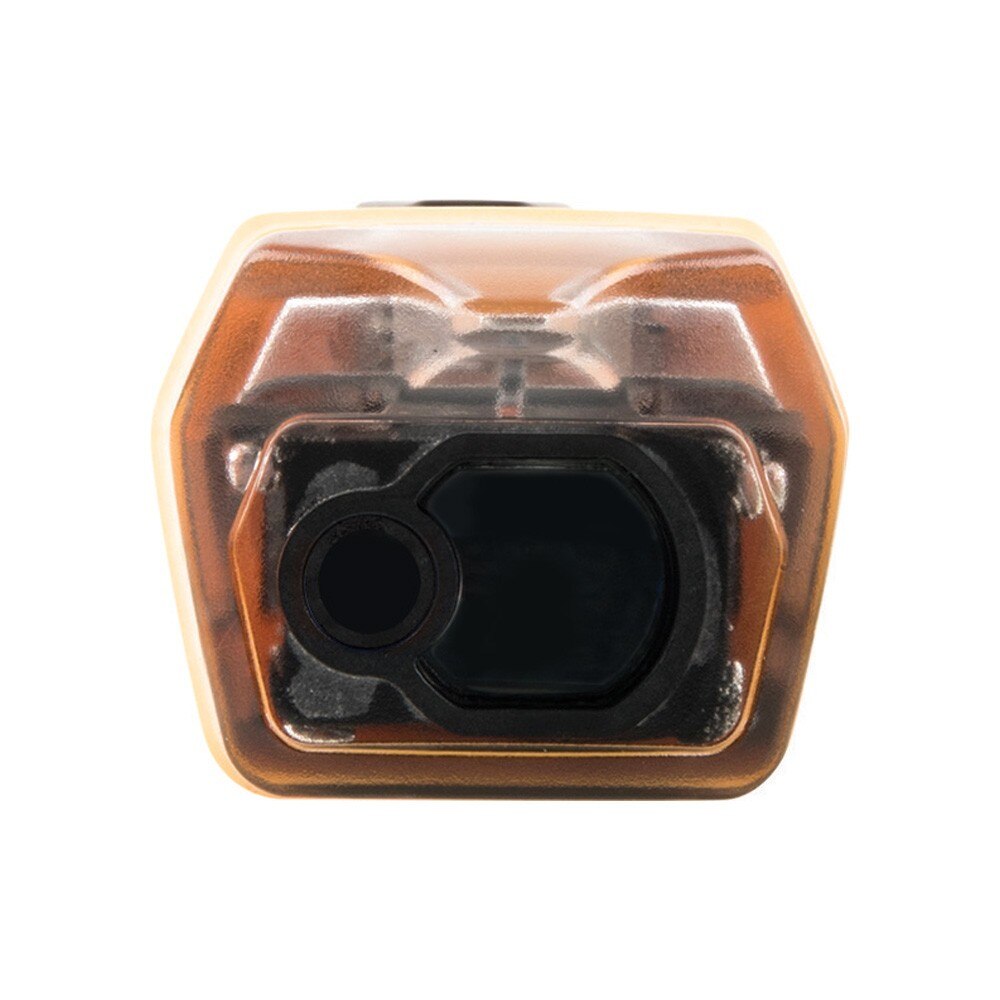

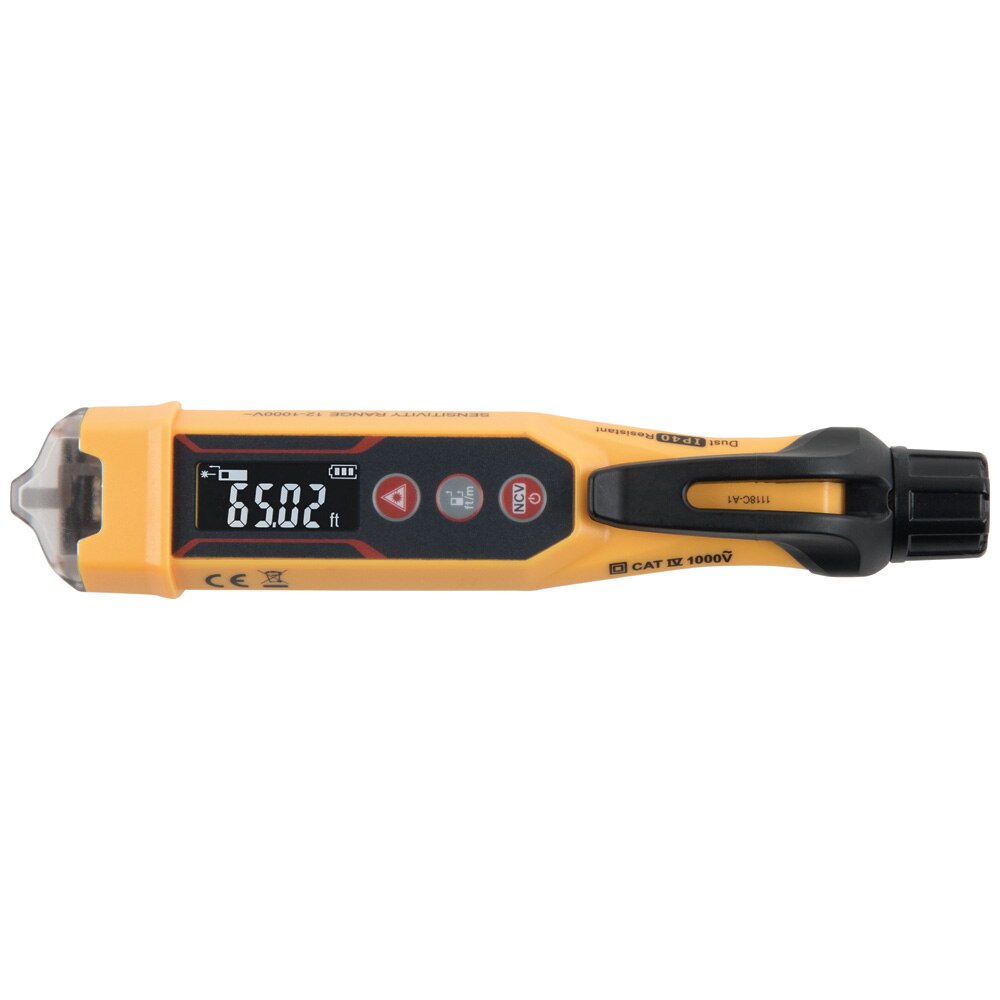

- Incorporates a 66-Foot (20 m) Laser Distance Meter that can measure in meters, inches with decimals, inches with fractions, feet with decimals, or feet with fractions

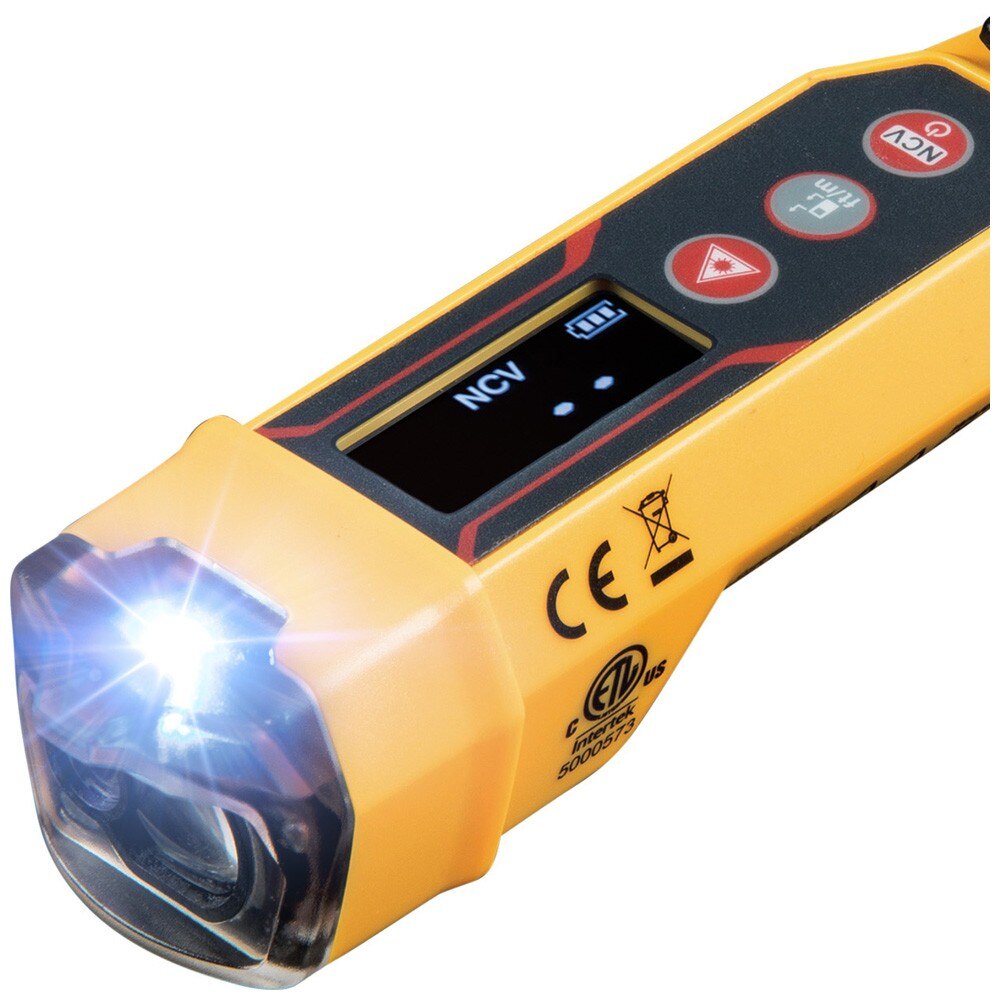

- High-visibility reverse contrast display for better viewing in low light conditions
- Laser Class II, 630 to 670nm, Max. Power <1mW
- Simple-to-use intuitive interface; easy single-button changes between laser distance measurements and voltage detection
- Delivers simultaneous visual and audible voltage indicators when AC voltage is detected
- Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source
- Built to withstand a 6.6-Foot (2 m) drop
- Auto Power-Off conserves and extends battery life

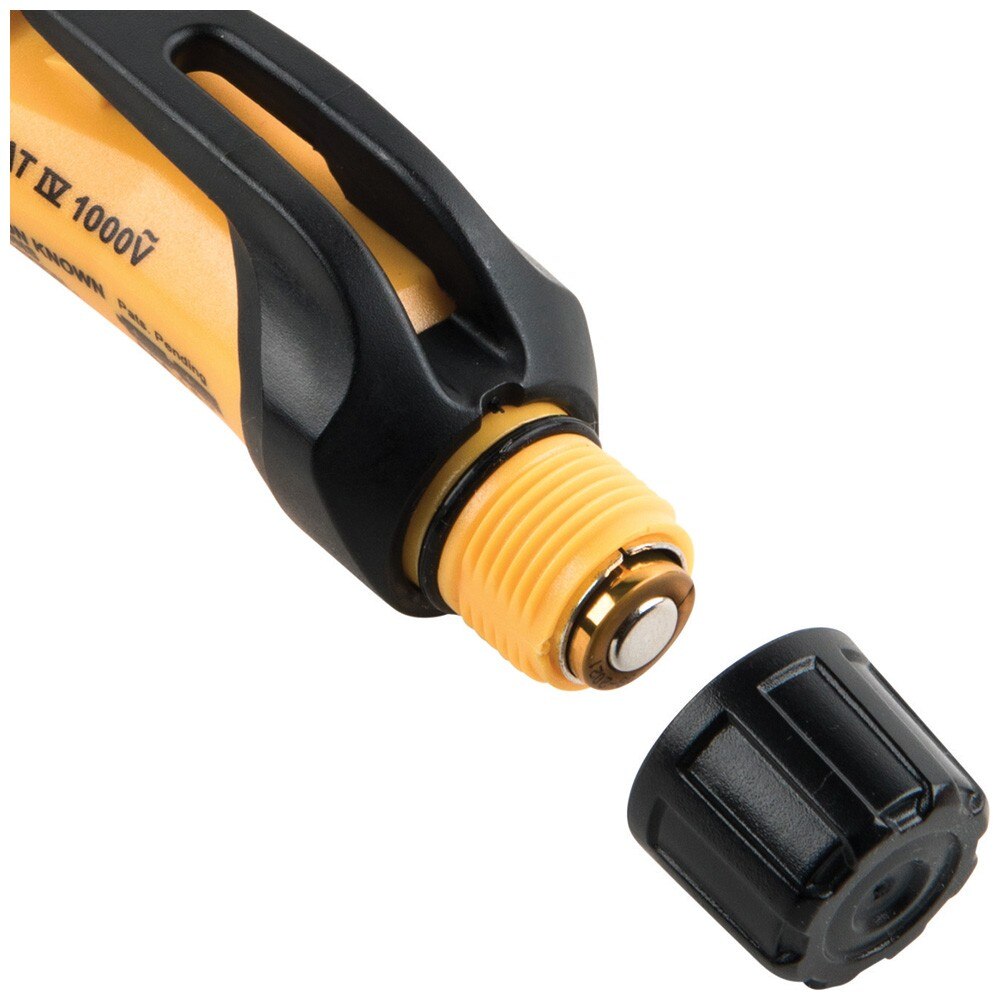

- Screw-thread battery cap
- Lightweight tool with pocket clip for easy everyday carrying and storage
- CAT IV 1000V safety rating
- Ingress Protection IP40 Dust Resistant

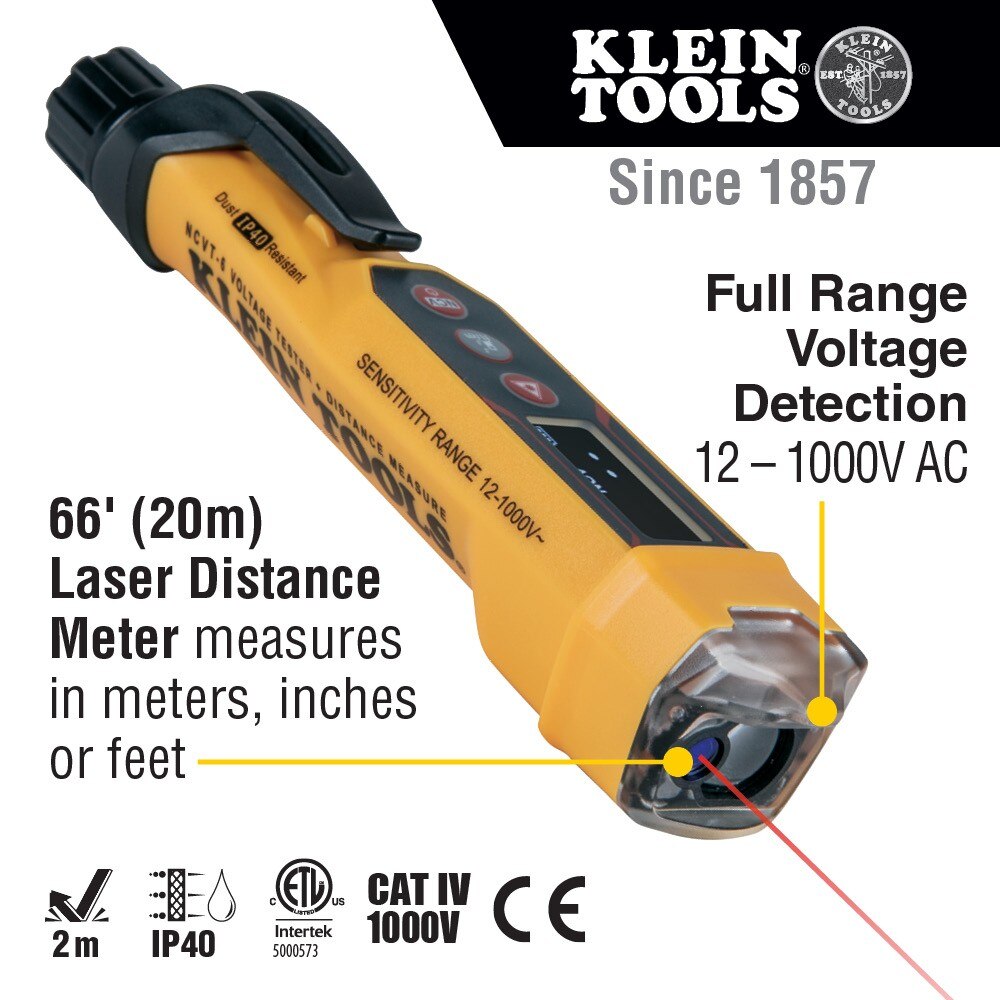

- Special Features: Full-Range Voltage Detection From 12-1000 VAC with Visual and Audible Indicators; Laser Distance Meter; High Visibility Reverse Contrast Display
Klein NCVT-6 Specifications
| Type: | Non-Contact Voltage Tester |
| Application: | Non-Contact Detection and Testing of AC Voltage with Integrated Laser Distance Meter |
| Material: | Plastic and Electronic Assemblies |
| Drop Protection: | 6.6' (2 m) |
| Voltage: | 12-1000 VAC |
| Frequency: | 50 - 500 Hz |
| Pollution Degree: | 2 |
| Ingress Protection: | IP40 Dust Resistant |
| Standard: | CATIV 1000V, Laser: Class II, 630nm to 670nm, Max. Power <1mW |
| Overall Length: | 6.45"(164 mm) |
| Overall Height: | 1.21" (31 mm) |
| Overall Width: | 1.32" (34 mm) |
| Weight: | 2.5 oz (72 g) |
