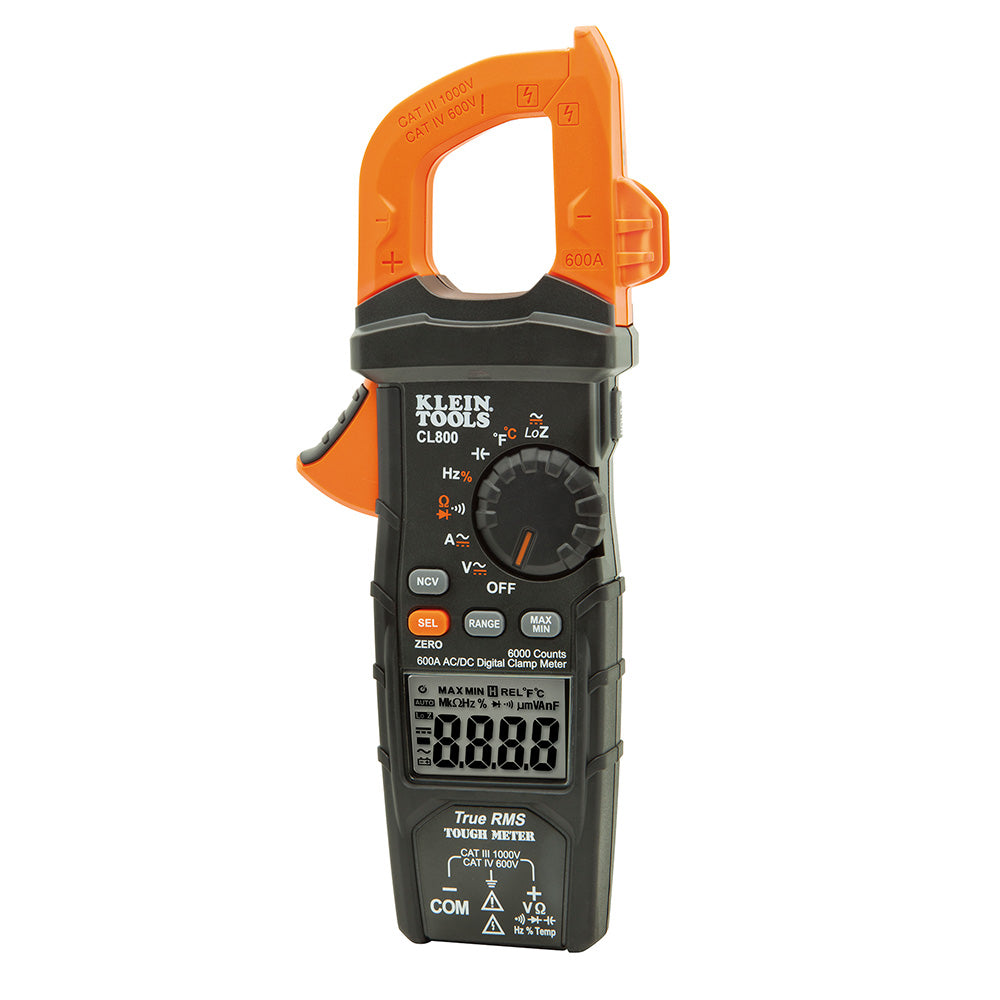

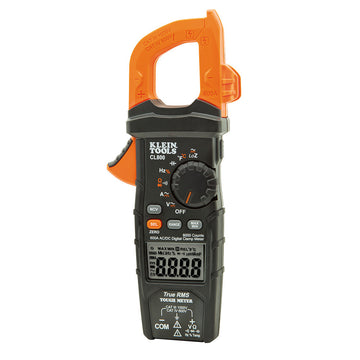

Klein Digital Clamp Meter AC/DC Auto-Ranging (94-CL800)

*Usually ships within 7 to 14 days.

• Automatically ranging true mean squared (TRMS) technology for increased accuracy
• Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
• Thermocouple probe measures temperature
• Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
• CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
• Built to withstand a 6.6 (2m) drop
• Low battery indicator and easily accessible battery compartment
• Operating temp: 32°F to 104°F (0°C to 40°C).
• Operating altitude to 6,562 ft (2,000m).

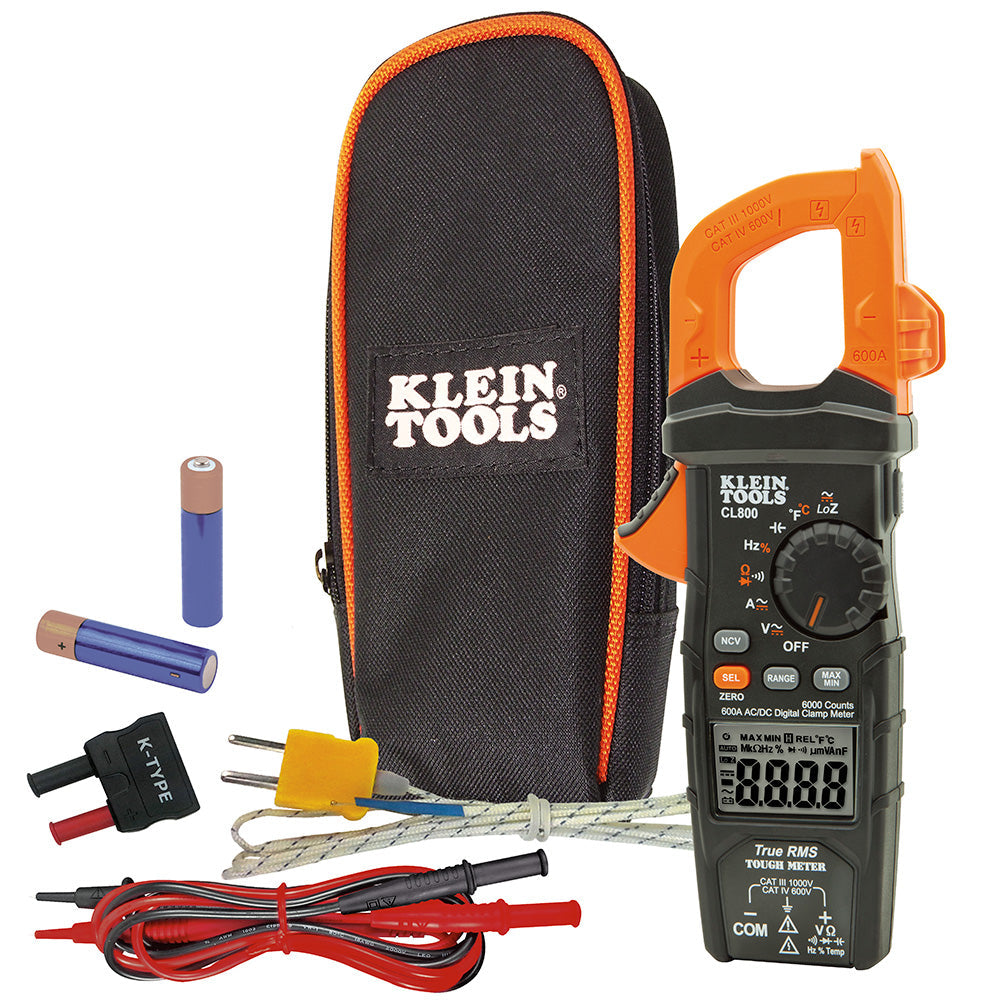

• Includes carrying pouch, test leads, thermocouple with adapter and batteries
• Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations

Product Specifications

• Overall Height: 9-3/32” (231.0mm)
• Overall Width: 3-13/16” (96.8mm)
• Batteries: 2 x AAA
• Jaw Size: 1-3/8” (34.9mm)
• Drop Protection: 6.6 ft (2m)
• Display: 6000 Count LCD
• Voltage: 1000V AC; 1000V DC
• Frequency: 1Hz – 500 KHz
• Current : 600A AC; 600A DC
• Capacitance: 6000µF
• Ohms (Resistance) : 60MO
• Temperature Range: - 14° - 1000°F (-26° - 538°C)
• Ingress Protection : IP40
• Standard : CAT IV 600V; CE Certified
• Included : Carrying Case, 41” (1041.4mm) Test Leads, Thermocouple with Adapter and Batteries
• Weight: 0.78 lb (0.35kg)
