Klein CL710 600A AC/DC Auto-Ranging Digital Pro Clamp Meter
Klein CL710 600A AC/DC Auto-Ranging Digital Pro Clamp Meter
Klein CL710 Description

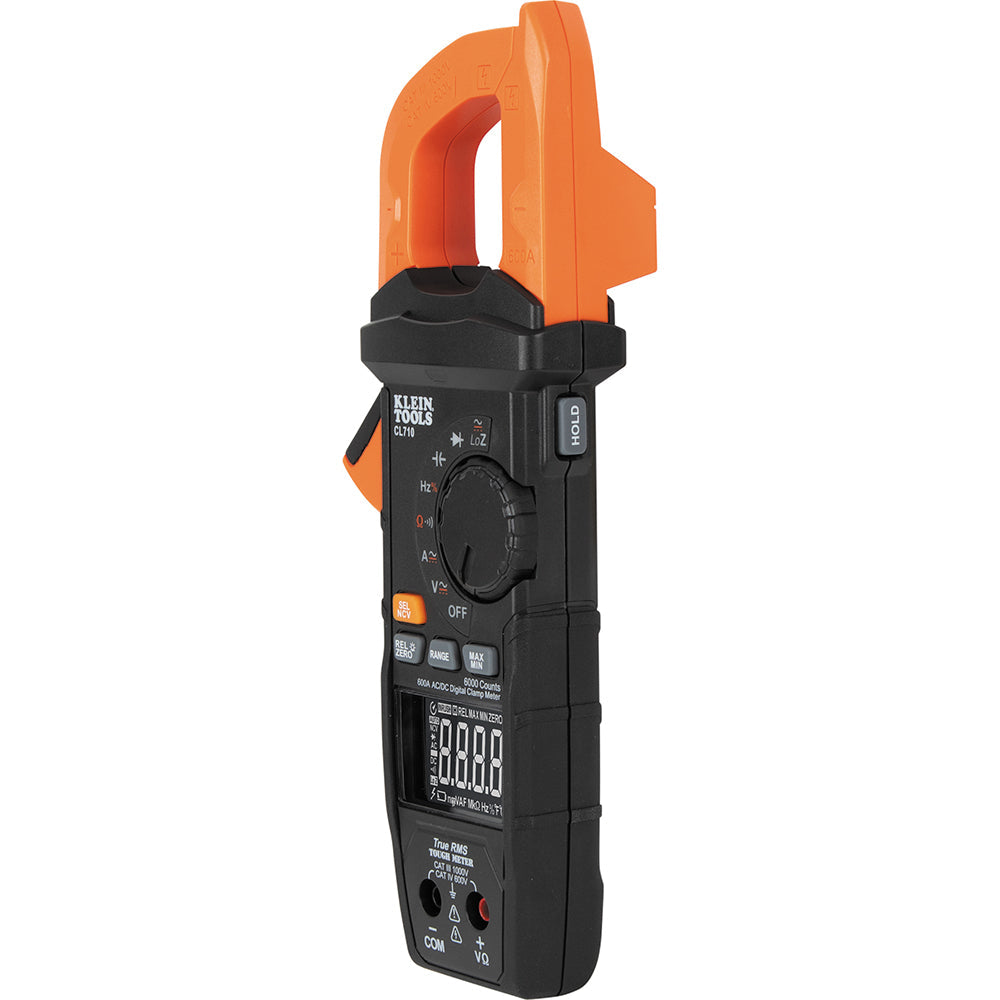

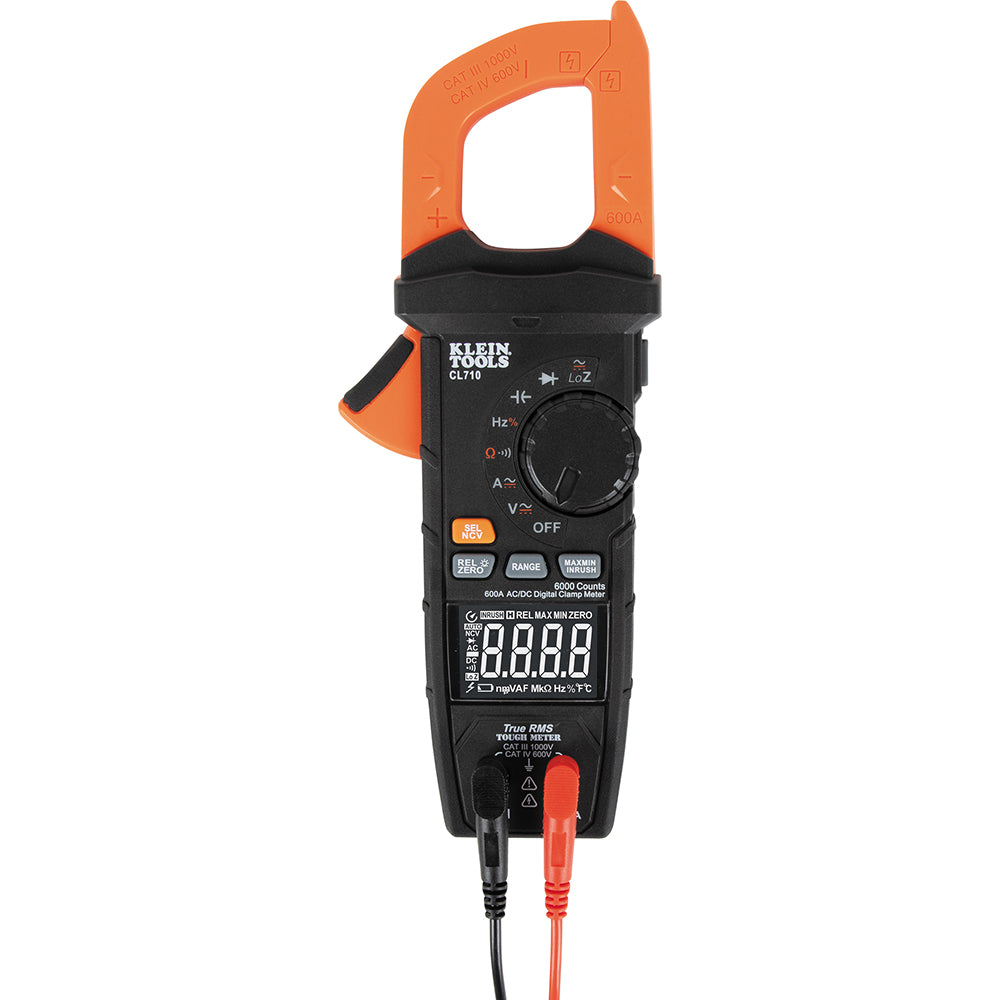

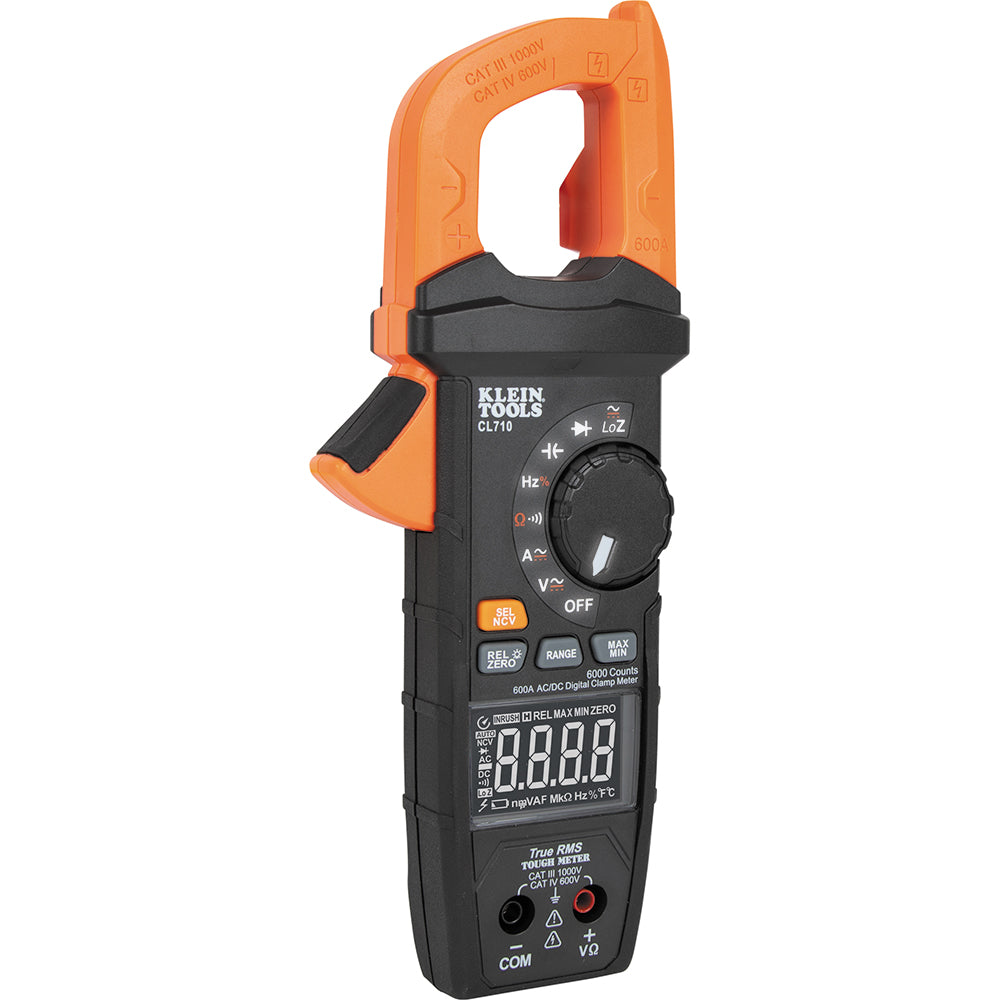

Klein Tools CL710 Clamp Meter delivers accurate measurements across AC/DC current, voltage, resistance, continuity, frequency, and capacitance, all with True RMS precision. It features diode testing and a Low Impedance (LoZ) mode to eliminate ghost voltages. The clamp features NCV detection with escalating audio-visual alerts the closer to the voltage source. The transflective reverse-contrast display and lighted dial ensure visibility in any lighting; a reliable tool for diverse applications.
Klein CL710 Includes
- (1) Clamp Meter
- (1) Right-Angle Input Test Leads
- (1) Storage Pouch
- (3) AAA Batteries
- (1) Instruction Manual
Klein CL710 Features
- Clamp meter with True RMS provides accurate and reliable measurements across various applications
- Measures AC/DC voltage, AC/DC current, resistance, diode test, continuity, capacitance, and frequency/duty cycle

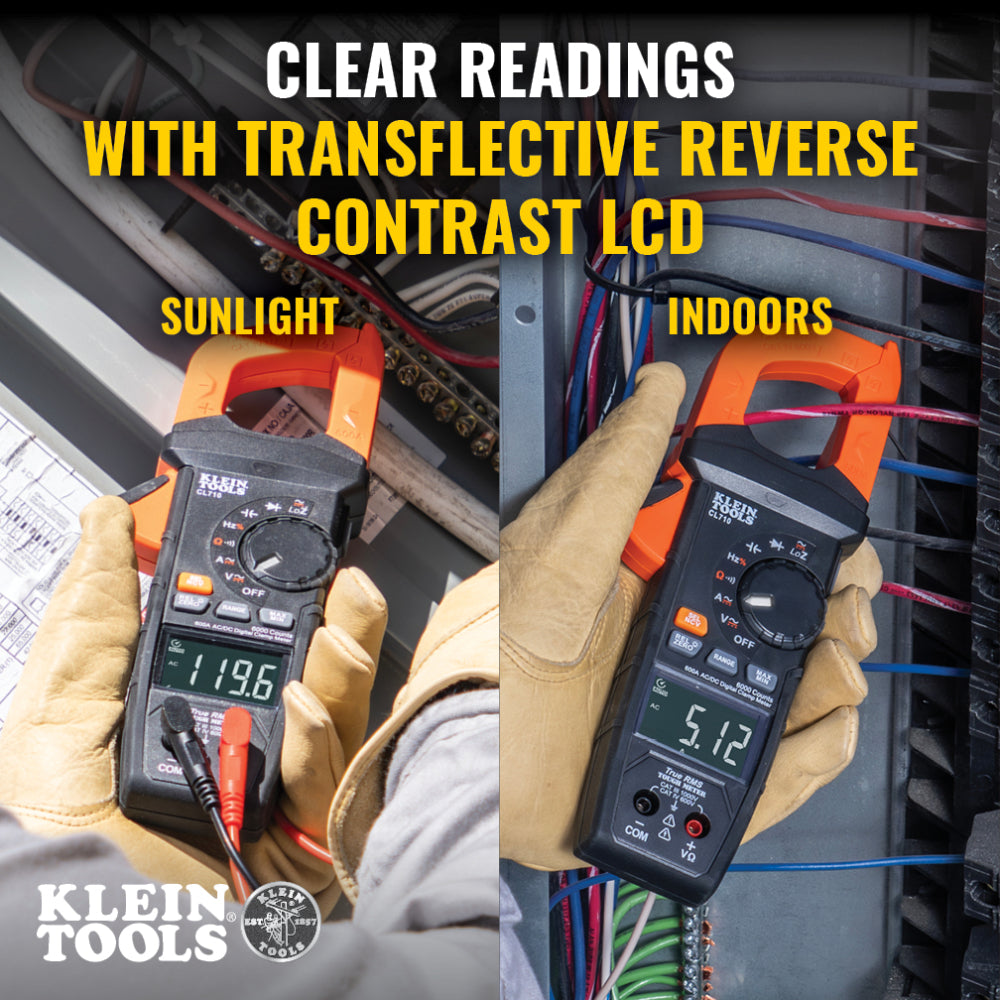

- Transflective reverse-contrast display provides excellent visibility in both sunlight and dark environments

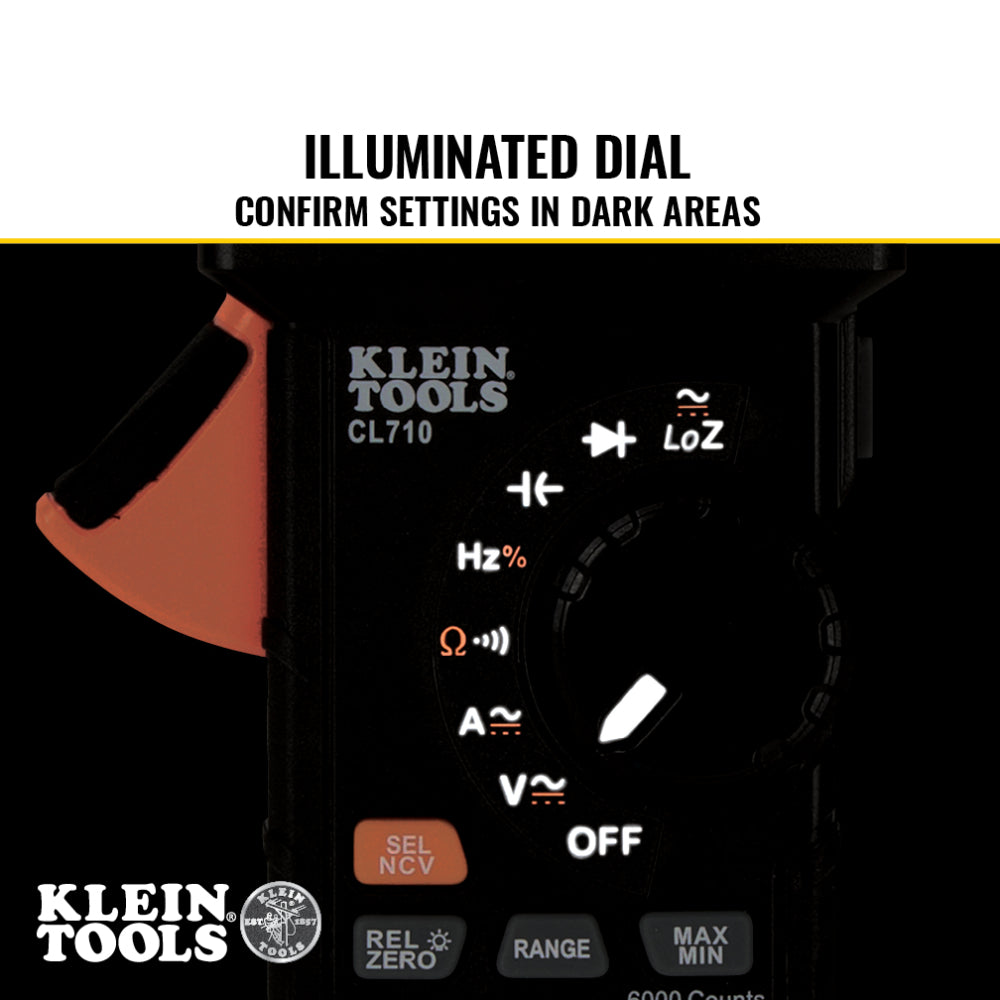

- Illuminated dial ensures clear visibility and easy reading, even in low-light environments
- Features a low impedance (LoZ) mode to identify and eliminate ghost voltages, preventing false readings and ensuring more accurate measurements
- Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
- Durable Clamp Meter is rated IP40 for ingress protection and withstands drops up to 6.6 feet (2 m)
- Includes right-angle input test leads, thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
- Ergonomic design and overmold provide a comfortable grip, with easy dial adjustment using the thumb

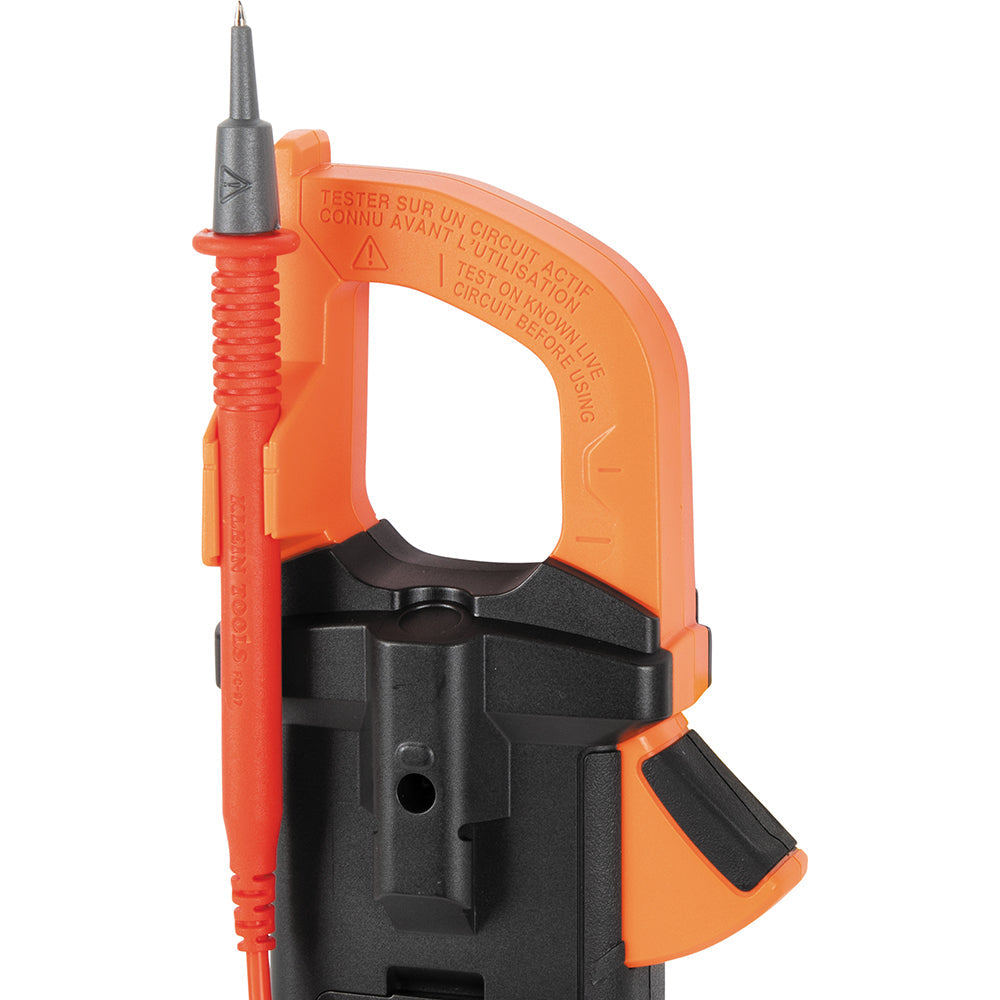

- Clamp body includes a side-mounted test lead holder and a back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation
Klein CL710 Specifications
| AC Voltage: | 1000V |
| Standard: | CAT IV 600V, CAT III 1000V, Class 2, Double Insulation, CE, UKCA |
| Frequency: | 1Hz - 500 KHz |
| Type: | Pro Clamp Meter |
| Display: | Transflective Reverse-Contrast with 6000 Count LCD |
| Application: | Variety of electrical diagnostic and troubleshooting applications |
| Ohms (Resistance): | 60M? |
| Functions: | AC/DC Voltage, AC/DC Current, Resistance, Audible Continuity, Low Impedance, Non-Contact Voltage Testing, Diode Test, Capacitance, Frequency/Duty Cycle, Min/Max Value, Rel/Zero, Data Hold Capability |
| Accuracy: | See Instructions |
| Batteries: | 3 x AAA |
| DC Voltage: | 1000V |

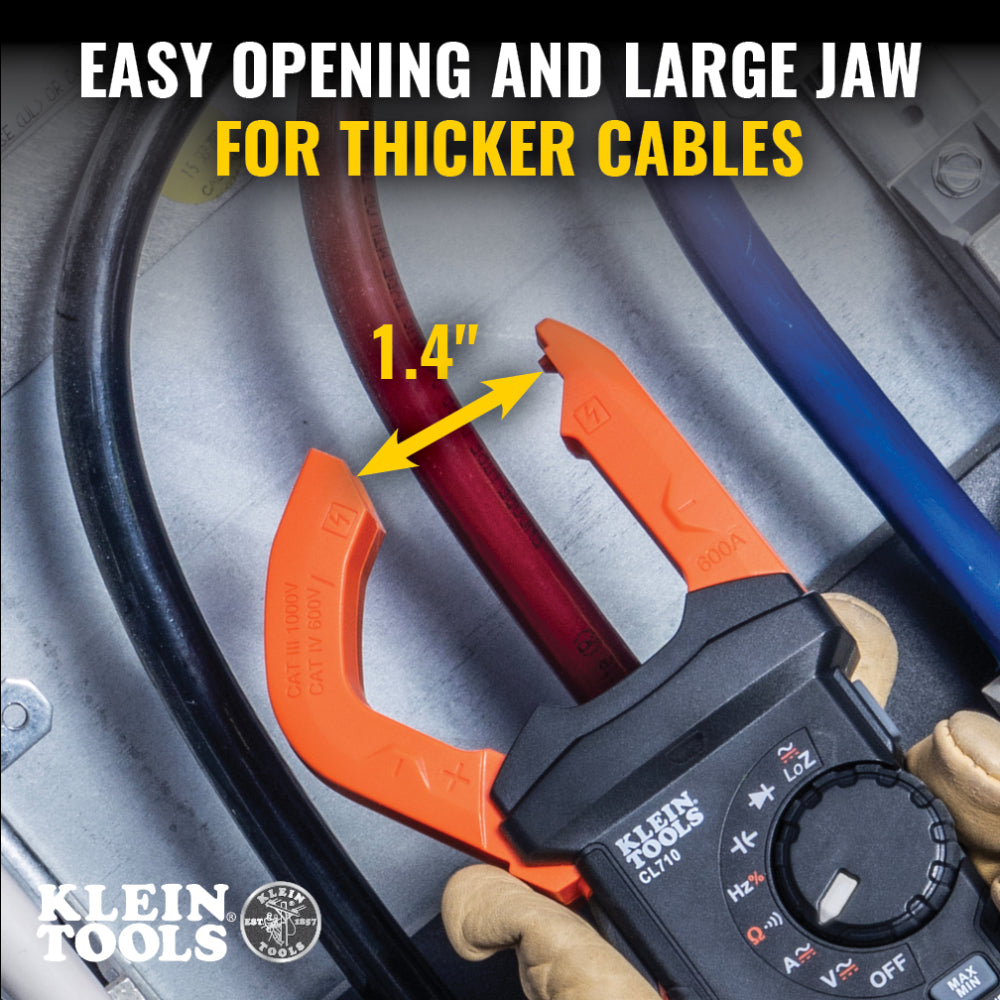

| Jaw Size: | 1.4" (3.6 cm) |
| Auto-Power Off: | Yes |
| Voltage: | 1000V AC; 1000V DC |
| Material: | ABS/Electronics |
| Drop Protection: | 6.6' (2 m) |
| Capacitance: | 6000µF |
