Klein CL490 400A AC/DC Dual-Display Auto-Ranging Digital Clamp Meter
Klein CL490 400A AC/DC Dual-Display Auto-Ranging Digital Clamp Meter
Klein CL490 Description
Klein Tools CL490 Dual Display Clamp Meter delivers accurate measurements with secondary display for easier readability in tight spaces. From AC/DC current, voltage, resistance, continuity, frequency,and capacitance, all with True RMS precision. It features diode testing and temperature is taken via thermocouple. Features NCV detection with escalating audio-visual alert. The backlit, hi-viz display and lighted dial ensure visibility in any lighting.

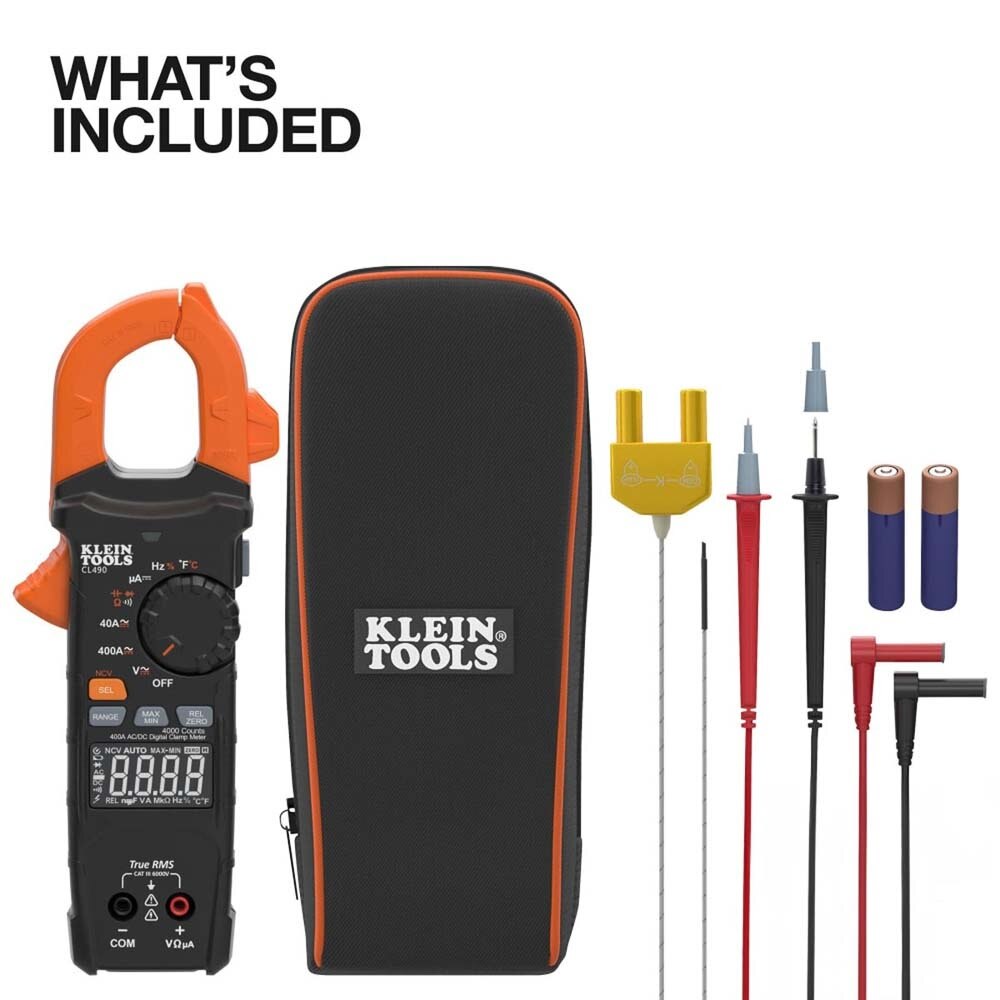

Klein CL490 Includes
- (1) Clamp Meter
- (1) Carrying Case
- (1) Instructions
- (1) Test Leads
- (1) Thermocouple
- (2) AA Batteries
Klein CL490 Features

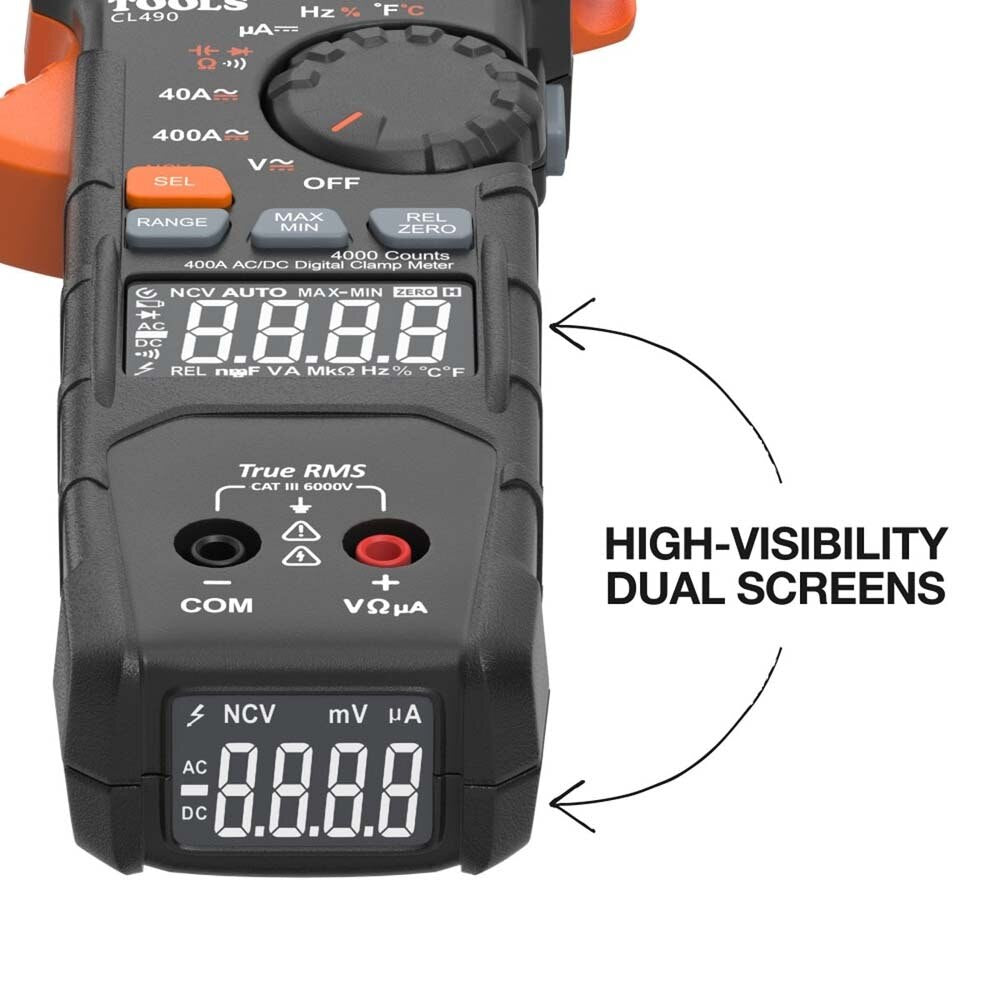

- Dual Display digital clamp meter allows users to see readings in tight space areas
- AC/DC clamp meter with True RMS provides accurate and reliable measurements across various applications

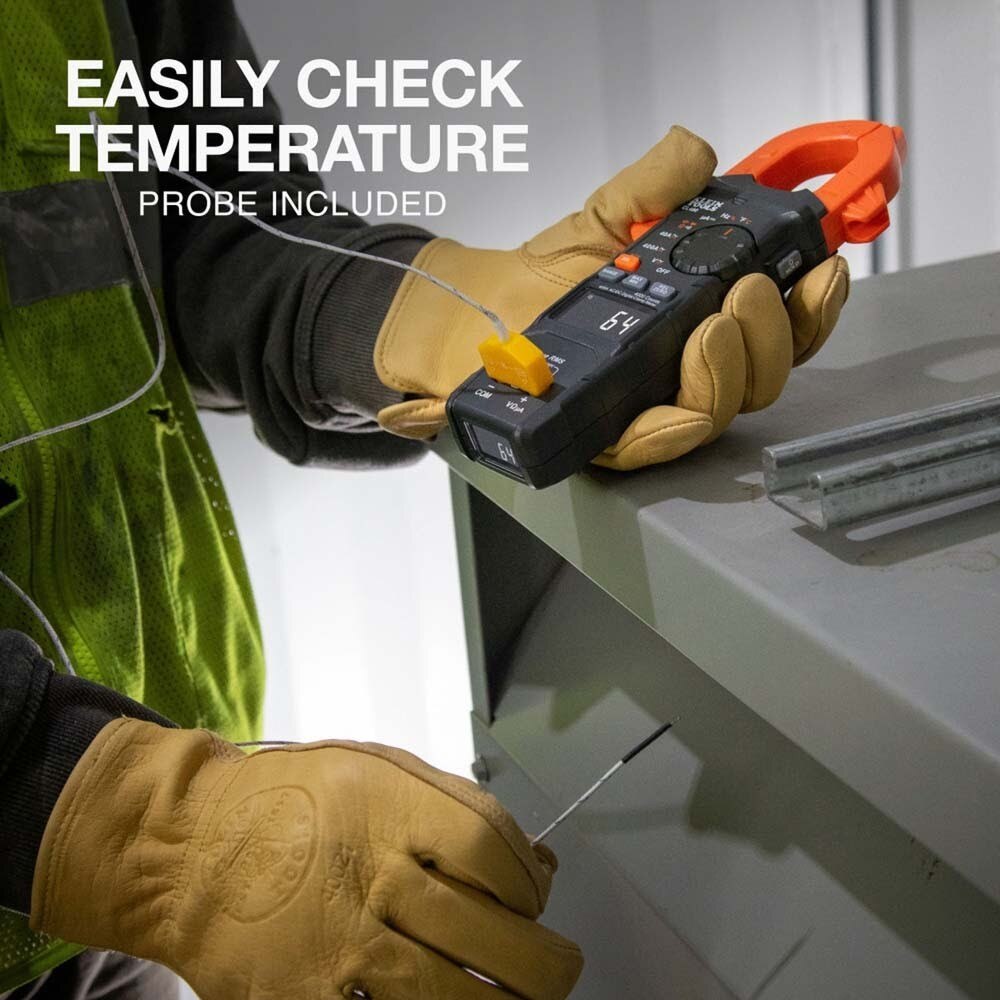

- Measures AC/DC current and NCVT via clamp; AC/DC voltage, resistance, continuity, frequency/duty cycle, DC microamps, diode test and capacitance via test leads; temperature via thermocouple

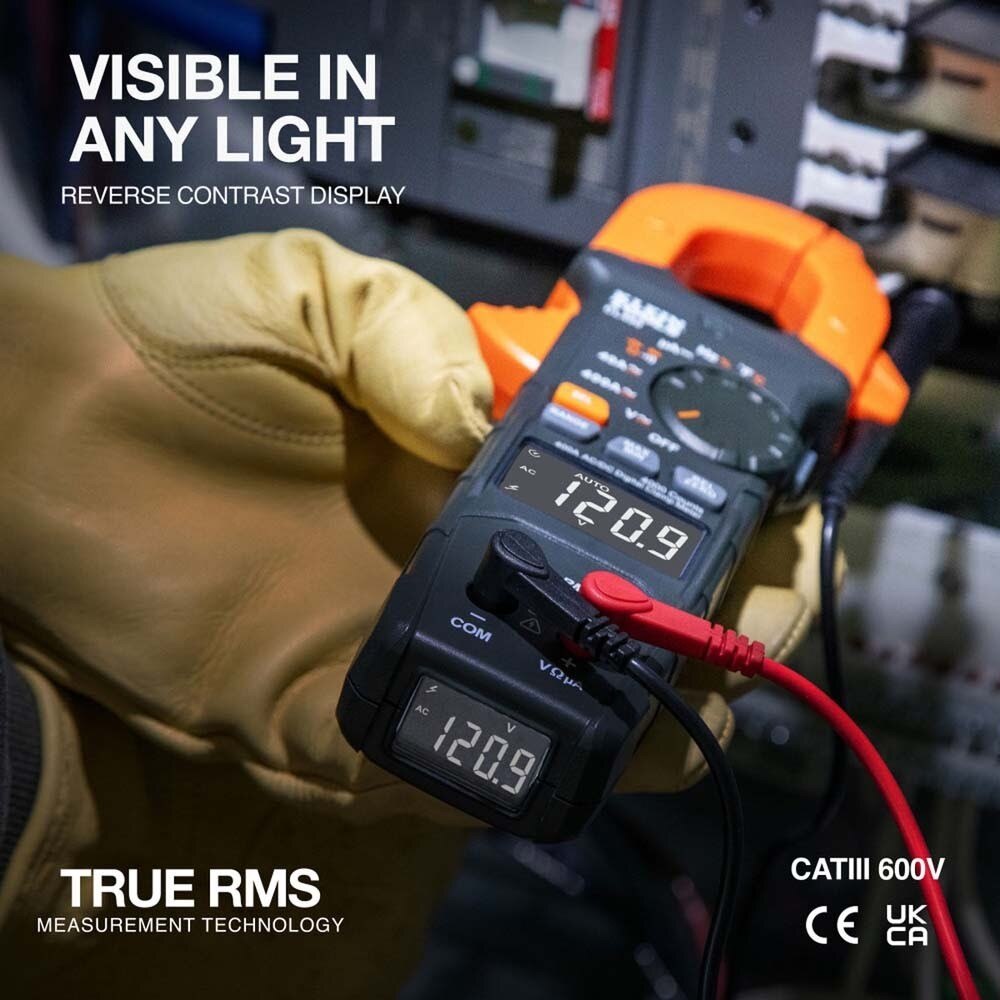

- Backlit reverse-contrast LCDs for clear data and best viewability in all environments
- Withstands drops from 6.6 feet (2 m), and includes right-angle input test leads, thermocouple, storage pouch, instruction manual, and 2 x AA batteries
- Ergonomic design provides a comfortable grip, with easy dial adjustment using the thumb

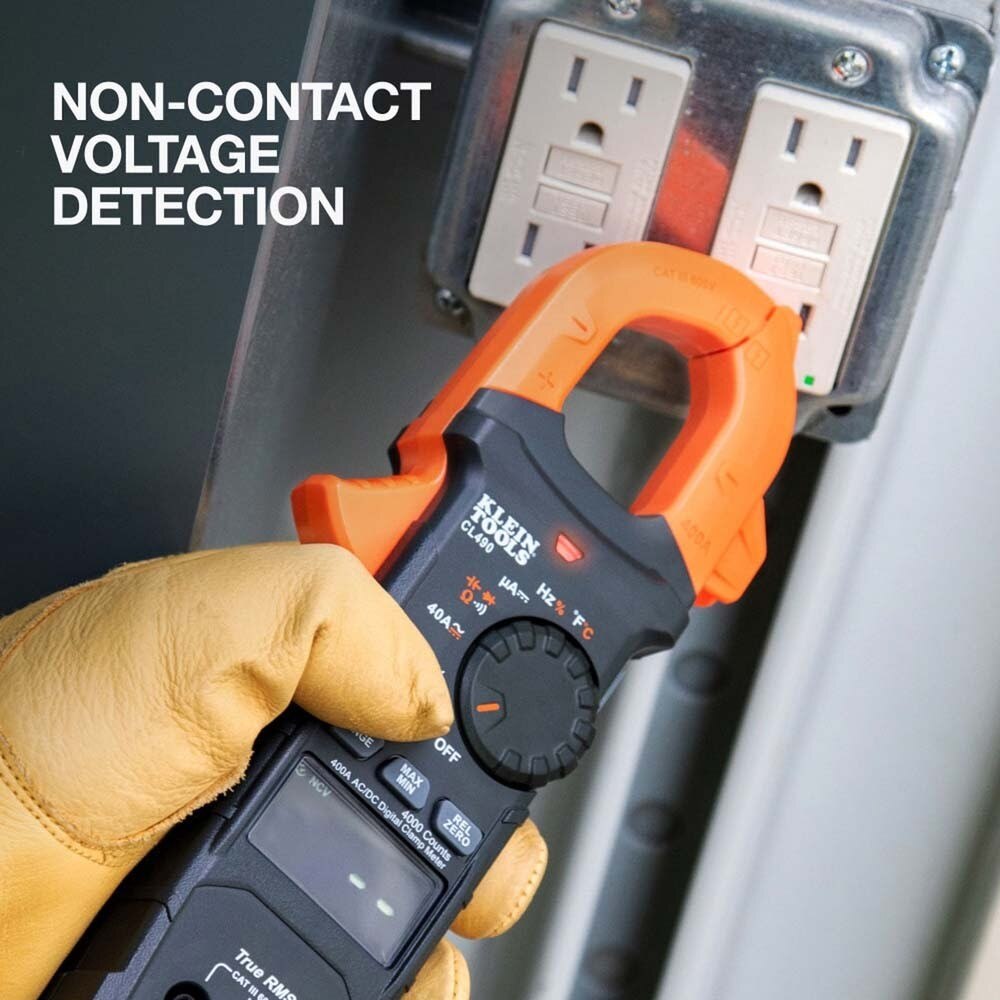

- Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
- Clamp body includes a side-mounted test lead holder and a back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation
Klein CL490 Specifications
| Type: | Dual Screen AC/DC Current TRMS Clamp |
| Application: | Measures AC/DC Current and NCVT via the Clamp and AC/DC voltage, DC Microamp Current, Resistance, Continuity, Frequency, Duty-Cycle, Capacitance and Tests Diodes via the Test Leads, and Temperature with Thermocouple |
| Special Features: | Bottom Display; Automatically Ranging; TRMS Measurement; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT |
| Material: | ABS/Electronics |
| Batteries: | 2 x AA |
| Battery Life: | |
| Auto-Power Off: | Yes, Unless Disabled on Startup |
| Jaw Size: | 1.6" (4.1 cm) |
| Drop Protection: | 6.6' (2 m) |
| Display: | 4000 Count Backlit, Hi-Viz |
| Display Size: | Main Display: 1.54" x 0.86" (3.9 cm x 2.2 cm) Secondary: 1.04" x 0.72" (2.6 cm x 1.8 cm) |
| Functions: | TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test, and Temperature |
| Auto Ranging: | Yes |
| TRMS: | Yes |
| Voltage: | 600V AC/DC |
| Frequency: | 10Hz - 60kHz |
| Current: | 400A AC/DC |
| Capacitance: | 4000?F |
