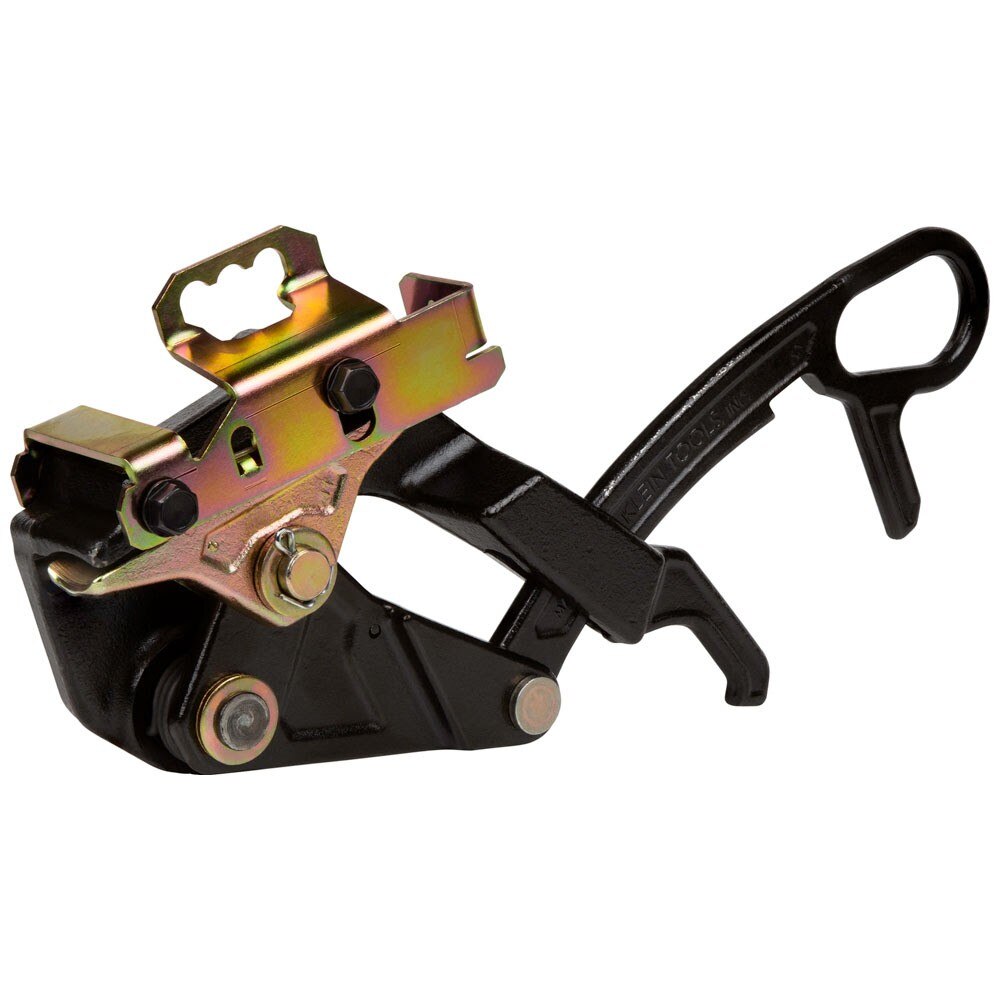

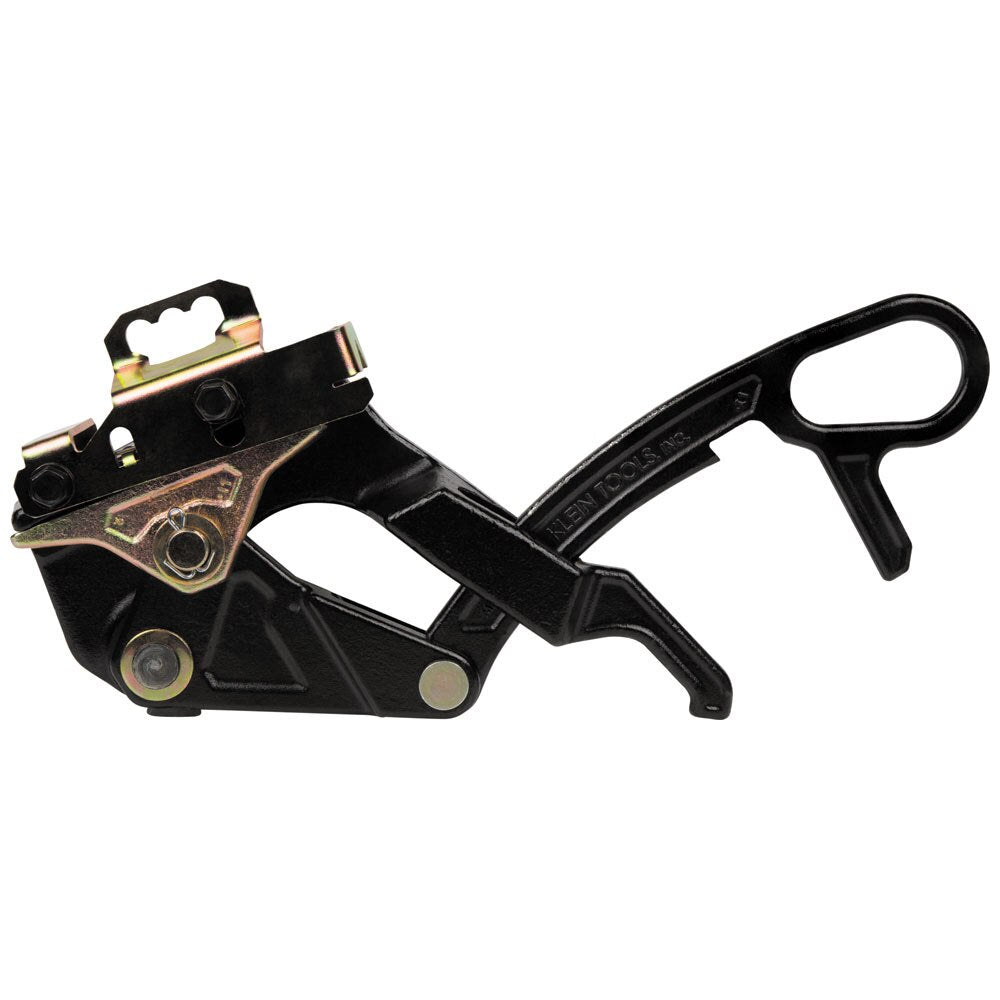

Klein 1649920 Wide Range Transmission Grip with Hot Latch

INCLUDES:
• (1) Transmission Grip

FEATURES:
• Cable pulling grip securely pulls ACSR, AAC and bare copper cables
• Holds cable sizes from 0.68-Inch to 1.42-Inch (17.3 to 36.1 mm)
• Includes a latch to help maintain cable position in the grip jaw
• Fine tooth jaw geometry provides greater grip strength
• Made in the USA

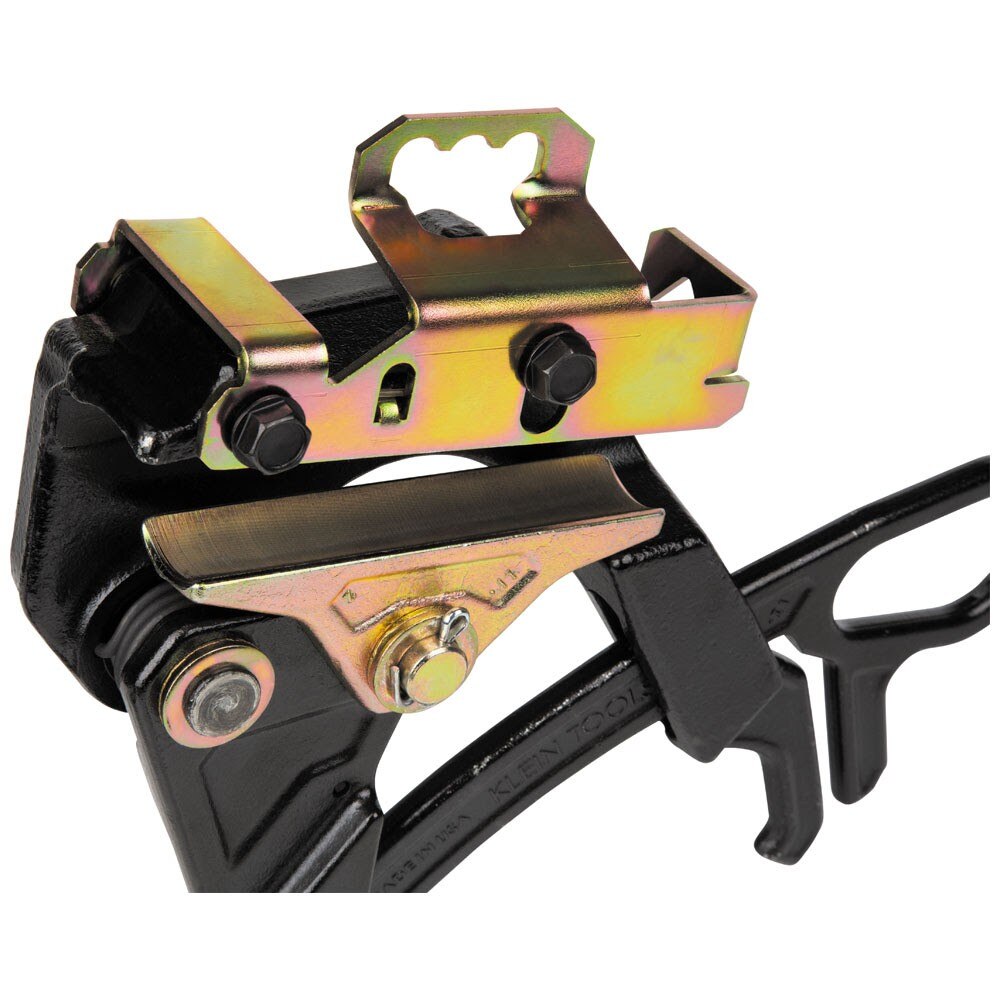

• Innovative hot latch with V-notch centers cable
• Spring closes grip on cable to hold the initial position
• Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
• Max Safe Load of 12000-Pound (5443 kg)
• Patent pending design

SPECIFICATIONS:
• Type: Parallel Jaw Grip
• Jaw Type: Round
• Jaw Length: 4.85" (12.3 cm)
• Material: Steel
• Cable Type: ACSR, AAC and Bare Copper
• Cable Diameter: 0.68" to 1.42" (17.3 to 36.1 mm)
• Maximum Safe Load: 12000 lb (5443 kg)
• Locking Handle: Y
• Hot Latch: Y
• Swing Latch: N
• Spring: Y
• Application: Wire Pulling
• Special Features: Hot Latch
• Overall Length: 13.1 (33.3 cm)
• Overall Height: 9.3" (23.6)
• Overall Width: 3.06" (7.8 cm)


The Klein Tools Wide Range Transmission Grip with Hot Latch was specifically designed to securely pull ACSR, AAC and bare copper cables. Holds a wide range of cable from 0.68-Inch to 1.42-Inch (17.3 to 36.1 mm). This grip has a maximum safe load of 12,000-Pound.
