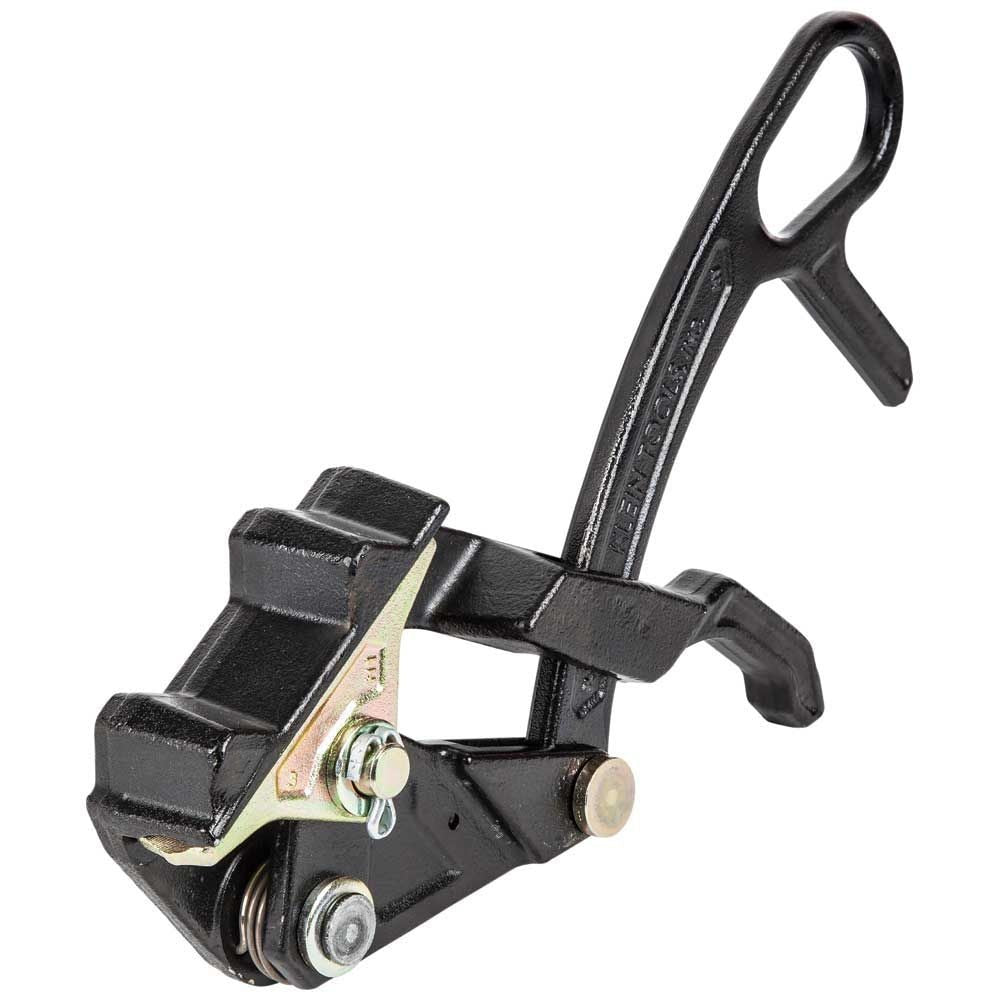

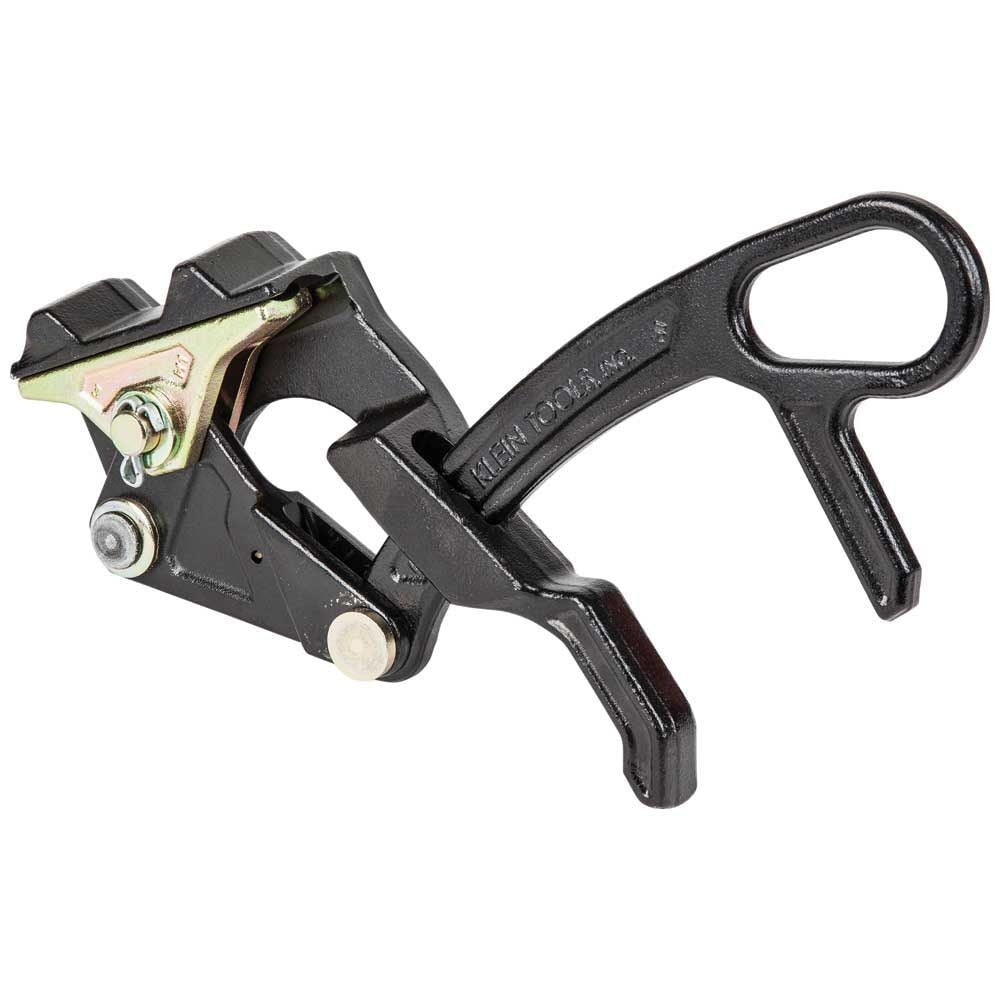

Klein 16477 Wide Range Distribution Grip

INCLUDES:
• (1) Wide Range Distribution Grip

FEATURES:

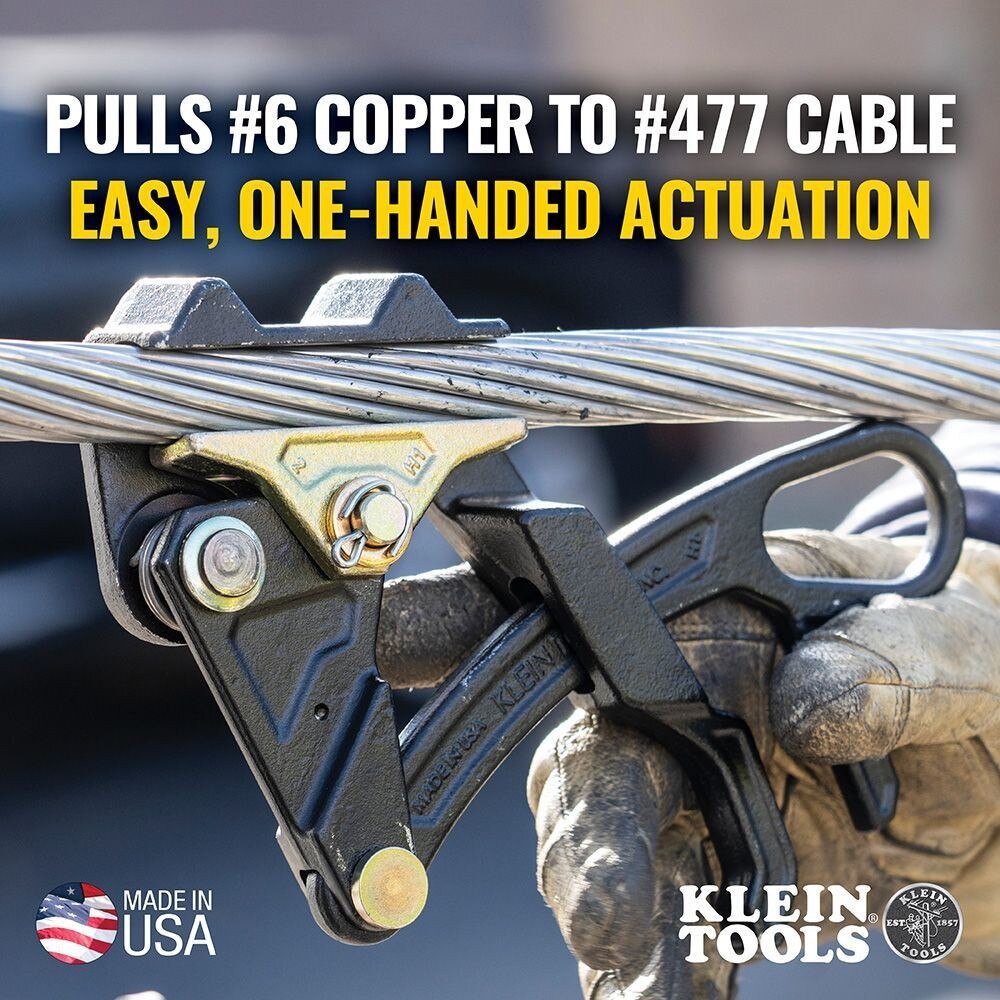

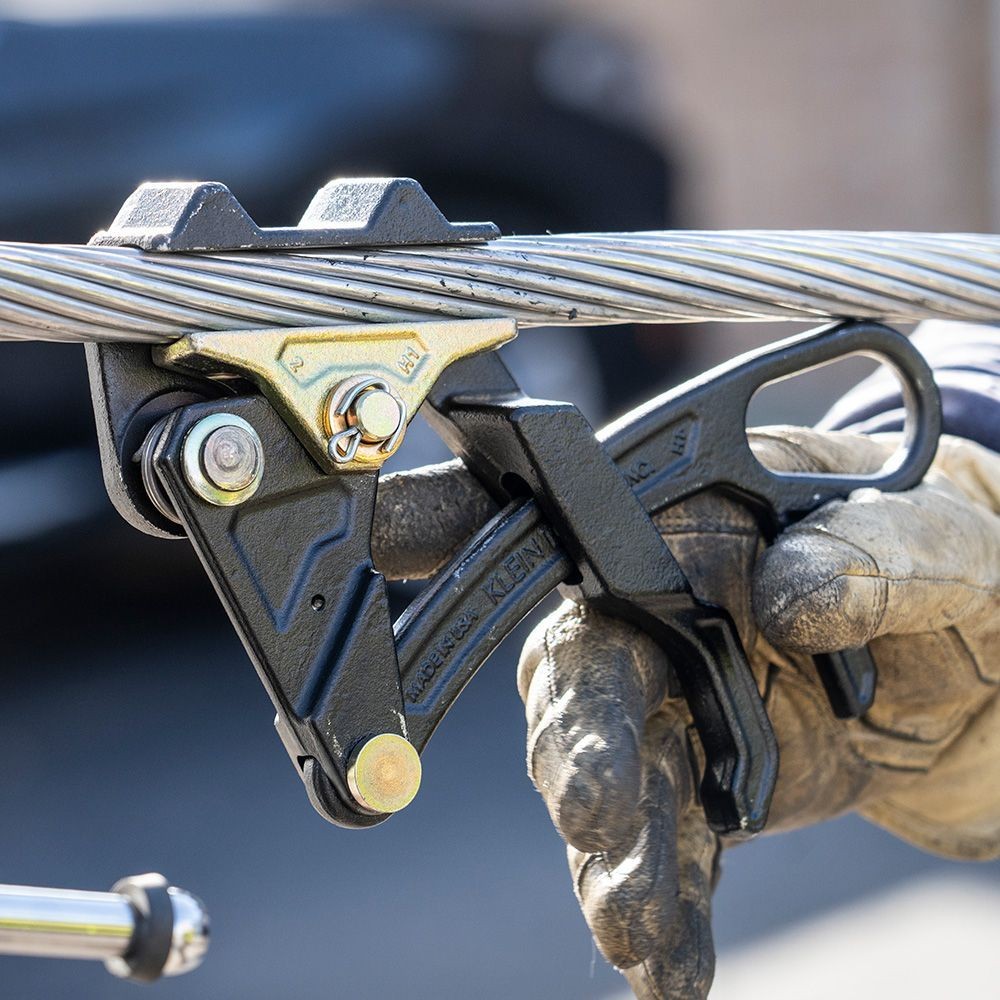

• Wide Range Distribution Grip pulls No. 6 Copper to No. 477 ACSR 0.162 to 0.883-Inch (4.11 to 22.42 mm) cable

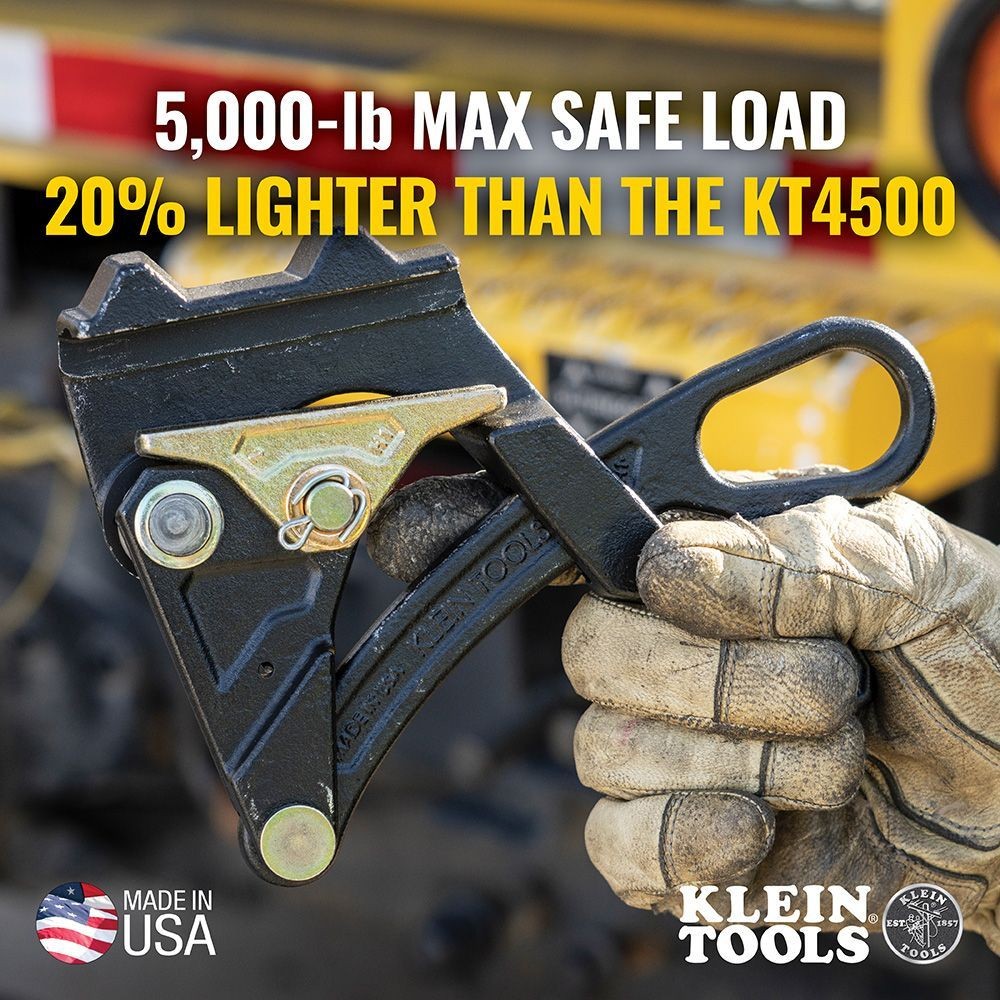

• 20-Percent lighter than the Cat. No. KT4500 grip

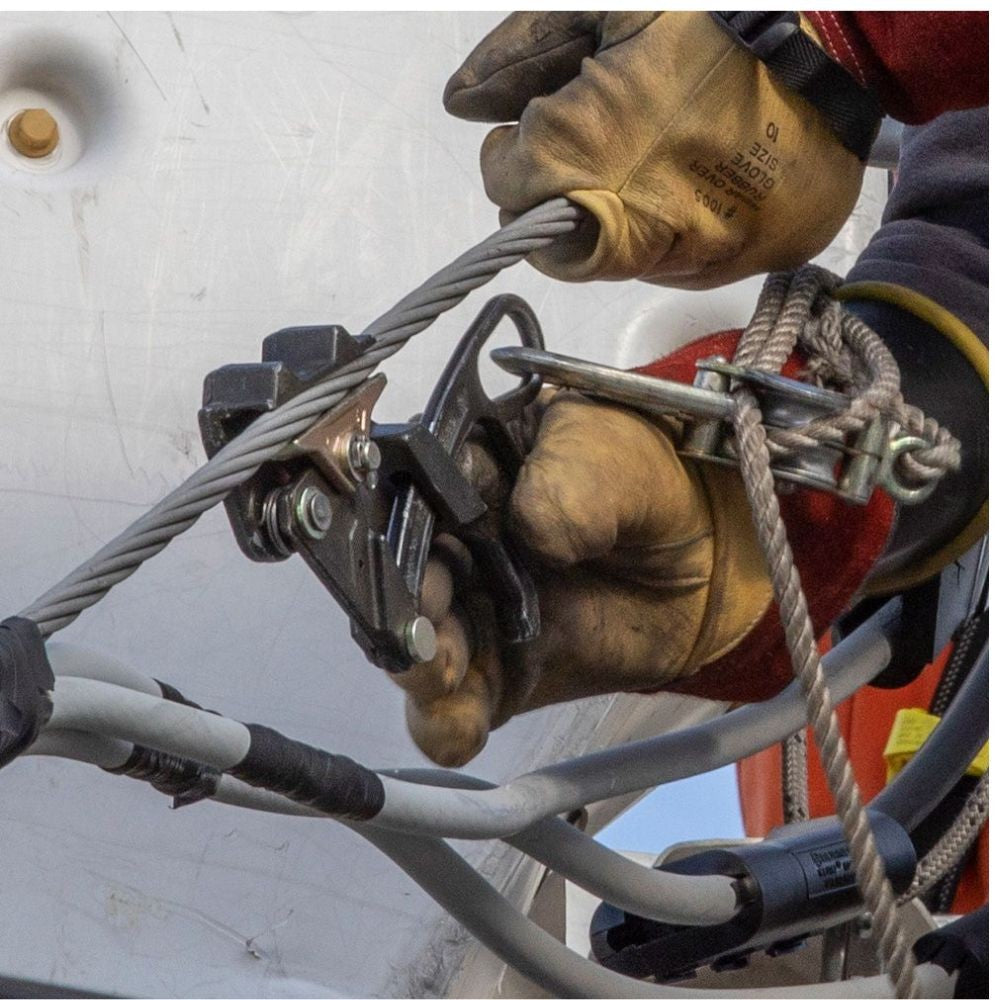

• One-handed design makes for easier actuation

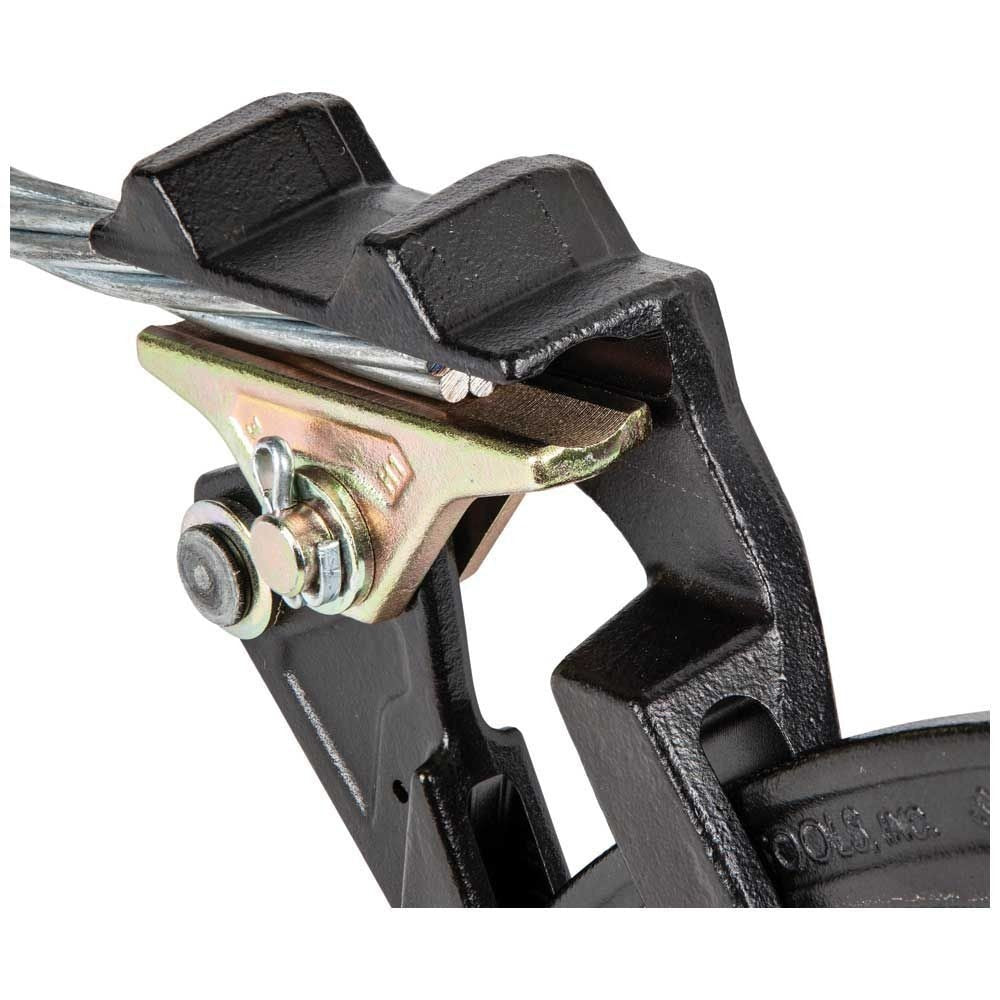

• Spring closes grip on cable to hold the initial position
• Made in the USA

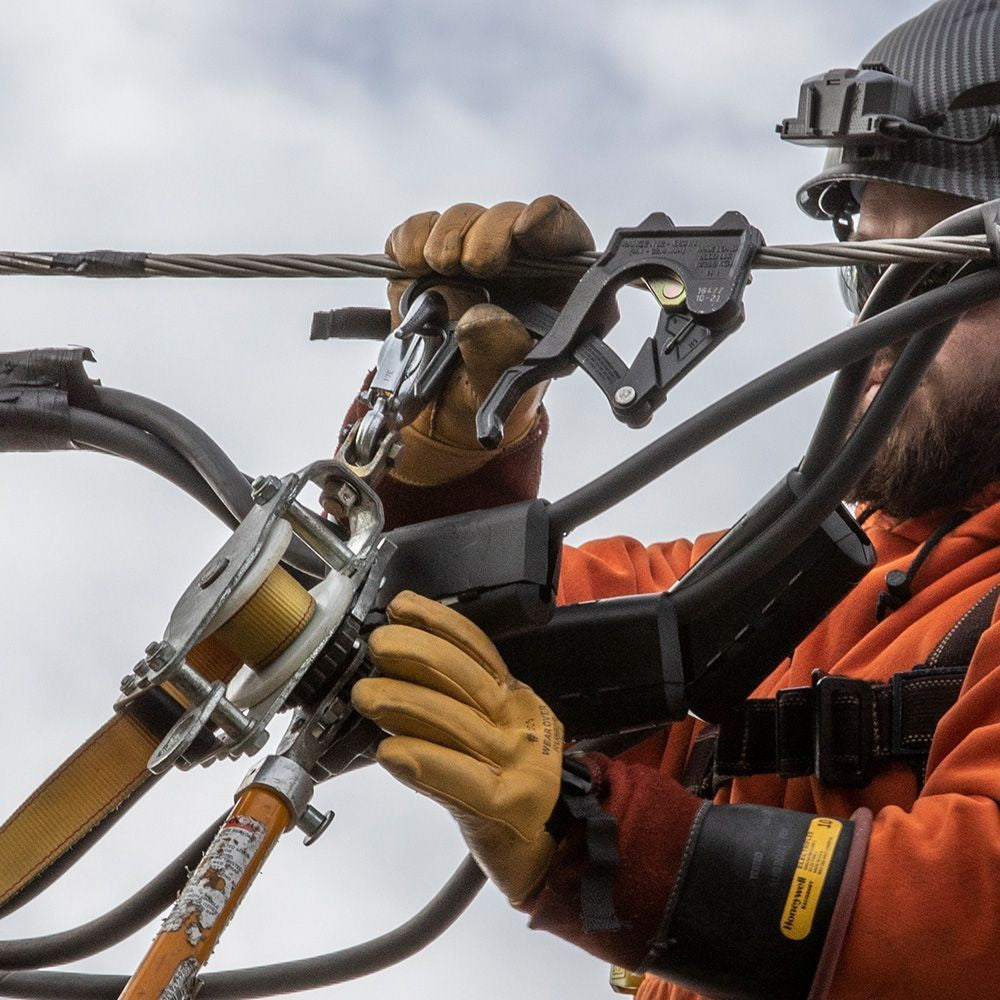

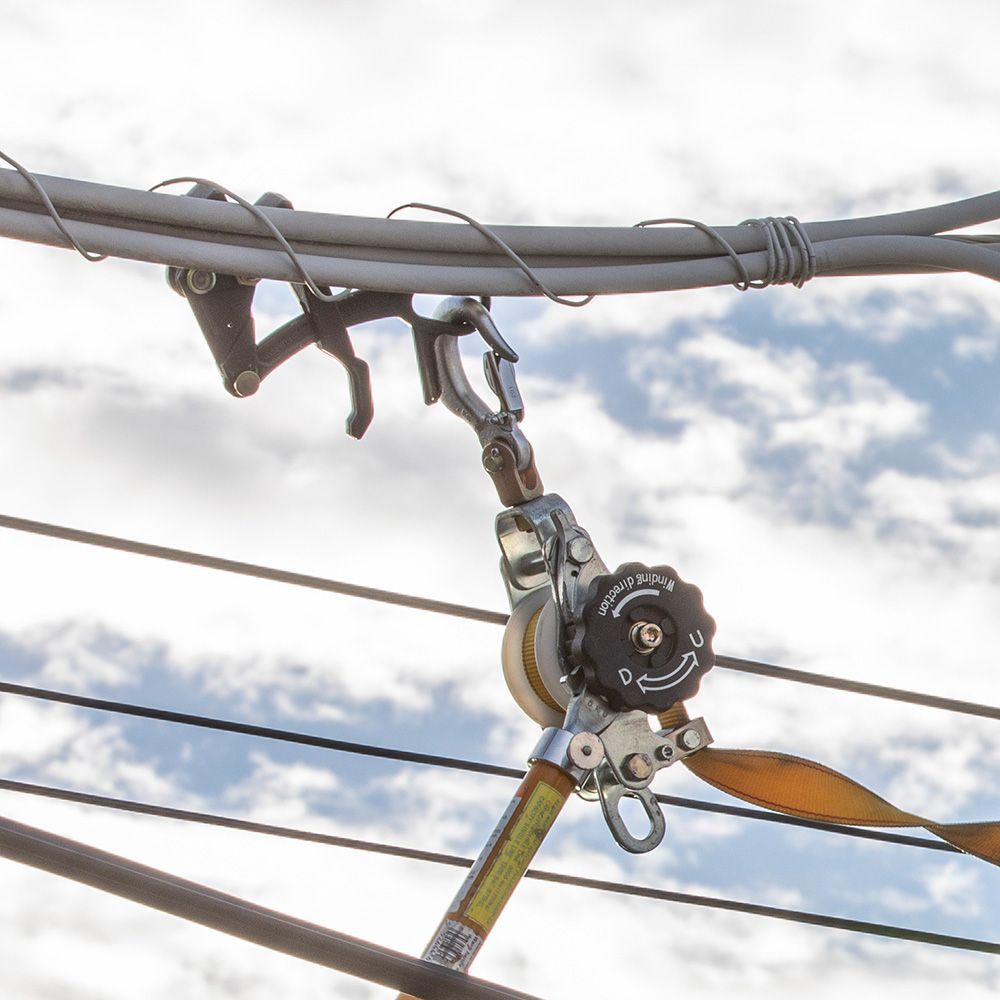

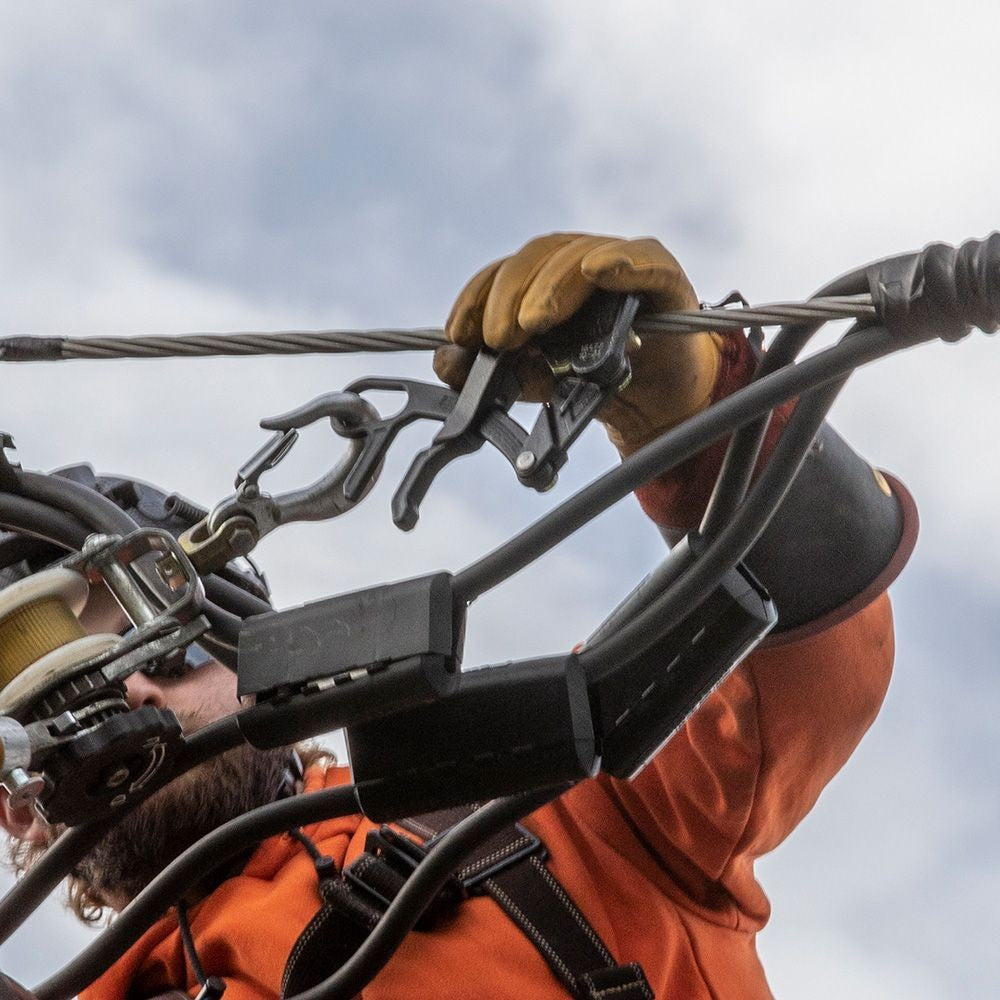

• Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
• Max Safe Load of 5000-Pound (2268 kg)
• Patent pending design

SPECIFICATIONS:
• Overall Length: 10" (25 cm)
• Overall Width: 6.5" (16.5 cm)
• Overall Height: 1.25" (3.2 cm)
• Material: Steel
• Jaw Length: 3.31" (8.4 cm)
• Cable Type: Bare Copper, Aluminum, ACSR
• Jaw Type: Round
• Maximum Safe Load: 5000 lbs (2268 kg)
• Cable Diameter: 0.162 to 0.883" (4.11 to 22.42 mm)
• Type: Parallel Jaw Grip
• Swing Latch: N
• Spring: Y
• Hot Latch: N
• Locking Handle: N
• Special Features: One-Handed Grip

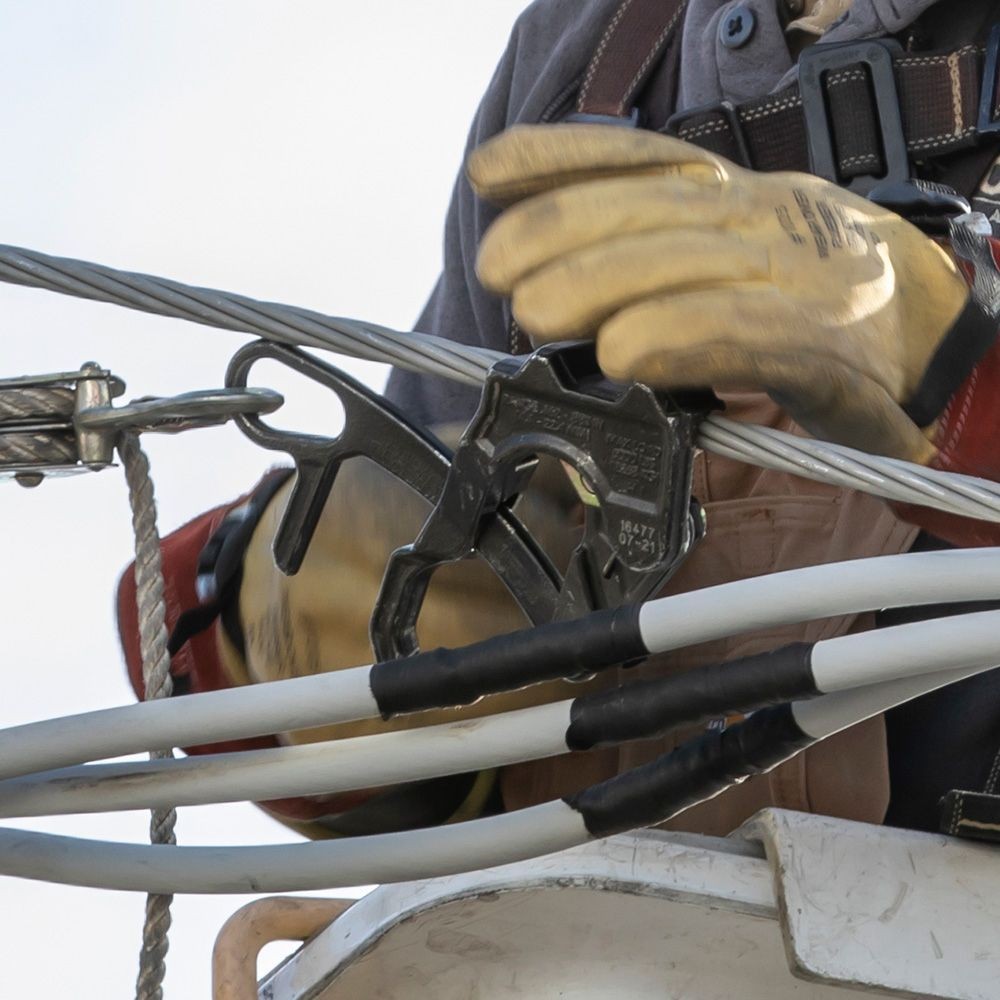

• Application: Wire Pulling
• Weight: 2.9 lbs (1.3 kg)


Versatile, one-handed grip holds a wide range of cable sizes pulling No. 6 Copper to No. 477 ACSR. 20-Percent lighter than Klein's Cat. No. KT4500 grip with easy, one-handed actuation. Made in the USA, this grip has a maximum safe load of 5000-Pound (2268 kg).
