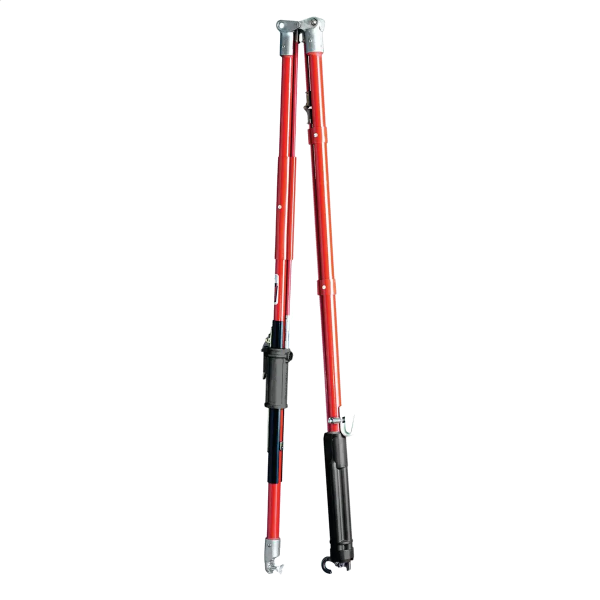

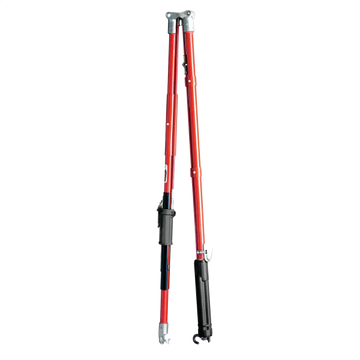

AB Chance Hinged Style Grip-All Sticks

The most versatile tool in a lineworker’s hands, the AB Chance Hinged-Style Grip-All stick puts an easy-to-control “finger” on an insulated pole. Although primarily designed for installing hot-line and grounding clamps, it serves both overhead and underground circuits with various end fittings. Commonly called a “shotgun,” the operating mechanism incorporates a sliding handgrip that opens the hook to grasp a clamp eye-screw and retract it into the tool head.

• External Operating Rod Type
• Tested per OSHA & ASTM F711
• Versatile tool puts an easy-to-control “finger” on an insulated pole

AB Chance Hinged Style Grip-All Sticks

A thumb latch then must be depressed to release the locked hand grip so it can open the hook. While the tool head is of Lexan® for close-quarter operations, the worker must maintain recommended working distance solely on the Epoxiglas® pole section of the handle as the hook and its actuator are metal parts. Easy to care for, Grip-All sticks do not require field stripping to clean. All insulated parts including the operating rod are outside the main pole, readily accessible to wipe dry. CAUTION: Do not clean the plastic head with solvent.

• External Operating Rod Type
• Tested per OSHA & ASTM F711
• Versatile tool puts an easy-to-control “finger” on an insulated pole
• Primarily designed for installing hot-line and grounding clamps
• Also serves both overhead and underground circuits with various end fittings
• Operating mechanism (or “shotgun”) incorporates a sliding hand grip that opens the hook to grasp a clamp eyescrew and retract it into tool head
• Latch must be depressed to release locked hand grip that opens the hook
• For smooth operation, investment-cast stainless-steel components include Jaw, Jaw Holder, Safety Stop, Lockbar and Latch
• Lexan® tool head is designed for close-quarter operations
• Worker must maintain recommended work distance, based solely on the Epoxiglas® pole section of the handle, as the hook and its actuator are metal parts
• Easy-care Grip-All Clampsticks do not require field stripping to clean
• All insulated parts, including the operating rod, are outside the main pole, readily accessible to wipe dry
