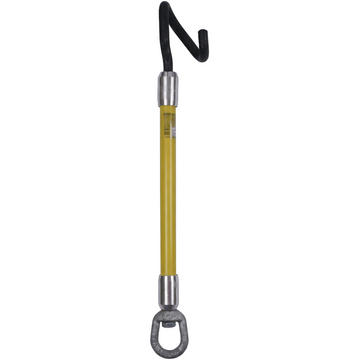

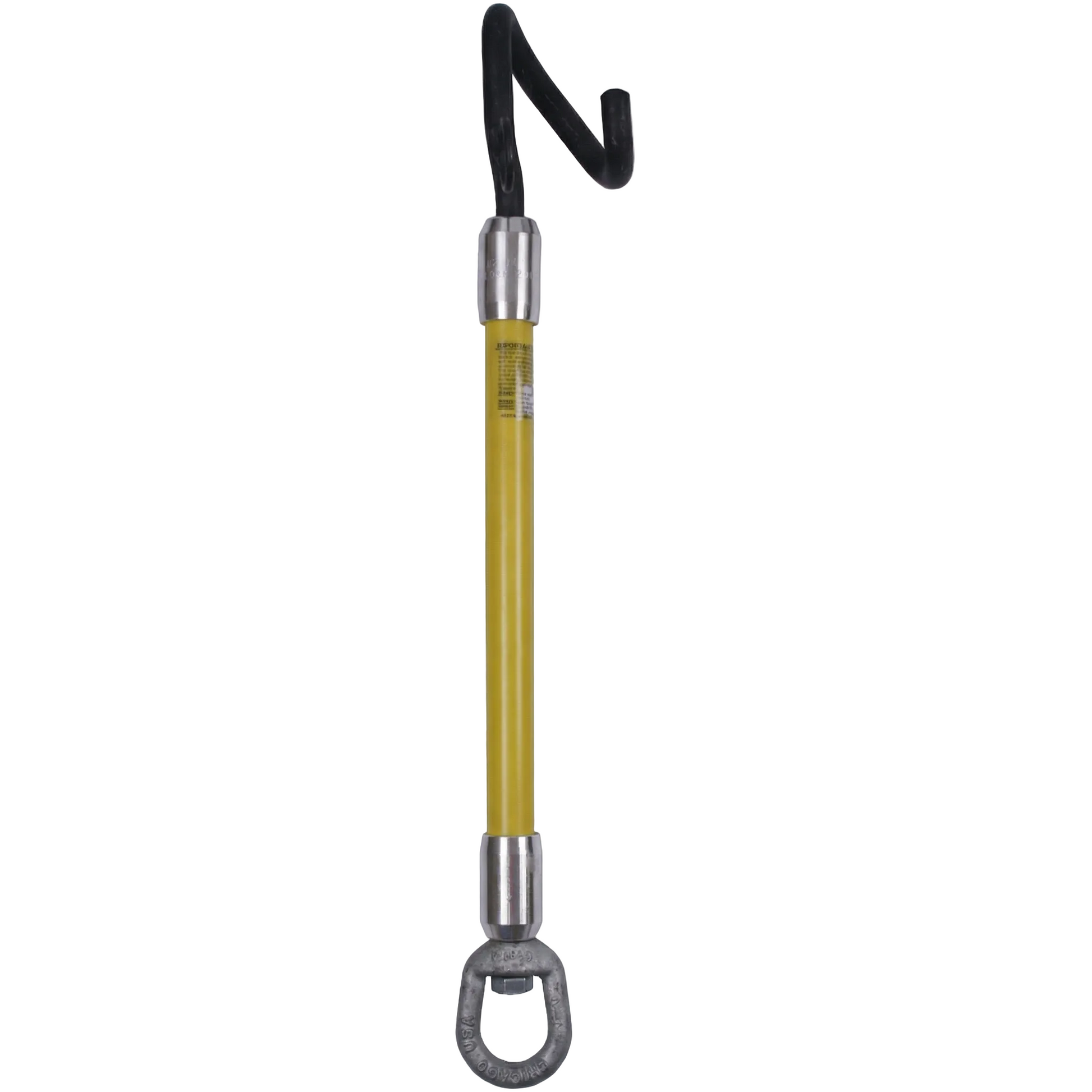

Hastings 3480 Spiral Link Stick

Description:

The Hastings 3480 Spiral Link Stick is a durable, one‑piece fiberglass insulating tool designed to safely separate rope lines, hoists, and rope blocks when working around energized conductors. Built with a high‑strength spiral steel hook and an integrated lifting eye for hot‑stick installation, it provides a reliable insulating barrier between equipment at different electrical potentials. With load capacity up to 2,000 lbs and compatibility with conductors up to 795 ACSR, this stick delivers dependable performance for transmission and distribution crews who need safe, controlled rigging during energized operations.

Physical Specifications:

• Available lengths: 24 in, 36 in, 48 in, 60 in

• Stick diameter: 1 in OD fiberglass (one‑piece)

• Hook material: High‑strength, heat‑treated steel

• Maximum conductor size: 795 ACSR

• Load limit: 2,000 lbs

• Includes lifting eye for hot‑stick installation

Key Features:

• Provides electrical isolation between energized components and rigging equipment

• Hot‑stick operable for safe, controlled placement

• Spiral steel hook ensures secure engagement with rope lines and hardware

• Durable fiberglass body resists contamination and field wear

• Fast, reliable installation for energized line work

• Suitable for hoists, rope blocks, and rigging requiring insulation

Compatibility & Usage:

• Works with rope lines, hoists, and rope blocks in energized environments

• Prevents accidental energization through rigging hardware

• Compatible with standard hot‑line tools

• Ideal for T&D crews, storm response, and energized maintenance

• Suitable for conductor setups up to 795 ACSR
