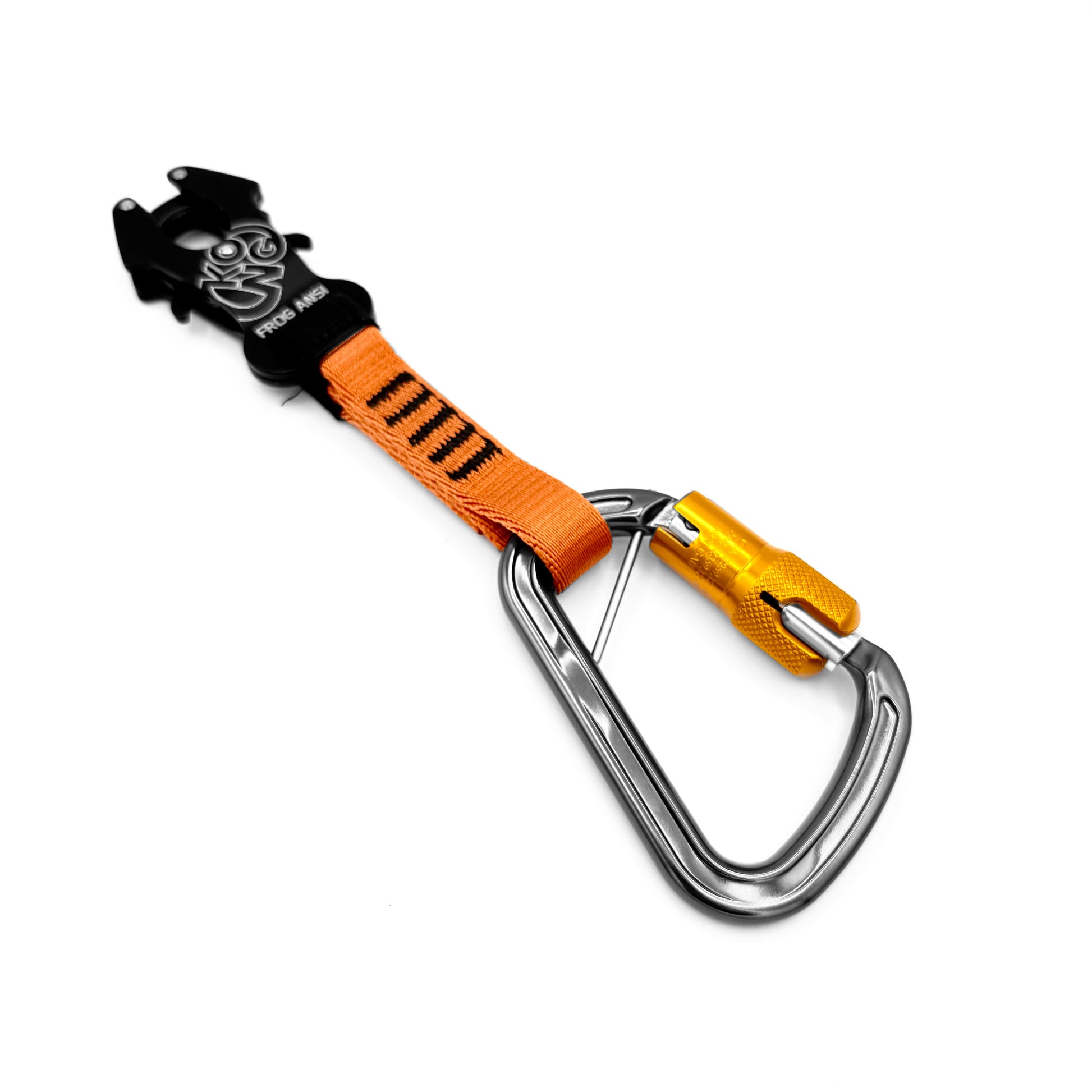

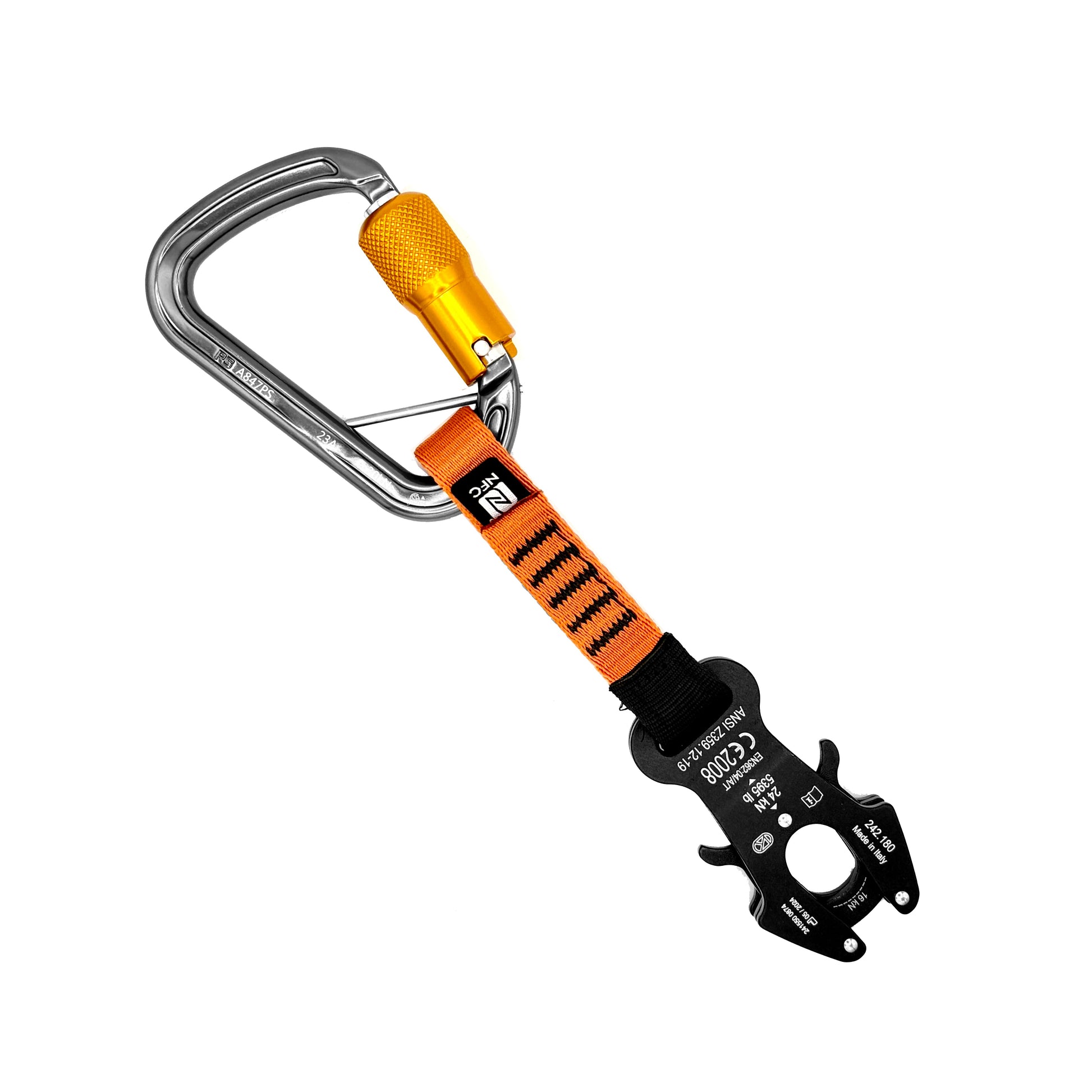

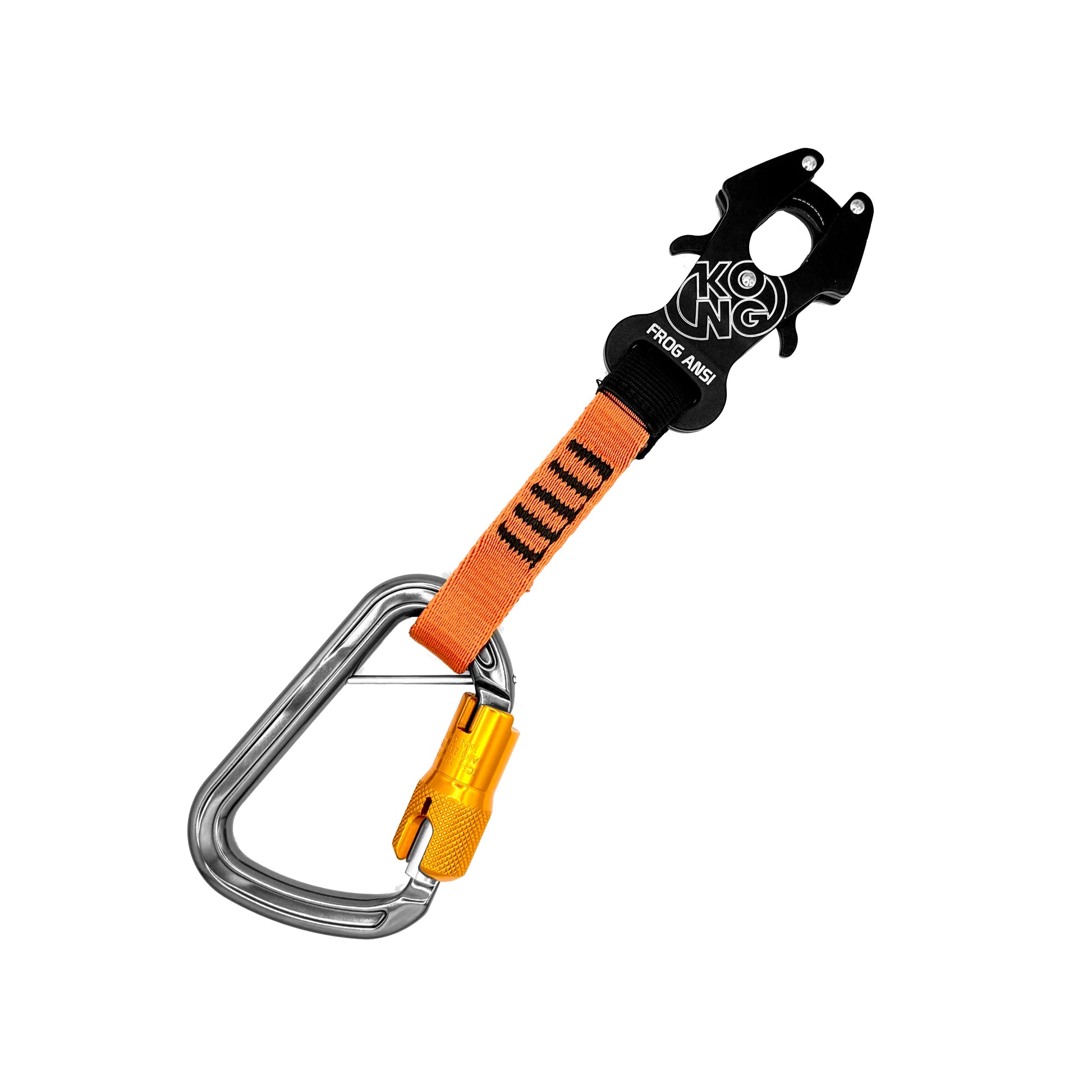

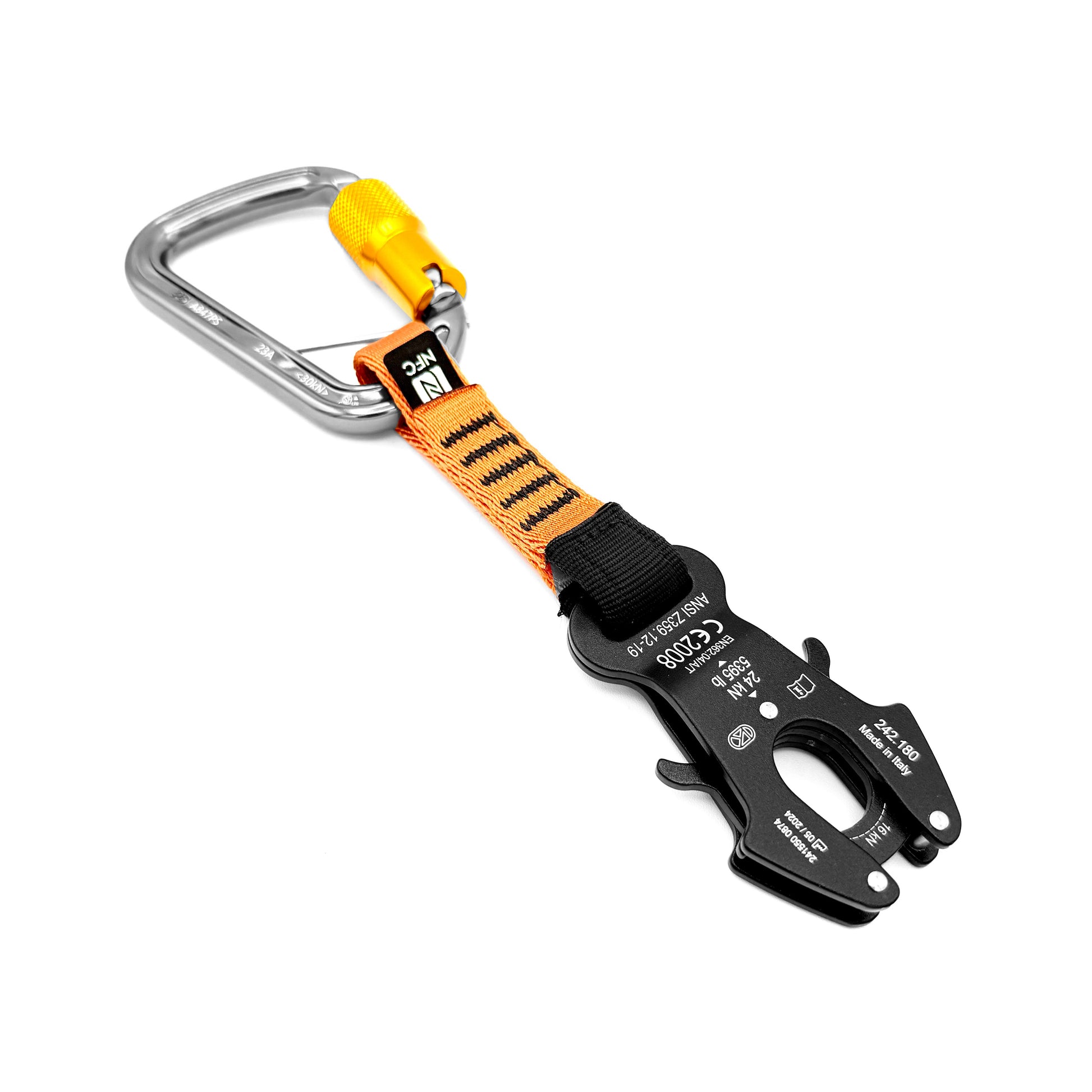

FROG ANSI QUICKDRAW
FROG ANSI QUICKDRAW
ALUMINUM ALLOY | AUTOMATIC CLOSURE | TRIPLE ACTION

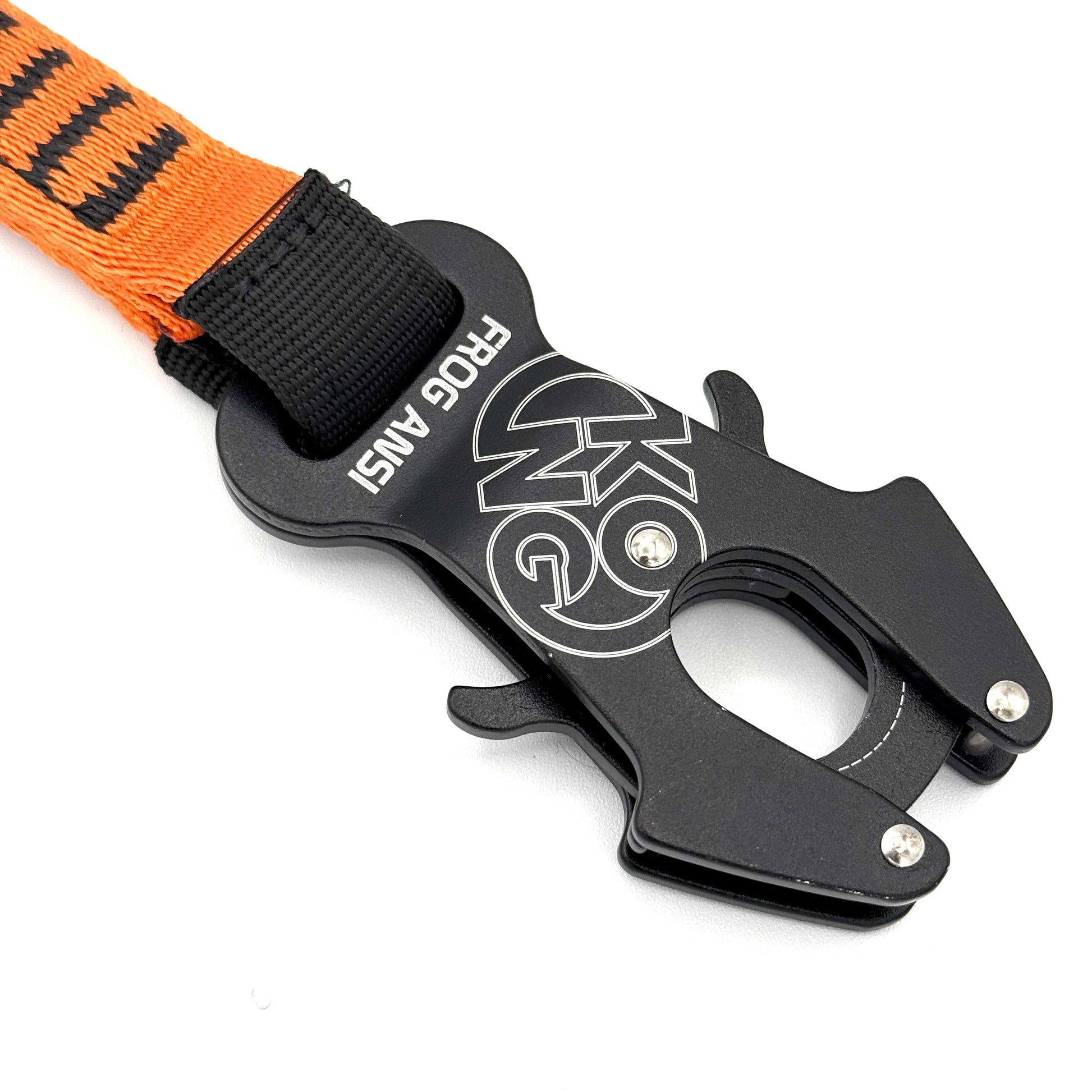

FROG ANSI
The FROG family is still growing! FROG ANSI is the model compliant with the ANSI Z359.12-19 standard. This well-known directional connector enables quick and safe connection thanks to the innovative automatic gate closure system. It closes automatically upon contact with the anchor point. Sling with a length of 120 mm with a reinforced loop, equipped with NFC chip for traceability. High quality product completely developed and made in Italy.

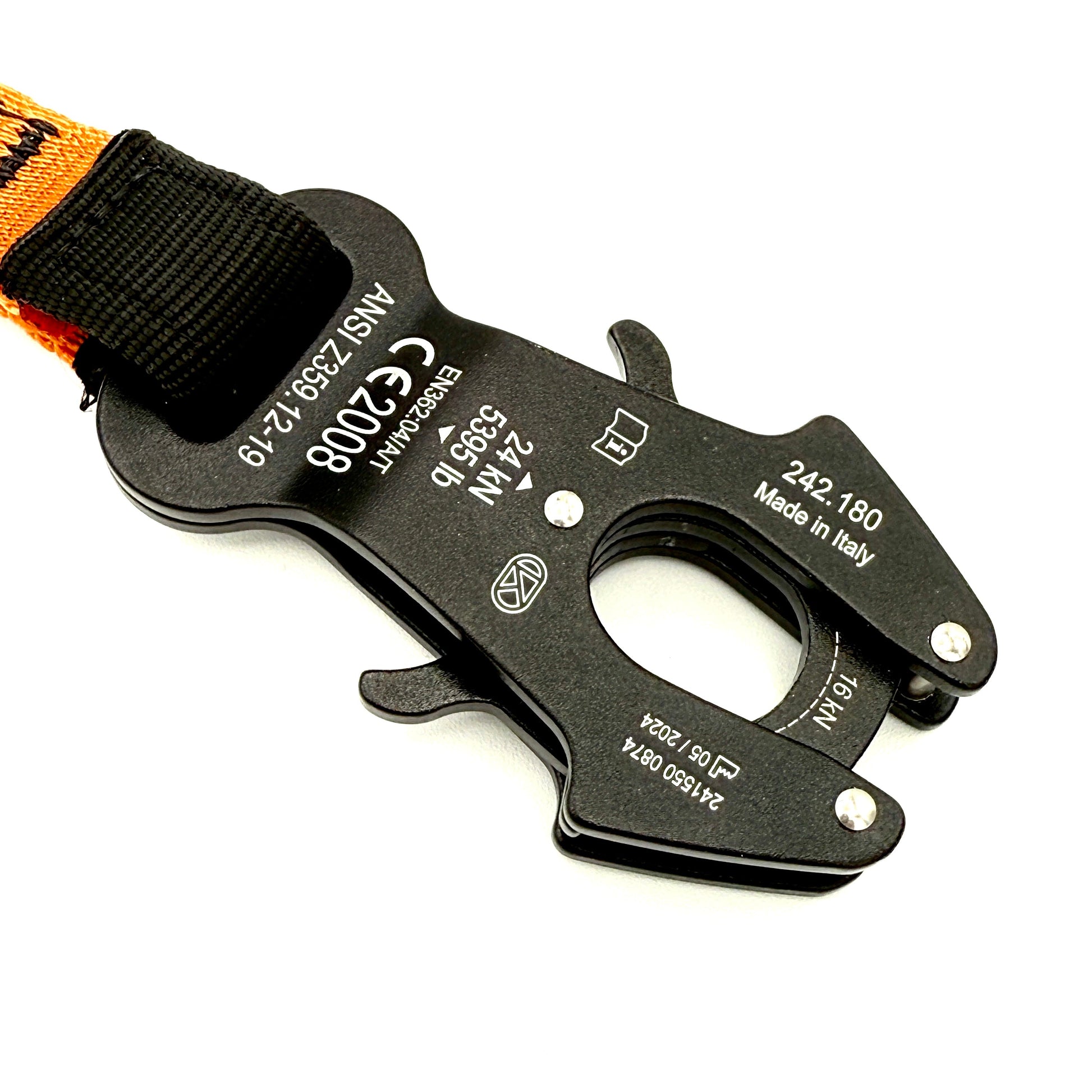

Standards - ANSI Z359.12, EN 362 A/T
Material - Alu Alloy
Main Axis Load - 24 kN
Weight - 90g
Length - 190mm
Width - 51mm
Gate Opening Diameter - 13mm
-

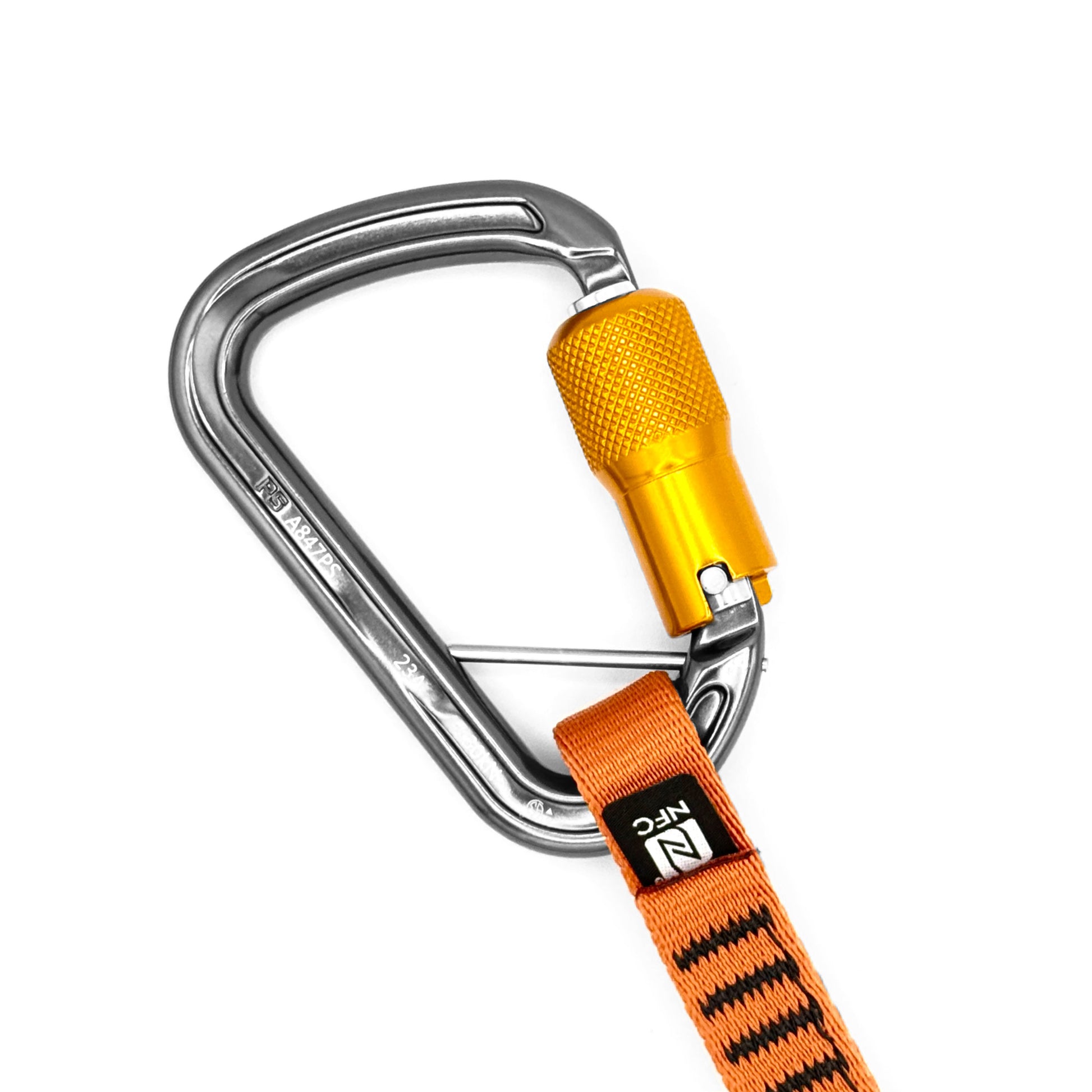

ANSI ALUMINUM AUTO-BLOCK CARABINER
Standards - ANSI/ASSE Z359.12-2019, CSA Z259.12-16
Material - Drop Forged Aluminium
Min Tensile Strength - 6,730 lbs (30kN)
Min Gate Strength - 3,600 lbs (16kN)
Min Side Load Strength - 3,600 lbs (16kN)
Minor Axis Strength - 3.600 lbs (16kN)
100% proof loaded - To 3,600 lbs (16kN)
Shape - Asymmetrical
Weight - 4.0 oz (113gm)
Comes with Captive Bar installed
