Pole Mounted Extension Arm

FEATURES:

The Slingco ITP14726 and ITP14771 Fiberglass Extension Arms are engineered to give linemen safe, reliable temporary conductor support when working in congested areas or during energized maintenance. Built to Slingco’s high standards and compliant with ASTM and OSHA requirements, these arms provide the clearance, stability, and control needed for hot work, reconductoring, and insulator replacement.

Both models feature a rugged fiberglass body, double‑conductor wire holders, and a secure mounting system designed to fit crossarms up to 6" × 6". Each arm includes a QR code for instant access to manuals and safety documentation in the field.

The difference between the two models comes down to the securing method:

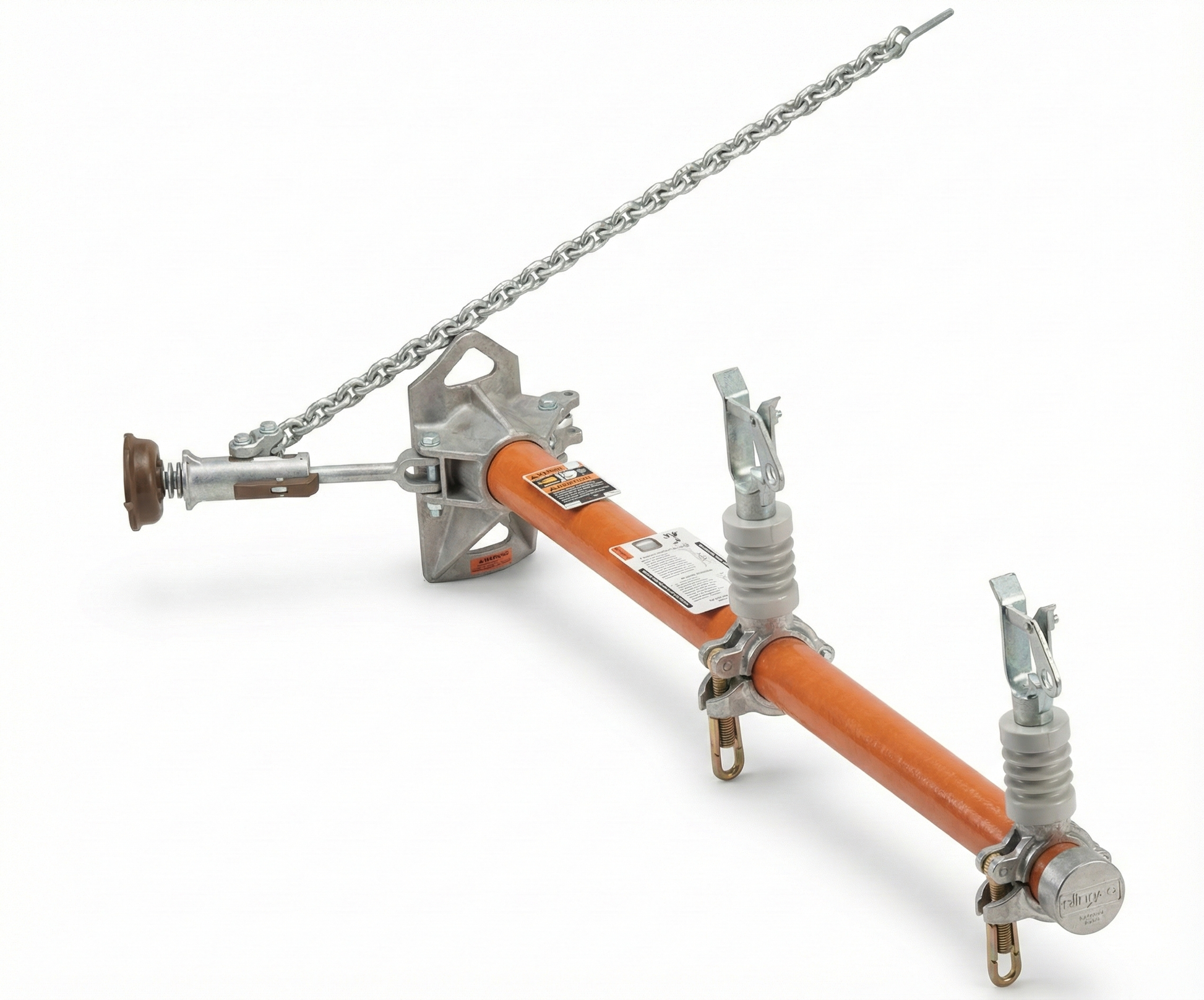

• ITP14726 uses a chain binder system for double‑conductor applications.

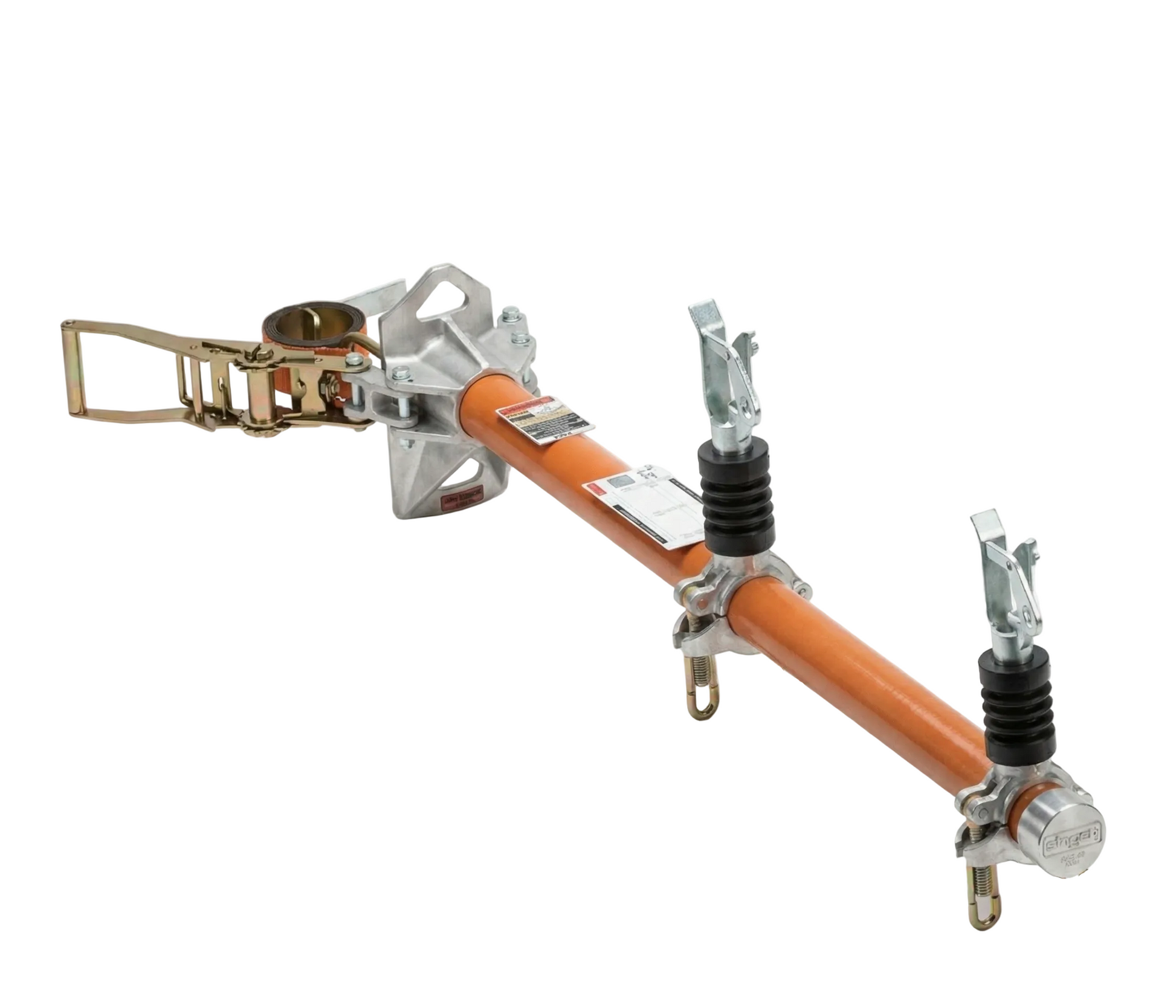

• ITP14771 uses a ratchet strap system for double‑conductor applications.

Both are trusted solutions for utilities and contractors who need dependable temporary hot arms that meet modern safety and performance standards.

FEATURES:

• Double‑conductor capacity with secure wire holders

• High‑strength fiberglass construction for durability and electrical insulation

• Meets ASTM F711, OSHA 1910.269, and OSHA 1926.957 requirements

• Voltage rating: 34.5 kV with insulators, 15 kV without insulators

• Large wire holder accommodates conductor up to 1.6" diameter

• Bronze hardware for long‑term corrosion resistance

• QR code on each arm for instant access to manuals and safety documentation

• Designed for energized work, reconductoring, and temporary conductor relocation
