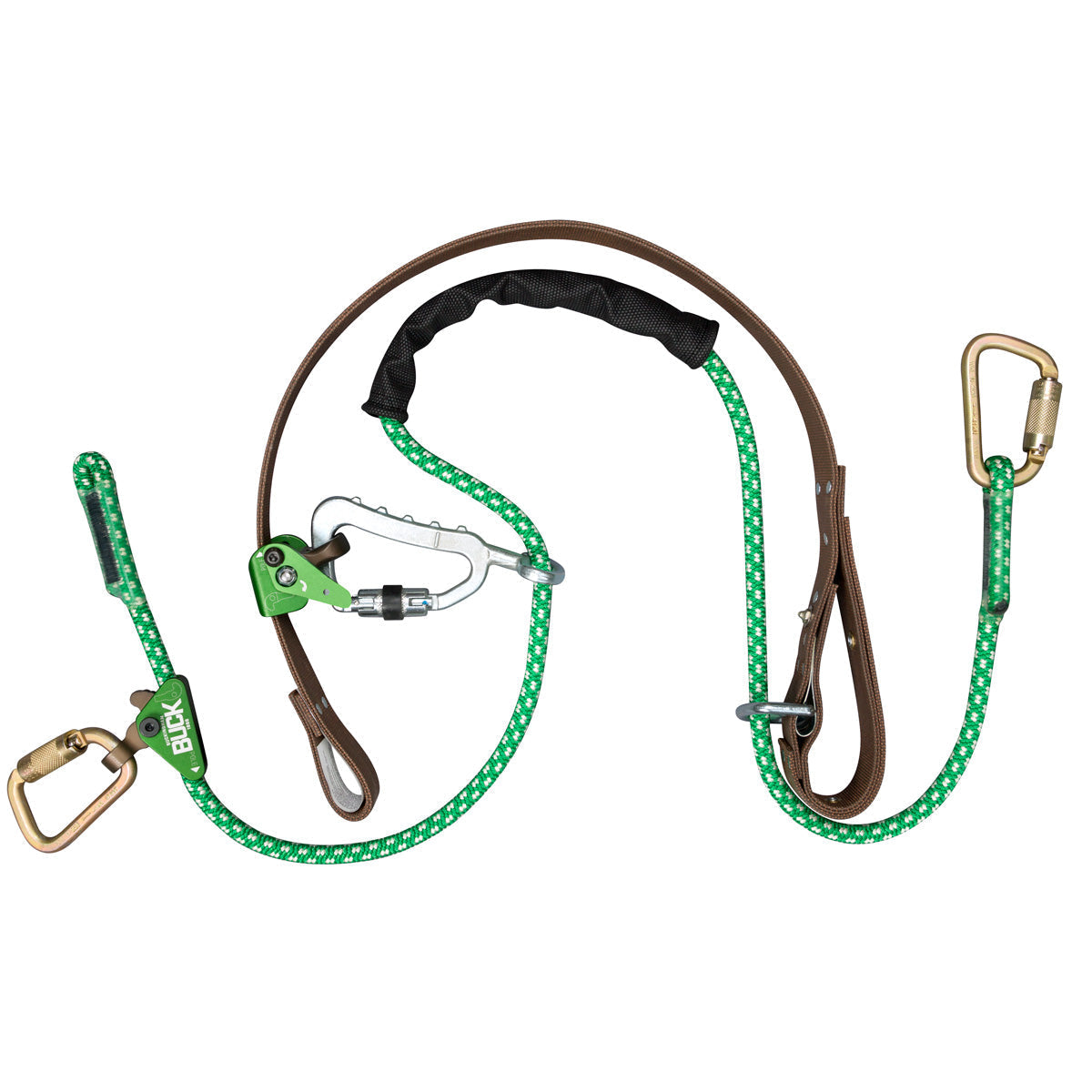

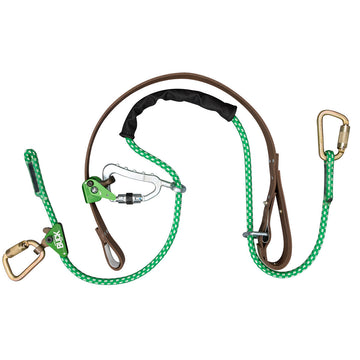

EZ Squeeze™ with Inner Rope Strap for Transmission - 490RT
EZ Squeeze™ with Inner Rope Strap for Transmission - 490RT
The transmission EZ Squeeze™ is a lightweight Wood Pole Fall Restriction device that offers a 78” inner rope strap and a 52” outer nylon strap for use when climbing transmission poles.
Patented Product.
The EZ Squeeze™ has numerous configurations available that allow the EZ Squeeze™ to fit many climbing styles and needs.
Features:
- A loop handle on the outer strap provides a more ergonomic position for the user’s hands while ascending or descending.
- The EZ Squeeze™ handle has now been improved by reinforcing the handle to provide more rigidity, which makes ascending and descending easier.
- The new design & placement provides the user with easier lateral movement by preventing the rope from encountering the handle.
- This improvement also moves the handle forward putting your hands more in-line, which closely simulates the old feeling of “hitchhiking.”
- Through the use of the BuckGrab™, the EZ Squeeze™ features easy one-handed adjustment of the inner rope strap, and based on the user’s preference, can easily be configured to use a rope or web strap.
- One point of disconnect when climbing over an obstruction.
- Easily used by right or left-handed users.
- Red warning center within straps to facilitate visual inspection for excessive wear.
- 3,600 lb. gate-rated hardware.
- Its modular design makes it easy to change out worn or damaged components or straps in the field.
| Product Number: | 490RT |
| Product Name: | EZ Squeeze™ with Inner Rope Strap for Transmission |
| Body Belt Connector Type: | Carabiners |
| Body Belt Connector Material: | Steel |
| Inner Strap Length: | 78″ |
| Inner Strap Material: | Rope with Wear Guard |
| Inner Adjustment Type: | Aluminum Rope Grab |
| Outer Strap Length: | 52″ |
| Outer Strap Material: | Neoprene Impregnated Nylon |
| Outer Strap Adjustment Type: | Aluminum WebGrab |
| Buckhorn: | Yes |
| Pole Size: | Up to Class 1, 65′ pole & 50″ circumference |
| Weight: | 5 lbs. |
| User Weight Capacity: | 350 lbs. |
| Standards: | ASTM F887 |
| Made In USA: | Yes |
SuperSqueeze™ & EZ Squeeze™ Instructions & Warnings
SuperSqueeze™ / EZ Squeeze™ Replacement Parts
