JOURNEYMAN LINEMAN OWNED & OPERATED

SKU: 490KQ4

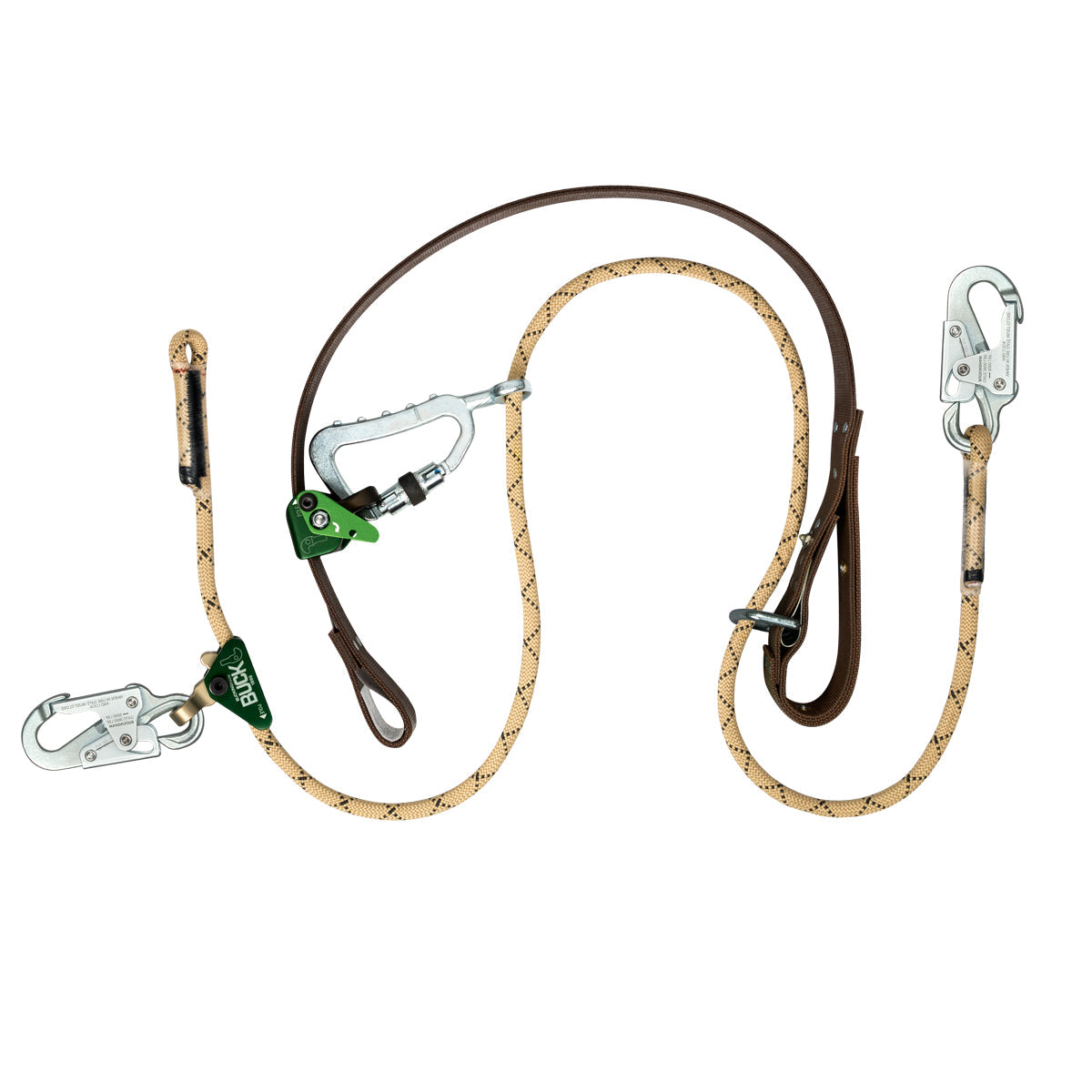

EZ Squeeze™ with Tough Rope™ for Distribution - 490KQ4

Vendor Buckingham
Regular price $1,220.60
Sale price $1,220.60 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

Bucks new wear-resistant TrebleKern Tough Rope is constructed with an energy-absorbing nylon core, red braided polyester inner cover (red wear indicator), and an abrasion and heat resistant Technora outer cover that eliminates the need for a wear guard. No more jamming of your wear guard!

The New Lightweight Design EZ Squeeze™ offers superb Wood Pole Fall Restriction capabilities and easy one-handed outer strap adjustment through the use of Buckingham’s patent-pending WebGrab™ and with the New BuckHorn™ Adjustment Lever. This new component allows EZ length adjustment of the outer strap, without the need for the user to remove their weight from the device. With just a flick of the wrist, users can adjust the strap in and just tapping the BuckHorn™ to adjust out.

Features steel locking snap hooks as body belt connectors, in place of carabiners.

Patented Product.

*Because of its numerous available configurations, the EZ Squeeze™ fits many climbing styles and needs.

**This unit is rated for a 350 lb. the user when fully equipped and is manufactured, tested, and inspected to meet the applicable requirements of the ASTM F887 standard.

FEATURES:

  • The New EZ Squeeze™ also features a Loop Handle on the outer strap that provides a more ergonomic position for the user’s hands while ascending or descending
    • The EZ Squeeze™ handle has now been improved by reinforcing the handle to provide more rigidity, which makes ascending and descending easier
    • The new design & placement provides the user with easier lateral movement by preventing the rope from encountering the handle
    • This improvement also moves the handle forward putting your hands more in-line, which closely simulates the old feeling of “hitchhiking”
  • Through the use of the BuckGrab™, the EZ Squeeze™ features easy one-handed adjustment of the inner rope strap, and based on user’s preference, can easily be configured to use a rope or web strap
  • One disconnect point when climbing over an obstruction
  • Easily used by right or left-handed users
  • Red warning center within straps to facilitate visual inspection for excessive wear
  • 3600 lbf. gate rated hardware
  • Its modular design makes it easy to change out worn or damaged components or straps in the field

SPECIFICATIONS:

Model Number: 490KQ4
Product Name: EZ Squeeze with Tough Rope™ for Distribution
Body Belt Connector Type: Snap hooks
Body belt connector material: Steel
Inner Strap Length: 70"
Inner Strap Material: Tough Rope™
Inner Adjustment Type: Aluminum RopeGrab™
Outer strap length: 36"
Outer Strap Material: Neoprene Impregnated Nylon
Outer Strap Adjustment Type: Aluminum WebGrab™
BuckHorn™: Yes
Pole Size: Up to a class H6 125′ Pole / 90″ Circumference
Weight: 5 lbs.
User Weight Capacity: 350 lbs.
Standards: ASTM F887
Made in the USA?: Yes

INSTRUCTIONS & WARNINGS:

SuperSqueeze™ & EZ Squeeze™ Instructions & Warnings
Body Belts & Positioning Straps
SuperSqueeze™ Serration Grips
Positioning Device with WebGrab™
Carabiner Maintenance
SuperSqueeze™ / EZ Squeeze™ Replacement Parts

VIDEOS:

EZ Squeeze Product Review (DOWNLOAD)

Introducing The EZ Squeeze (DOWNLOAD)

The EZ Squeeze Retrofit Kit (DOWNLOAD)


TRAINING - EZ Squeeze (DOWNLOAD)

BROCHURES:

EZ Squeeze Brochure
