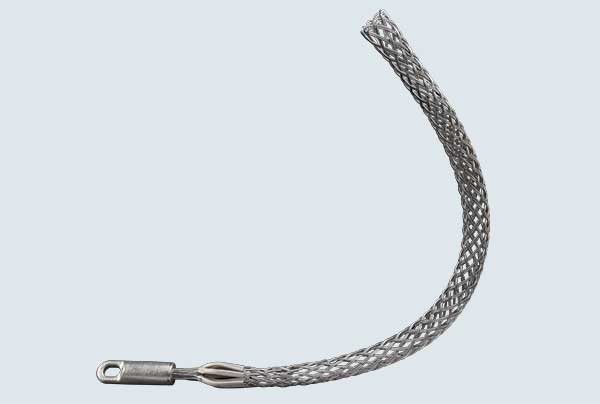

Double weave construction for medium to heavy pulling applications in underground installations. Additionally its steel forged revolving head is ideal for connecting to Slingco swivels.
Warning: The Slingco RT Type Rotating Eye Grip does not revolve under load. The rotating eye does not replace the need for a swivel. Please see page 17 for swivel and grip match-up and safety and technical information.
*Usually ships in 7 to 14 days.
Features and benefits
- Double weave construction
- Increased pulling strength
- Protective shoulders to prevent abrasion
- Rotating eye to easily match with line swivel
| SHORT LENGTH - GALVANISED STEEL | |||
| Range (in) | Lattice Length (in) | Approx. Break Load (lb) | Slingco Part No. |
|---|---|---|---|
| 0.50 - 0.62 | 11 | 5,600 | ZCS2734 |
| 0.62 - 0.75 | 11 | 6,800 | ZCS2735 |
| 0.75 - 1.00 | 20 | 6,800 | ZCS2736 |
| 1.00 - 1.50 | 21 | 12,800 | ZCS2738 |
| 1.50 - 2.00 | 25 | 16,400 | ZCS2739 |
| 2.00 - 2.50 | 26 | 27,200 | ZCS2740 |
| 2.50 - 3.00 | 28 | 33,000 | ZCS2741 |
| 3.00 - 3.50 | 30 | 41,000 | ZCS2742 |
| 3.50 - 4.00 | 32 | 43,000 | ZCS2743 |
| 4.00 - 4.50 | 33 | 43,000 | ZCS2744 |
| STANDARD - LONGER LENGTH - GALVANISED STEEL | |||
| Range (in) | Lattice Length (in) | Approx. Break Load (lb) | Slingco Part No. |
|---|---|---|---|
| 0.50 - 0.62 | 16 | 5,600 | ZCS2745 |
| 0.62 - 0.75 | 16 | 6,800 | ZCS2746 |
| 0.75 - 1.00 | 32 | 9,600 | ZCS2747 |
| 1.25 - 1.50 | 33 | 16,400 | ZCS2748 |
| 1.50 - 2.00 | 34 | 16,400 | ZCS2749 |
| 2.00 - 2.50 | 36 | 27,300 | ZCS2750 |
| 2.50 - 3.00 | 38 | 33,000 | ZCS2751 |
| 3.00 - 3.50 | 39 | 41,000 | ZCS2752 |
| 3.50 - 4.00 | 41 | 43,000 | ZCS2753 |
| 4.00 - 4.50 | 42 | 43,000 | ZCS2754 |
| 4.50 - 5.00 | 58 | 43,000 | ZCS2755 |
| 5.00 - 6.00 | 60 | 43,000 | ZCS2756 |
| 6.00 - 7.00 | 66 | 43,000 | ZCS2757 |
