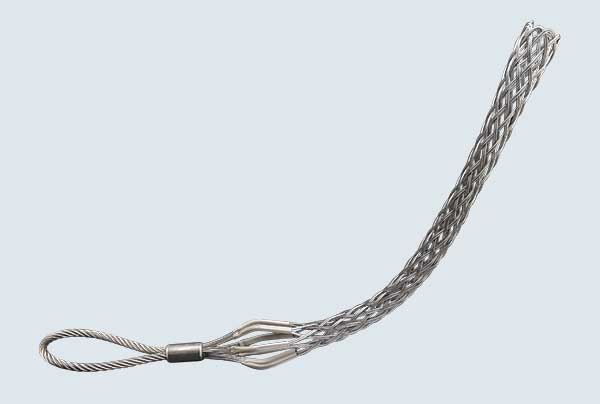

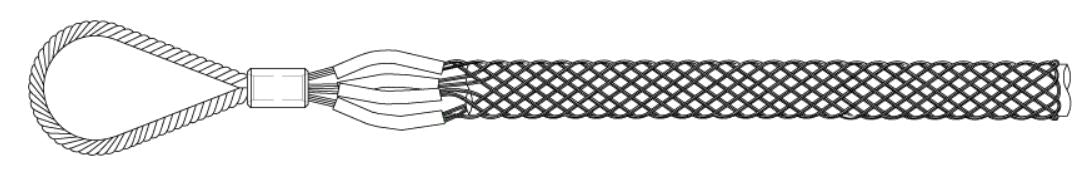

This Slingco grip features a double weave construction for medium to heavy pulling applications in underground installations.
*Usually ships in 7 to 14 days.
Features and benefits
- Double weave construction
- Increased pulling strength
- Protective shoulders to prevent abrasion
- Flexible eye easy match with a line swivel
SHORT LENGTH - GALVANISED STEEL | |||
Range (in) | Lattice Length (in) | Approx. Break Load (lb) | Slingco Part No. |
---|---|---|---|
0.50 - 0.62 | 21 | 4,500 | ZCS2511 |
0.62 - 0.75 | 24 | 5,600 | ZCS2512 |
0.75 - 1.00 | 24 | 6,800 | ZCS2513 |
1.00 - 1.50 | 24 | 9,600 | ZCS2514 |
1.50 - 2.00 | 24 | 16,400 | ZCS2515 |
2.00 - 2.50 | 24 | 18,500 | ZCS2516 |
2.50 - 3.00 | 24 | 24,500 | ZCS2517 |
3.00 - 3.50 | 24 | 24,500 | ZCS2518 |
3.50 - 4.00 | 26 | 31,000 | ZCS2519 |
LONGER LENGTH - GALVANISED STEEL | |||
Range (in) | Lattice Length (in) | Approx. Break Load (lb) | Slingco Part No. |
---|---|---|---|
0.75 - 1.00 | 36 | 6,800 | ZCS2520 |
1.00 - 1.50 | 36 | 9,600 | ZCS2521 |
1.50 - 2.00 | 36 | 16,400 | ZCS2522 |
2.00 - 2.50 | 36 | 18,500 | ZCS2523 |
2.50 - 3.00 | 36 | 24,500 | ZCS2524 |
3.00 - 3.50 | 36 | 24,500 | ZCS2777 |
3.50 - 4.00 | 40 | 31,000 |
ZCS2778 |
