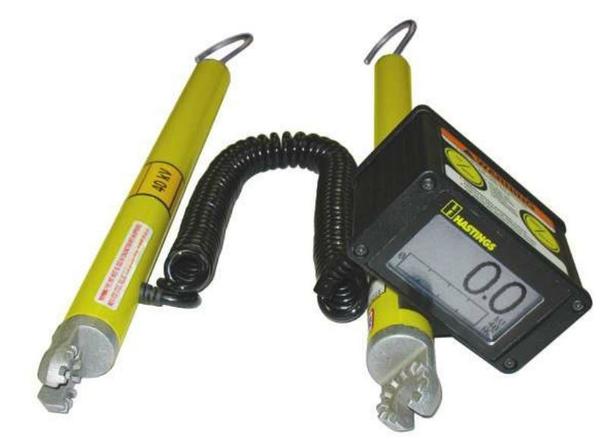

Instrument for measuring overhead and underground voltages. Two modes of operation AC and Hi-Pot. 0-40KV meter up to 240KV with resistors. Automatically adjust voltage display to match resistors if used. Hi-Pot mode for testing URD cable. In Hi-Pot mode bar graph marks the peak voltage while cable is being charged. Large easy to read digital meter and analog bar graph. Digital meter reads to nearest 100 volts. Meter had lighted background that can be turned on for use in poor light conditions. Meter enclosure made of high quality rugged extruded aluminum. Auto shutdown after 40 minutes if no voltage is detected. Long battery life from three AAs. Auto self test and battery check during start up. The coiled, self retracting cable is 16" retracted and 10 when fully extended. Weighs 5 lbs.
Description
Instrument for measuring overhead and underground voltages. Two modes of operation AC and Hi-Pot. 0-40KV meter up to 240KV with resistors. Automatically adjust voltage display to match resistors if used. Hi-Pot mode for testing URD cable. In Hi-Pot mode bar graph marks the peak voltage while cable is being charged. Large easy to read digital meter and analog bar graph. Digital meter reads to nearest 100 volts. Meter had lighted background that can be turned on for use in poor light conditions. Meter enclosure made of high quality rugged extruded aluminum. Auto shutdown after 40 minutes if no voltage is detected. Long battery life from three AAs. Auto self test and battery check during start up. The coiled, self retracting cable is 16" retracted and 10 when fully extended. Weighs 5 lbs.
