DDIN 7″ Universal Grounded Block DNCB-1G
DDIN 7″ Universal Grounded Block DNCB-1G
DDIN Universal Grounded Blocks feature a 5-1/8” ground stud installed through the frame. The grounding stud is offered on both the CB-1 and CB-2 universal blocks. These blocks maintain the same trusted features as the standard universal blocks: a high-strength aluminum alloy frame, heavy-duty sealed ball bearings, and 3 versatile mounting options.
Specifications:
Application: Transmission & conductor stringing
Model: DNCB-1G Universal Grounded Block
Ground Stud Size: 5-1/8″ installed through frame
Frame Material: High-strength aluminum alloy

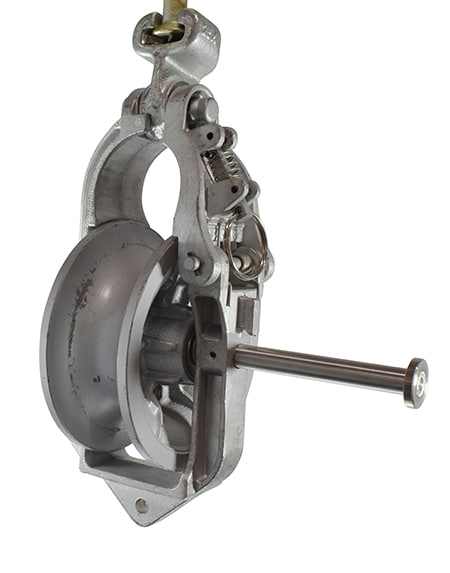

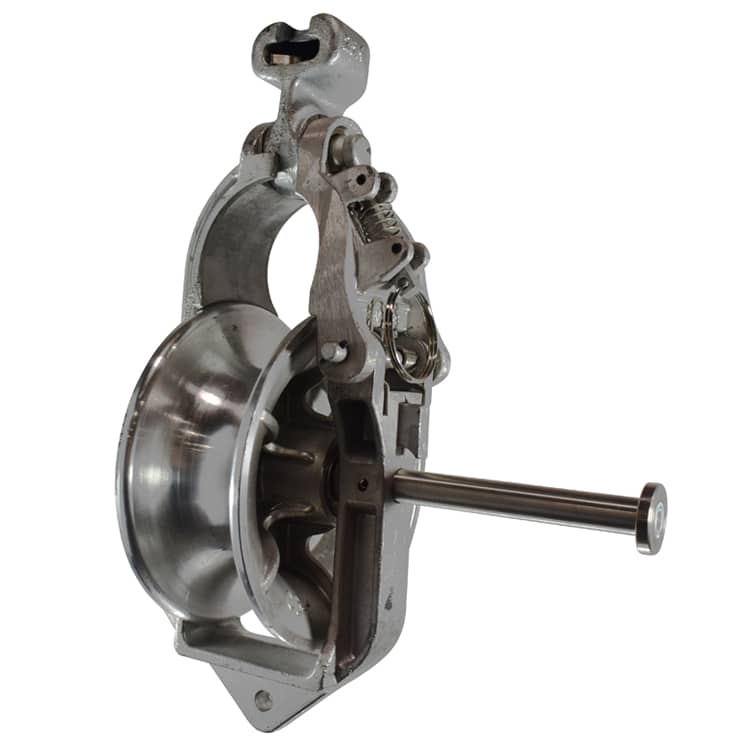

Sheave Variations: Aluminum, Ductile Iron
Bearings: Heavy-duty sealed ball bearings
Mounting Options: Crossarm bracket, insulator bracket, suspended mount
WLL: 2,500 lbs
Build: Low maintenance, industrial grade
Use For: Utility lines, grounded conductor handling
Features:
• Built-in grounding stud for safe operation
• Strong aluminum alloy frame for long service life
• Sealed ball bearings for smooth, maintenance-free use
• Designed for harsh field conditions
• Multiple mounting options for flexible installation
• Available in aluminum and ductile iron sheaves
• Reliable load handling up to 2,500 lbs
