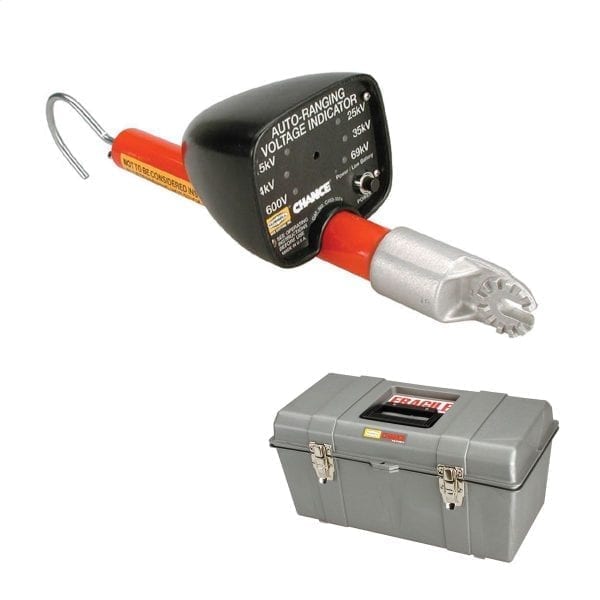

CHANCE Auto-Ranging Voltage Indicators

These smart new-generation Auto-Ranging Voltage Indicators (ARVI) make hot-line voltage testing easier than ever.

Contact us if you have any questions.

CHANCE Auto-Ranging Voltage Indicators

• Makes hot-line voltage testing easier than ever
• State-of-the-art electronics eliminate need for selector switch
• Automatic-ranging function quickly displays approximate phase-to-phase voltage class
• Provides easy, yet reliable means for operator to determine if a line is: De-energized, or Carrying less than normal system voltage from any source or induced voltage from an adjacent live circuit, or Energized at full system voltage
• Simple-to-operate tester attaches to an Epoxiglas® insulating universal handle of appropriate length to maintain proper OSHA working clearances
• Single push button activates the instrument, then a single light indicates either Power On (by glowing solid) or Low Battery (by blinking)
• With good battery condition, instrument performs a confirming self-test
• It does this by illuminating each of the six indicator lights in series while emitting an alternating audible signal
• Then the probe can be brought into contact with the conductor
• It automatically begins detecting at approximately 480 Volts and holds display of one of these voltage classes: 600 V, 4 kV, 15 kV, 25 kV, 35 kV, or 69 kV phase-to-phase
• Audible signal begins as a slow beeping, becoming faster as final reading is displayed
• When not in use, unit’s energy-saving Sleep mode automatically conserves battery
• For overhead testing, a Shepherd Hook probe is included with the Basic ARVI (Auto-Ranging Voltage Indicator)
• For underground testing, Elbow Adapter T4030856 and Bushing Adapter T4030857 must be purchased separately.

Operating Instructions
