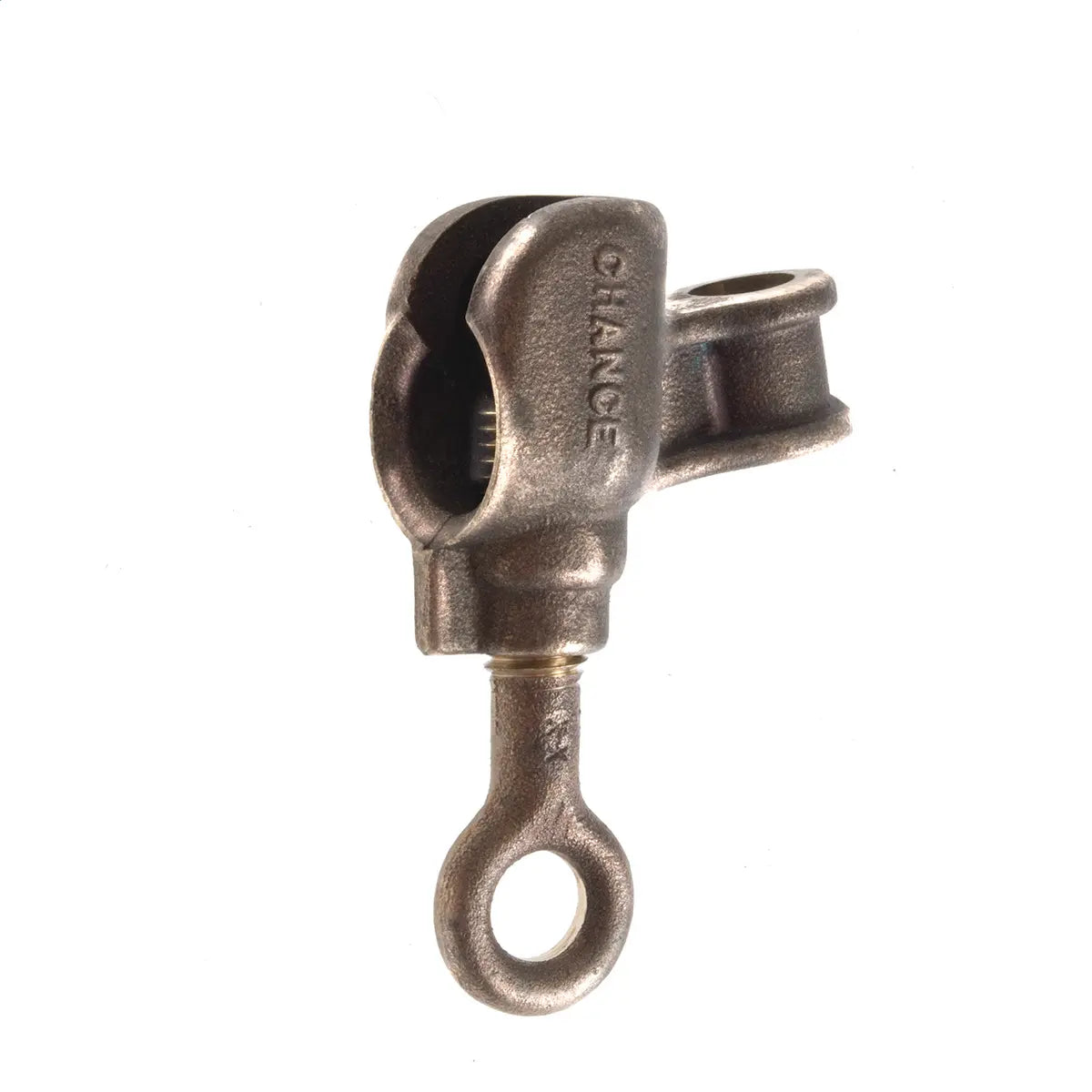

CHANCE Ground Clamp – Ball-Socket I-5 – 1″
CHANCE Ground Clamp – Ball-Socket I-5 – 1″
Ground Clamp for restricted-space applications and as a truck-grounding system, this compact design delivers a high-current rating usually associated with only large clamps. It applies to a wide range of switching equipment, including: Industrial metalclad gear, Substations — indoors and out, Distribution — overhead and underground. For trucks, a ball stud permanently mounts on each body. Two styles and two ball-stud lengths adapt to many applications. Bodies and eyescrews are a bronze alloy.
- Ball-stud ground clamp for 1″ (25mm) ball-studs
- Drilled for 5/8″-11 UNC threaded ferrule
- Rated 43kA for 15 cycles and 30kA for 30 cycles
CHANCE Ground Clamp – Ball-Socket I-5 – 1″
- Ball-stud ground clamp for 1″ (25mm) ball-studs
- Drilled for 5/8″-11 UNC threaded ferrule
- Rated 43kA for 15 cycles and 30kA for 30 cycles
- Eye-screw for use with grip-all clamp-sticks
