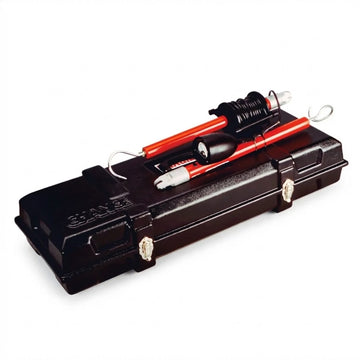

Chance- H18761 Phasing Tester with Hook Probes, Case and Manual (16kV)

Description:

Chance Phasing Testers easily determine phase relationships and approximate voltage, line-to-line or line-to-ground. Each tester consists of two fiberglass poles with end fittings threaded for interchangeable probes. The probe fittings couple with a high-impedance component encased in each pole. To complete the test circuit, a 22-foot length of insulated flexible cable stores on the reel affixed to one pole and connects to the voltmeter on the other pole. Simple to operate, the probes can be brought into contact with the conductors appropriate for the meter to read phase-to-phase or phase-to-ground voltage.

Features:

• Determine phase relationships and approximate voltage, line-to-line or line-to-ground
• Feature two fiberglass poles with end fittings threaded for interchangeable probes
• Probe fittings couple with a high-impedance component encased in each pole
• To complete test circuit, a 22 ft. length of insulated flexible cable stores on reel affixed to one pole and connects to voltmeter on other pole
• Simple to operate, tester poles first attach to two 6 ft. Epoxiglas® insulating universal handles (included in each kit for proper working clearances)
• Probes can be brought into contact with conductors appropriate for the meter to read phase-to-phase or phase-to-ground voltage

Single Range Units:

• For convenience on different systems, toggle on dual-range units can switch calibration between two scales on meter face
• Can improve readability for low-end values on Hi scale
• Switched to Lo range, those values deflect needle more to give more finite readings for secondary and DC hi-potting
• To check instrument before and after each use, test-point jack in front of meter accepts plug from Phasing Meter Tester

Specifications:
