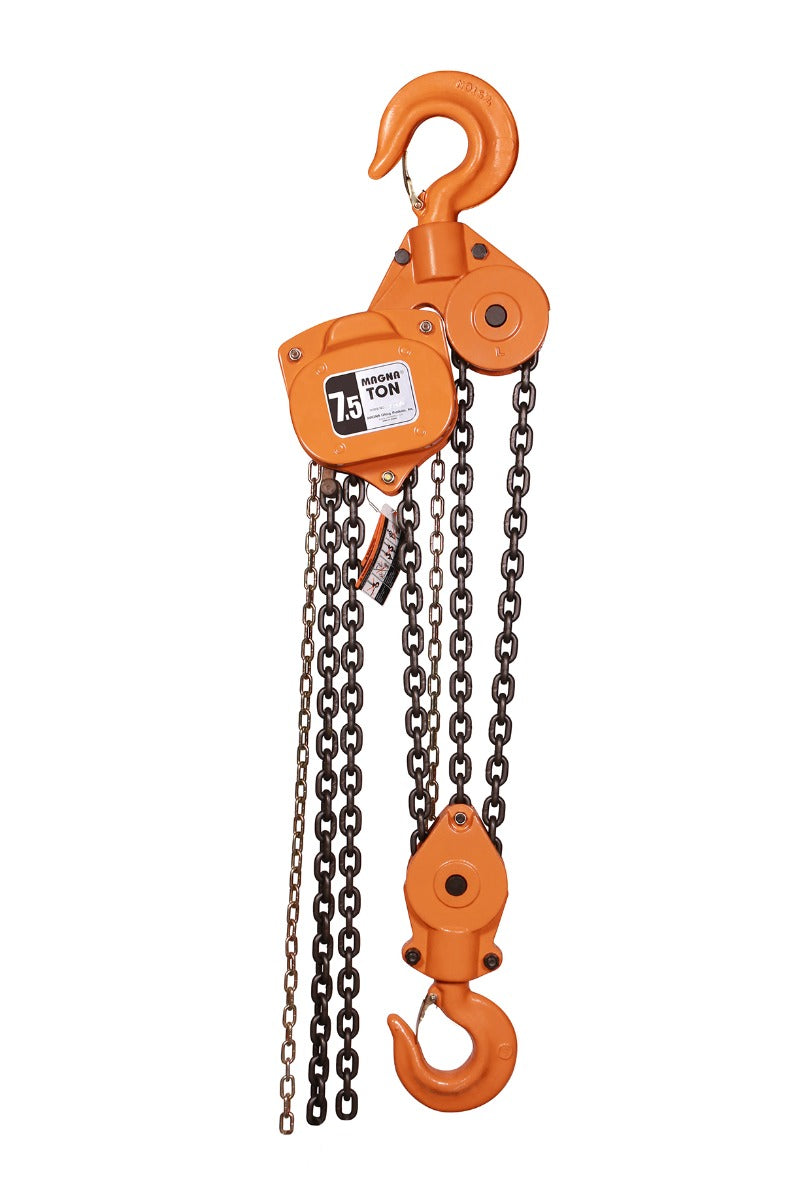

MAGNA Lifting Products 7.5 Ton Chain Hoist, 20 ft. Lift CH75020

For heavy infrastructure and construction requiring significant vertical travel, the MAGNA CH75020 delivers 7.5 Tons (16,500 lbs) of capacity with a 20-foot lift. This hoist is ideal for bridge work and heavy plant maintenance, utilizing a stable 3-fall Grade 100 chain system to handle massive loads safely at height.

The CH75020 features a durable steel housing and fully repairable design, ensuring long-term value. Factory lubricated for -49°F operation, it performs reliably in all weather conditions. The 20-foot chain length provides the reach necessary for deep lifts or high installations, backed by a 150% proof load test for maximum safety.

Features & Benefits

• Extreme High Reach: 20-foot lift for 16,500 lb loads.
• Grade 100 Chain: 3-fall configuration for stability.
• Rugged Build: Steel housing for heavy duty use.
• Service Friendly: Fully repairable architecture.
• Cold Capable: Works down to -45°C (-49°F).
• Safety Certified: 150% proof load tested.

Compatible Accessories: Lug Mount Attachment, Zinc Plated Load Chain, Slip Clutch, PTR750 (7.5 Ton Plain Trolley), GTR750 (7.5 Ton Geared Trolley), BC1000P/BC1000RE (10 Ton Beam Clamps), ULBC1000F/S (10 Ton Universal Beam Clamps)

Specifications

• Model Number: CH75020
• Working Load Limit (WLL): 7.5 Ton (16,500 lbs)
• Standard Lift: 20 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100
• Number of Falls: 3
• Pull to Lift Full Load: 90 lbs
• Headroom (Dimension C): 27.56 in.
• Hook Throat Opening (Dimension G): 1.81 in.
• Net Weight: 187.0 lbs
