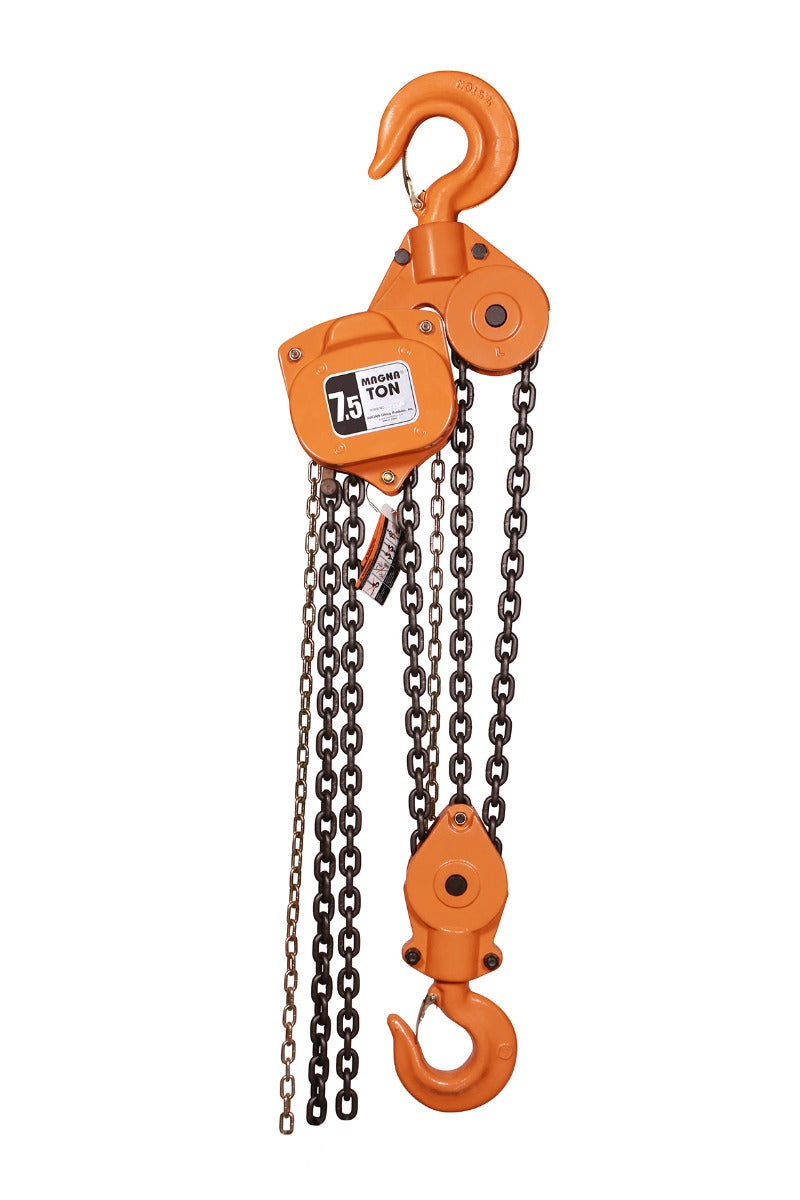

MAGNA Lifting Products 7.5 Ton Chain Hoist, 15 ft. Lift CH75015

For extreme lifting requirements in high-clearance areas, the MAGNA CH75015 offers 7.5 Tons (16,500 lbs) of capacity with a 15-foot lift. This hoist is engineered for heavy infrastructure projects, such as bridge maintenance and power plant upgrades, where massive loads must be lifted to significant heights. It employs a stable 3-fall Grade 100 chain system to manage the load securely.

The CH75015 is built for durability and serviceability, with a rugged steel chassis that can be fully disassembled for maintenance. Factory lubricated with -45°C grease, it performs reliably in all weather conditions. The 15-foot chain length provides the necessary reach for deep pits or high overhead beams, ensuring versatility on complex job sites.

Features & Benefits

• High Capacity Reach: 15-foot lift for 16,500 lb loads.
• Grade 100 Chain: 3-fall configuration for stability and strength.
• Rugged Build: Steel housing protects against impact and wear.
• Service Friendly: Fully repairable design extends service life.
• Cold Capable: Operates in temperatures down to -49°F.
• Safety Certified: 150% proof load tested for maximum safety.

Compatible Accessories: Lug Mount Attachment, Zinc Plated Load Chain, Slip Clutch, PTR750 (7.5 Ton Plain Trolley), GTR750 (7.5 Ton Geared Trolley), BC1000P/BC1000RE (10 Ton Beam Clamps), ULBC1000F/S (10 Ton Universal Beam Clamps)

Specifications

• Model Number: CH75015
• Working Load Limit (WLL): 7.5 Ton (16,500 lbs)
• Standard Lift: 15 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100
• Number of Falls: 3
• Pull to Lift Full Load: 90 lbs
• Headroom (Dimension C): 27.56 in.
• Hook Throat Opening (Dimension G): 1.81 in.
• Net Weight: 167.0 lbs
