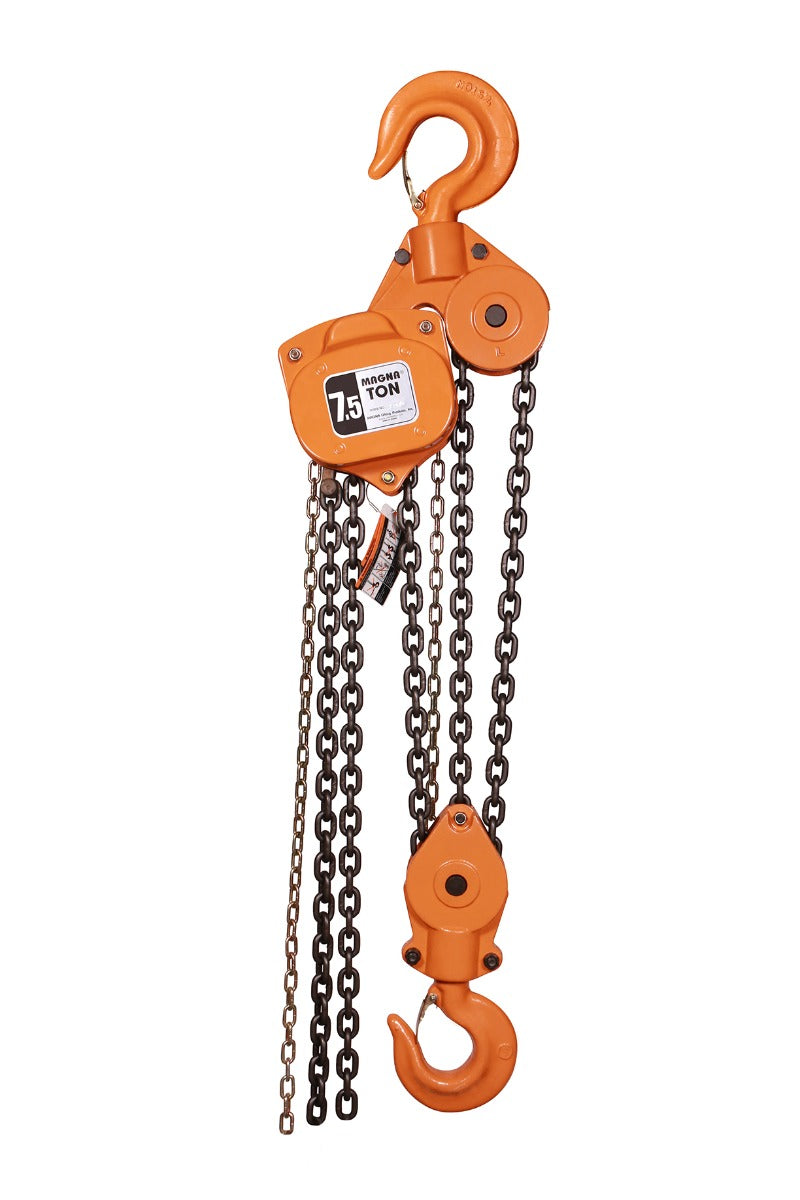

MAGNA Lifting Products 7.5 Ton Chain Hoist, 10 ft. Lift CH75010

The MAGNA CH75010 is designed for extreme lifting tasks where standard hoists fall short. Providing 7.5 Tons (16,500 lbs) of capacity, this manual hoist is essential for bridge construction, heavy manufacturing, and power utility work. Its 10-foot lift allows for precise positioning of massive loads, utilizing a stable 3-fall configuration of high-strength Grade 100 alloy chain to distribute the weight effectively.

Despite its massive capacity, the CH75010 is engineered for manageability and long service life. It features a stamped steel housing that resists impact and a fully serviceable design that allows for the replacement of wear parts like brake discs and pawls. The unit is factory tested to 150% of its working load limit, verifying its ability to withstand the immense stresses of heavy industrial rigging.

Features & Benefits

• Extreme Capacity: Safely manages loads up to 16,500 lbs (7.5 Tons).
• Grade 100 Alloy: Uses premium chain for maximum strength and durability.
• Stable Lifting: 3-fall chain configuration provides smooth, balanced lifting.
• Service Friendly: Completely repairable design reduces total cost of ownership.
• Cold Capable: Operational in extreme cold (-45°C/-49°F) environments.
• Certified Tough: Proof loaded to 24,750 lbs (150% WLL) to exceed safety codes.

Compatible Accessories: Lug Mount Attachment, Zinc Plated Load Chain, Slip Clutch, PTR750 (7.5 Ton Plain Trolley), GTR750 (7.5 Ton Geared Trolley), BC1000P/BC1000RE (10 Ton Beam Clamps), ULBC1000F/S (10 Ton Universal Beam Clamps)

Specifications

• Model Number: CH75010
• Working Load Limit (WLL): 7.5 Ton (16,500 lbs)
• Standard Lift: 10 ft.
• Load Chain Dimensions: 9.0 x 27.0 mm
• Load Chain Grade: Grade 100
• Number of Falls: 3
• Pull to Lift Full Load: 90 lbs
• Headroom (Dimension C): 27.56 in.
• Hook Throat Opening (Dimension G): 1.81 in.
• Net Weight: 119.0 lbs
